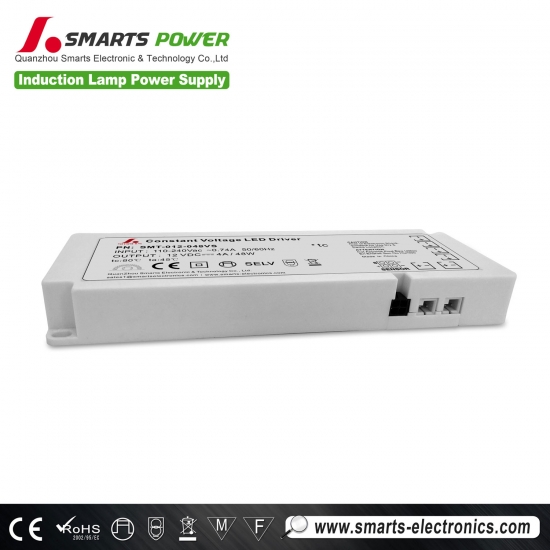

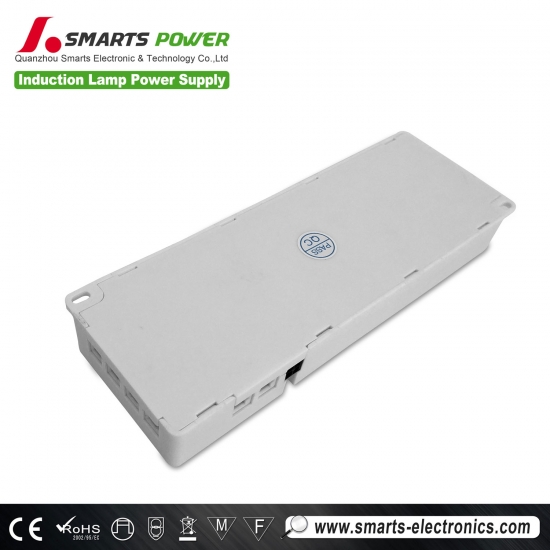

240vac compact size 12vdc lamp transformer 48w 50w
The 12v lamp transformer are useful for Highlighting a dedication to quality and integrity, the Sunlite product and 5000k super white LED lamps.
Specification
SPECIFICAION
MODEL
SMT-012-048VS
OUTPUT
DC VOLTAGE
12V
RATED CURRENT
4A
CURRENT RANGE
0-3A
RATED POWER
48W
RIPPLE&NOISE(max)
＜150mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
100-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
>84%
AC CURRENT(Typ.)
0.2A/220VAC
PROTECTION
Short circuit
Protection type:Hiccpe mode,recovers automatically after condition is removed
Overload
4.5A
ENVIRONMENT
WORKING TEMP.
-10~+40℃ (Refer to output load derating curve)
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;SAA approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
NOTE
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 |
 |
 |
 |

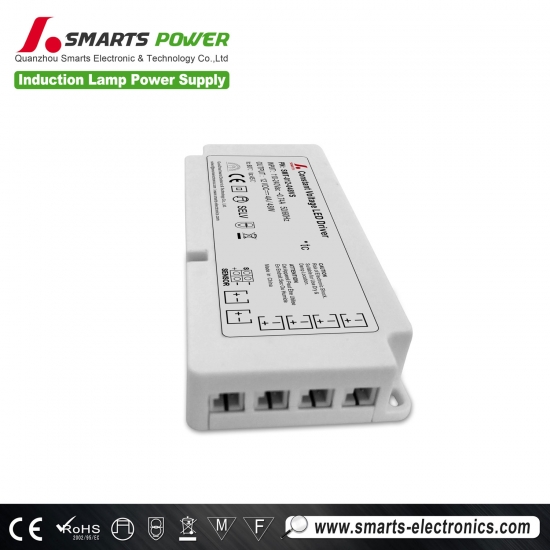

Mechanical Specification

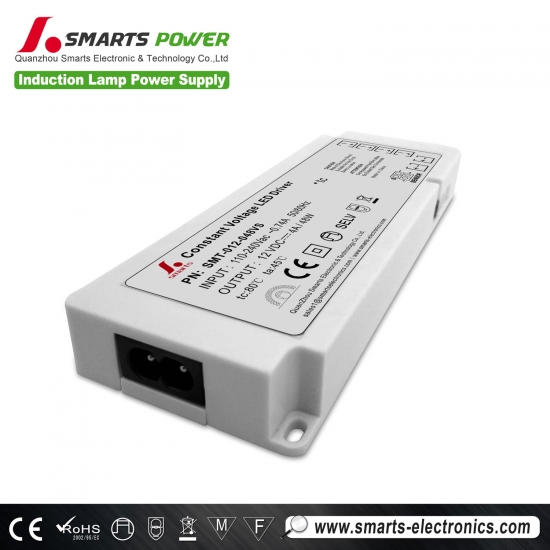

① AC socket:DB-8
② Sensor switch socket:5557-3.0-2*2AW
③ DC socket:TCJ8H 6PCS
Cable Model of input : 2 pins plug power cord (VDE 18AWG wires)
output cord suggestion: H03VV-F 2*0.75mm2(red, black)

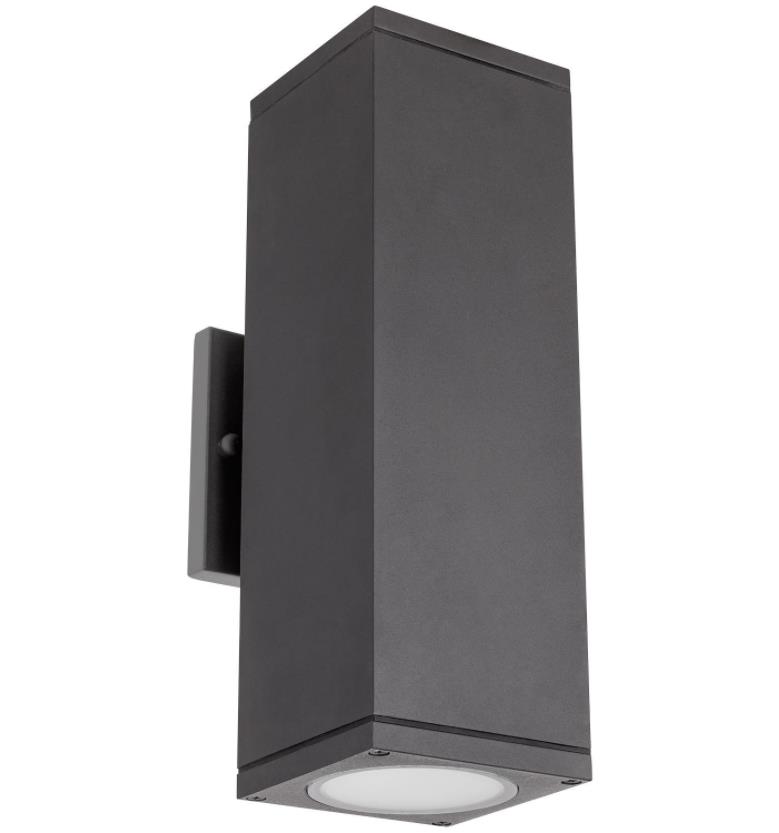

Compatible LED UP and DOWN square light Type
With a 24v dc led transformer and weather-proof aluminum body and built-in 50,000 hour life LEDs this fixture is designed for years of efficient and maintenance free service. It puts out a bright 2100 lumens of light and only uses 30 watts of electricity. 30w.
Related Products
|

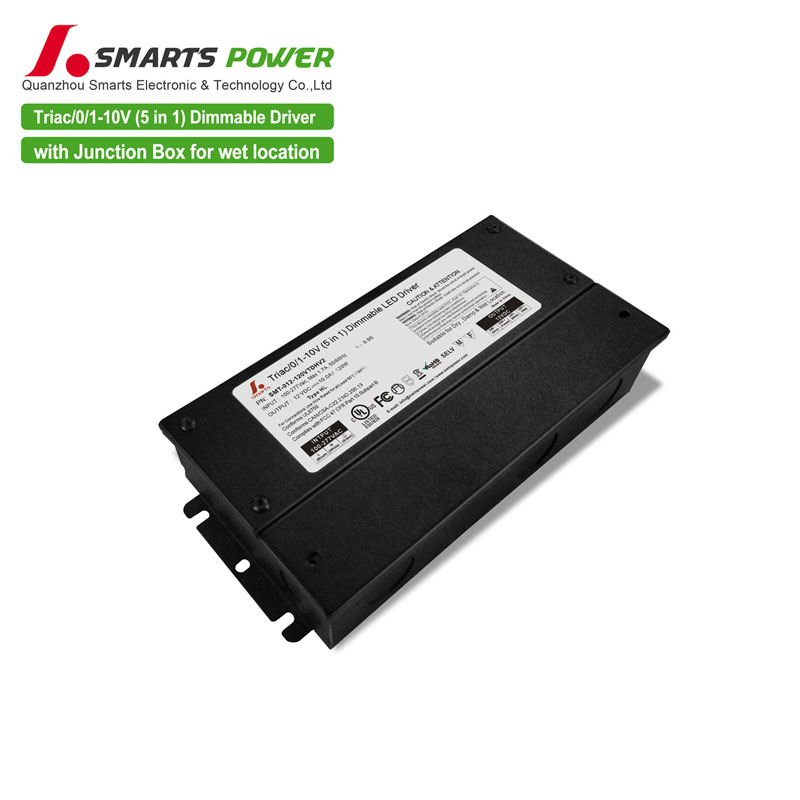

Mode：SMT-012-120VTDHV2 |
