3 years warranty 12v 2a led power supply for led lighting
Based on our research, we create a list of high performing 12v 2a power supply, they are IP20 rated and 3 years warranty, if you are looking for a differently designed, great features and economical pricing for your URPOWER Motion Sensor LED Closet Light.
Specification
SPECIFICAION
MODEL
SMT-012-024VS
OUTPUT
DC VOLTAGE
12V
RATED CURRENT
2A
CURRENT RANGE
0-2A
RATED POWER
24W
RIPPLE&NOISE(max)
＜150mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
100-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
>84%
AC CURRENT(Typ.)
0.2A/220VAC
PROTECTION
Short circuit
Protection type:Hiccpe mode,recovers automatically after condition is removed
Overload
2.5A
ENVIRONMENT
WORKING TEMP.
-10~+40℃ (Refer to output load derating curve)
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;SAA approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
NOTE
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 |
 |
 |
 |
Mechanical Specification
① AC socket:DB-8
② Sensor switch socket:5557-3.0-2*2AW
③ DC socket:TCJ8H 6PCS
Cable Model of input : 2 pins plug power cord (VDE 18AWG wires)
output cord suggestion: H03VV-F 2*0.75mm2(red, black)

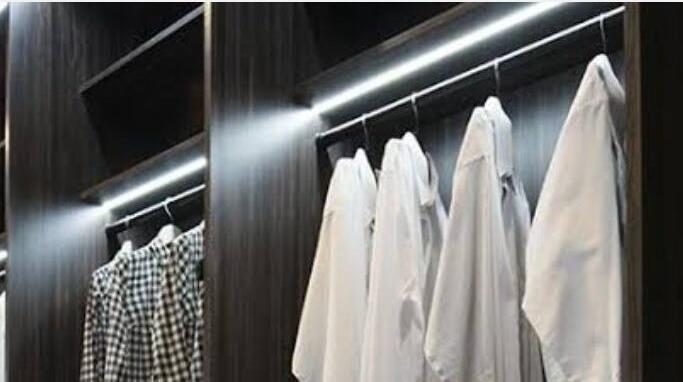

Compatible LED closet lights Type
There are numerous variety of closet lights. But we are making for the best sensor led power supply 12vdc 2a for LED closet light that is long-lasting, effective and easy to install.
We carried out several tests and also consulted several experts. Based on our research, we create a list of seven high performing closet light.
Related Products
|

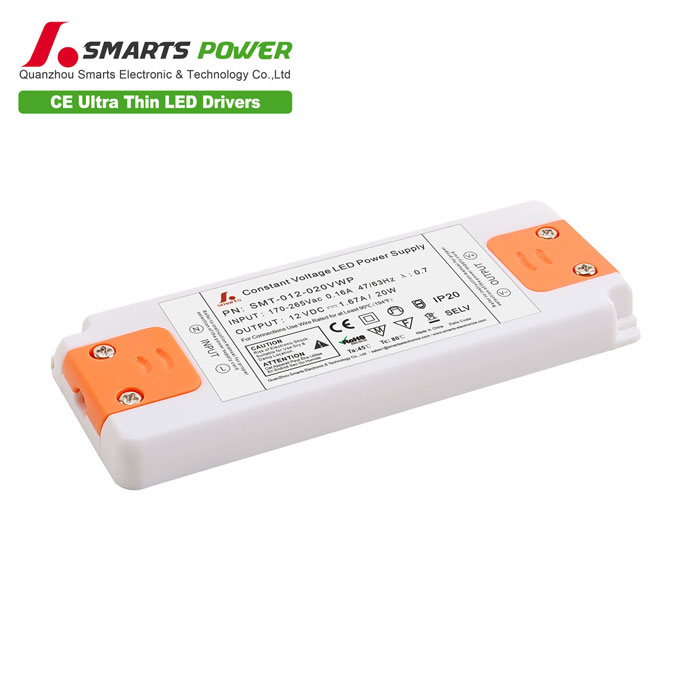

Mode：SMT-012-020VWP |
