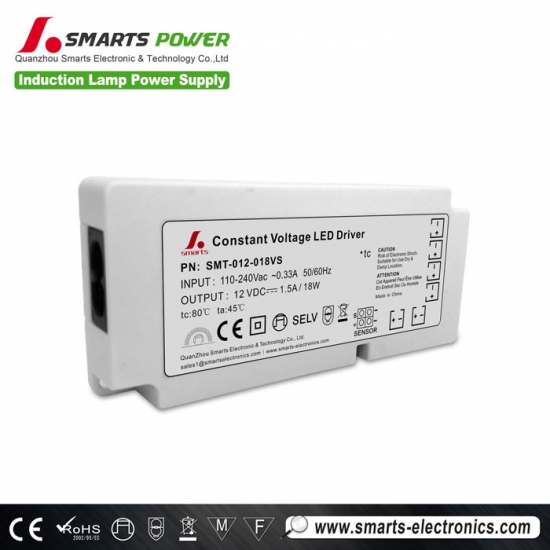

CE SAA ROHS listed 12vdc 18w 20w led driver for led cabinet lighting
We are focusing on various of power driver for led ban easily to be directed wired with brilliantevolution small watts LED puck lights.
Specification
SPECIFICAION
MODEL
SMT-012-018VS
OUTPUT
DC VOLTAGE
12V
RATED CURRENT
1.5A
CURRENT RANGE
0-1.5A
RATED POWER
18W
RIPPLE&NOISE(max)
＜150mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
100-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
>84%
AC CURRENT(Typ.)
0.18A/220VAC
PROTECTION
Short circuit
Protection type:Hiccpe mode,recovers automatically after condition is removed
Overload
2A
ENVIRONMENT
WORKING TEMP.
-10~+40℃ (Refer to output load derating curve)
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;SAA approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
NOTE
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 |
 |
 |
 |
Mechanical Specification

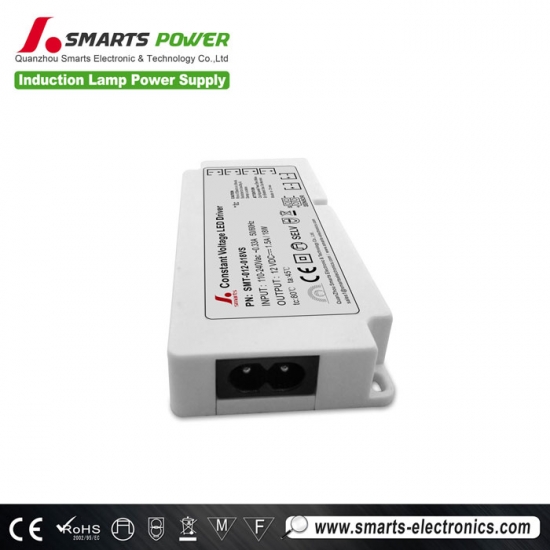

① AC socket:DB-8

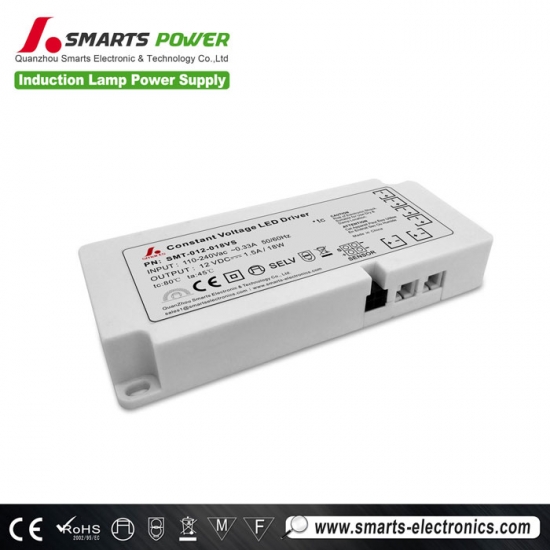

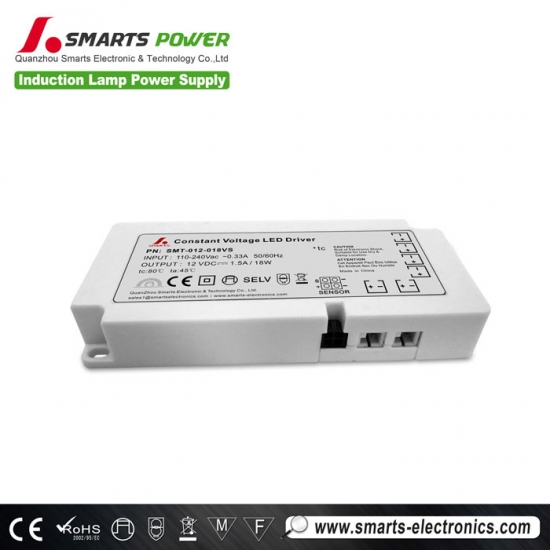

② Sensor switch socket:5557-3.0-2*2AW

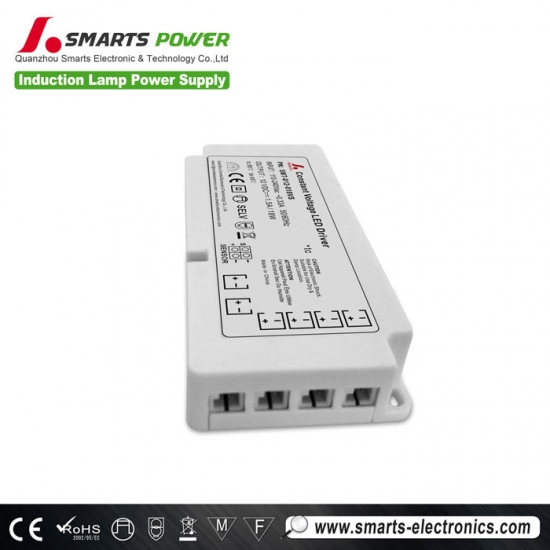

③ DC socket:TCJ8H 6PCS
Cable Model of input : 2 pins plug power cord (VDE 18AWG wires)
output cord suggestion: H03VV-F 2*0.75mm2(red, black)

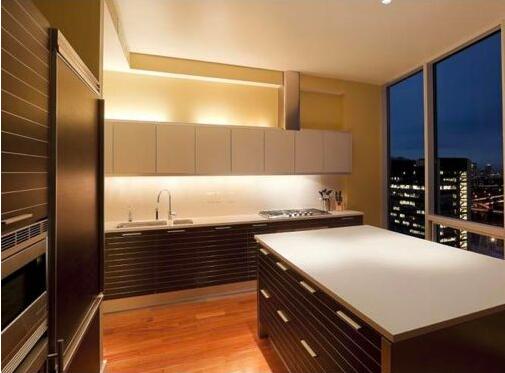

Compatible LED lights Type
Our compact led driver are widely used in the field of RAB Lighting 18w LED cabinet lights and make your home make colorful .
Related Products
|

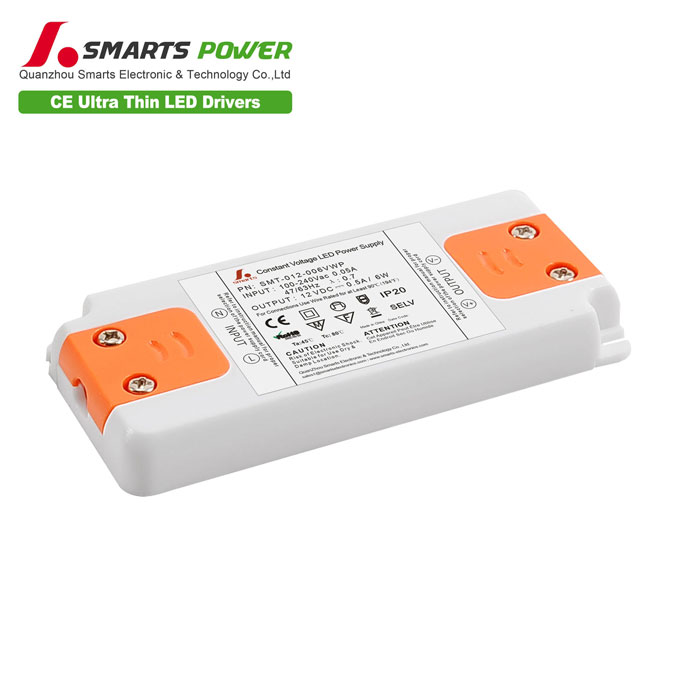

Mode：SMT-012-006VWP |
