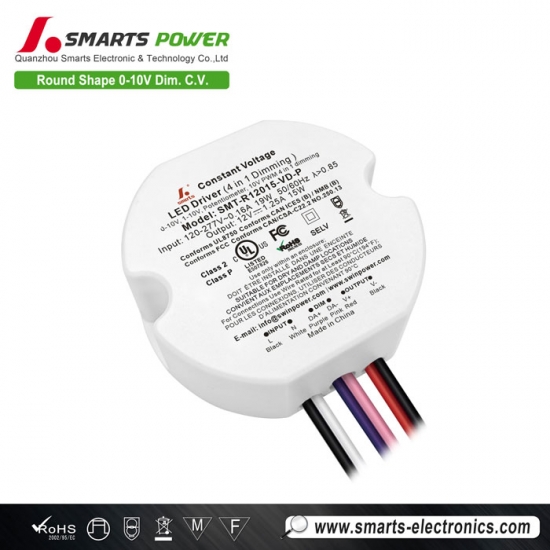

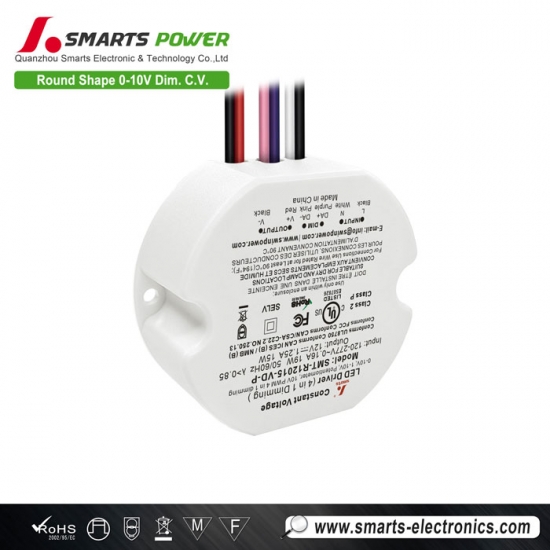

120-277vac Round Shape 0 10v dimmable constant voltage led driver 12v/24v 15w
Compact 15W 0-10V Dimming Constant Voltage LED Driver. It offers a smooth, stable, and flicker-free dimming range of 0–100%, features comprehensive multi-level protection against short circuits, overheating, and overloads, and complies with global lighting safety regulations.
Specification
| Model | SMT-R12015-VD-P | SMT-R24015-VD-P | SMT-R48015-VD-P | |
| Certificate | UL pending / ROHS / SELV | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Rated current | 1.25A | 0.625A | 0.31A | |
| Rated power | 15W | |||
| Voltage Tolerance | ±0.5V | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor @ full load | ≥0.98@120VAC ≥0.9@277VAC | |||
| THD(Typ.) @ full load | ≤10%@120VAC ≤20%@277VAC | |||
| Efficiency @ full load |
≥73%@120VAC ≥76%@277VAC |
≥77%@120VAC ≥80%@277VAC |
≥79%@120VAC ≥81%@277VAC |
|
| AC Current (Max.) | 0.18A | |||
| Inrush Current (Typ.) | 1.62A, 42us @50%Ipeak 120VAC 6.72A, 36us @50%Ipeak 277VAC | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature |
Ambient temperature over 55℃±5℃ , output reduce to 50%; Ambient temperature over 60℃±5℃, output off; When the temperature is reduced to 45℃±5℃ the output returns to 100%. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Case Temperature (Tc) | 90℃ | |||
| Working Humidity | 20 - 90%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 2G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | FCC 47 CFR Part 15, Subpart B | |||
| Surge Immunity Test | AC Power Line: Differential Mode 1KV | |||
| Others | Net Weight | 0.103KG | ||
| Dimension | 54*48.2*24mm(Φ*W*H) | |||
| Packing | 380*290*155mm 100pcs/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load for 120VAC and 25℃of ambient temperature. | |||
| 2. Derated output is required at low input voltage to ensure long service life. | ||||
 |
 |
 |
 |

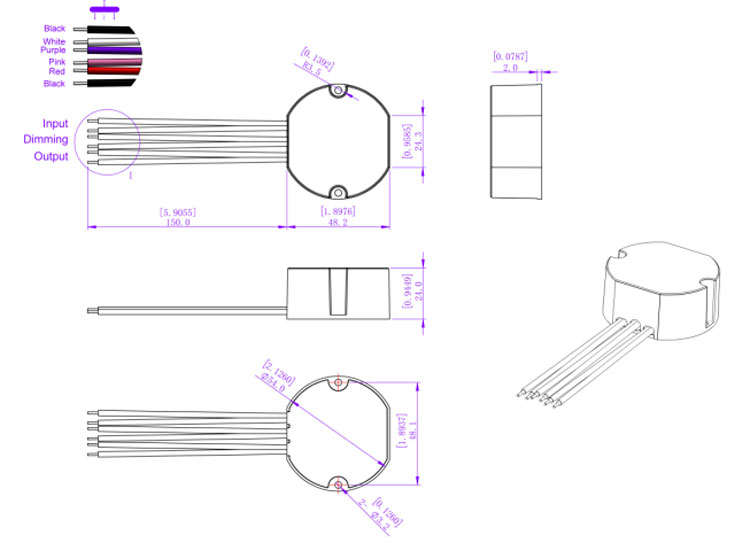

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac, the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| B type | 10A | 65 |
| 13A | 84 | |
| 16A | 104 | |
| 20A | 130 | |
| When the input voltage is 277Vac, the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| B type | 10A | 123 |
| 13A | 160 | |
| 16A | 196 | |
| 20A | 246 | |
| When the input voltage is 120Vac, the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 65 |
| 13A | 84 | |
| 16A | 104 | |
| 20A | 130 | |
| When the input voltage is 277Vac, the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 150 |
| 13A | 194 | |
| 16A | 239 | |
| 20A | 299 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 °C.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| American wire gauge | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DMX+) Brown(DMX-) Pink(GND) (3*22AWG) |

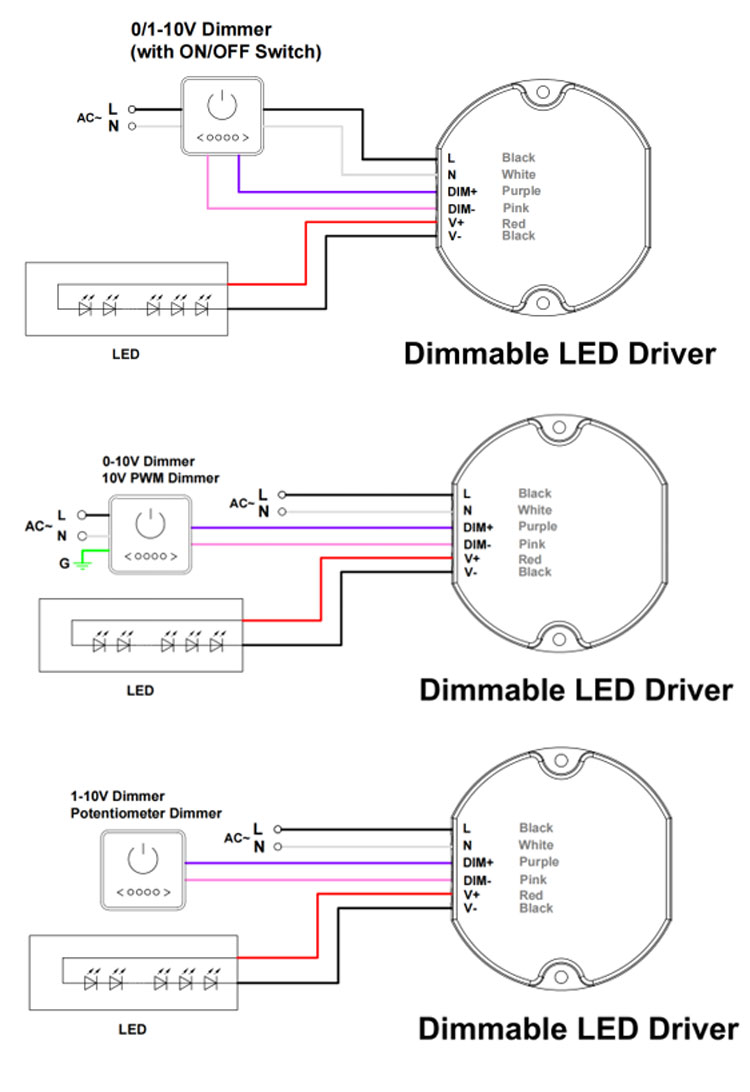

Dimming Operation
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming

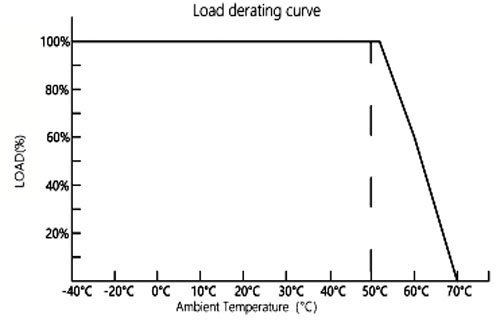

Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
