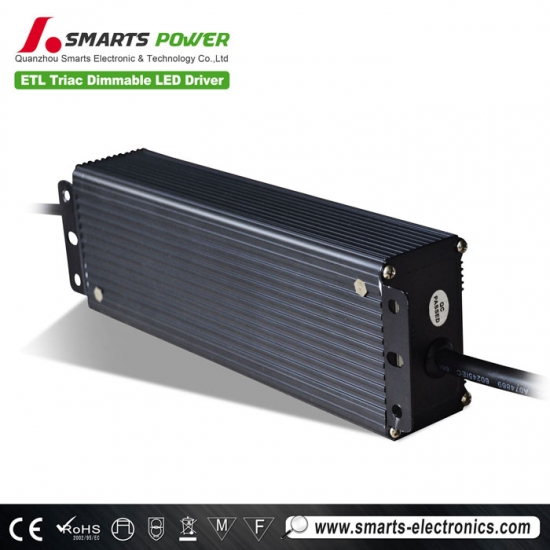

12v 10a constant voltage led driver with triac dimming controller
Specifications |
|
|
|
model |
SMT-012-120VT |
SMT-024-120VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
10.00A |
5.00A |
|
|
Rated power |
120W |
||
|
Input |
Voltage Range |
100~130V AC/170～265V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.8/110V,PF≧0.81/170V,PF≧0.82/220V,PF≧0.82/265V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
|
|
AC Current（Typ.） |
0.66A/110VAC 0.63A/170VAC 0.57A/220VAC 0.52A/265VAC |
||
|
Leakage current |
﹤0.27mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦140VAC(100~130V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
1.3Kg |
|
|
Size |
230*70*46mm（L*W*H） |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

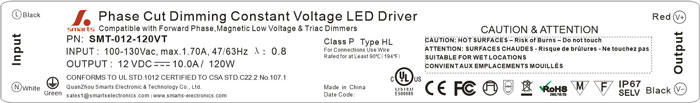

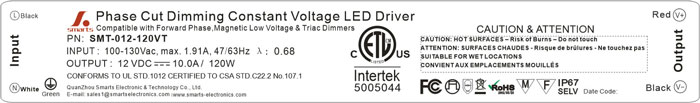

| Label |
|
||
 |
 |
 |
 |
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
Safety
-
Safety Standards : IEC 61347 –2–11 , EN55015,EN61000
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
