Non-dimmable LED Driver

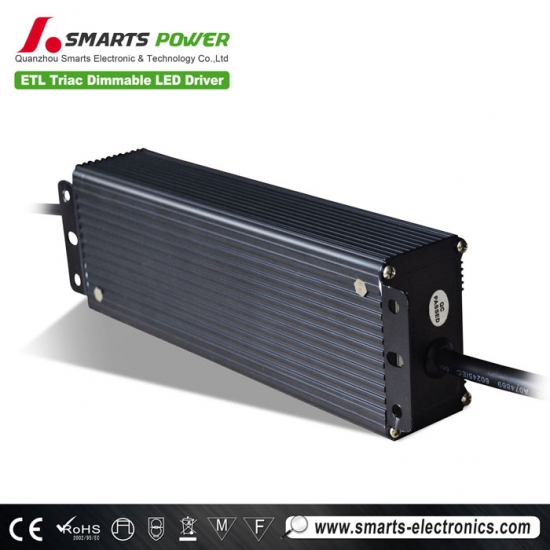

ETL FCC CE listed 24v 120w Triac dimmable led driver for led strip light

SMT-024-120VT is an excellent quality ETL Listed 120W triac dimmable power supply. Compatible with most AC wall dimmer including Lutron, Leviton and most other household dimmers.
  • item no.:

    SMT-024-120VT
  • brand:

    SMARTS
  • Input Voltage:

    100-130/170-265VAC
  • Output Voltage:

    12v / 24v
  • Output Current:

    5A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL FCC CE Rohs
  • Warranty:

    3 Years
inquiry now download
product details

ETL FCC CE listed 24v 120w Triac dimmable led driver for led strip light



SMT-024-120VT is an excellent quality ETL Listed 10A 120W triac dimmable power supply. Compatible with most AC wall dimmer including Lutron, Leviton and most other household dimmers. Can be used for many LED lights and other applications. Requires no minimum load and it is very quite without any buzz or humming noise.


 Specification of 120w dimmable led driver


Output Frequency: 50/60HZ

Output power: 120w
Output Voltage: 24V
Input Voltage: 100V-130V /170-265Vac
Size dimension: 9" x 2.75" x 1.75"
Waterproof can be use for indoor or outdoor location.



model

SMT-012-120VT

SMT-024-120VT

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

10.00A

5.00A

Rated power

120W

Input

Voltage Range

100~130V AC/170265V AC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.8/110V,PF≧0.81/170V,PF≧0.82/220V,PF≧0.82/265V

Full Load EfficiencyTyp.

>83%

>83%

AC CurrentTyp.

0.66A/110VAC  0.63A/170VAC  0.57A/220VAC  0.52A/265VAC

Leakage current

0.27mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

140VAC(100~130V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level surge4KV

Others

Weight

1.3Kg

Size

230*70*46mmL*W*H

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

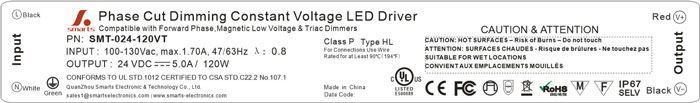

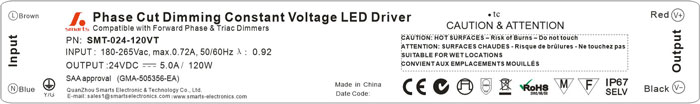

  Label

Triac dimmable led driver

24v 120w Triac dimmable led driver

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Warning 120w led driver


Do not overload. Overload will cause the AC adapter to fail. We are not responsible for misuse of power supply.

It is recommend not to exceed 80% . Please calculate your load before connecting the power.

 Delivery information for 24v 120w led driver


Packing

--Packing Way: 1 piece with one inner carton, 10 inner carton with one outer carton

--1 Piece ETL Listed 24V DC 10A dimmable Power Supply
--1 Piece Junction box optional



Payment
--Western Union, Paypal is the first option for samples payment.
--T/T is for regular order payment. (30% deposit in advance, 70% before shipment)



Shipping

--By air
Your order will be delivered by DHL, Fedex, UPS, TNT or EMS, It's up to you to choose your favorite express company. It normally takes 3~7 days to arrive at your destination.



--By sea
Your regular orders will be shipped by vessel if total volume is large.
Shipments will be operated under FOB, EXW tradeterms
