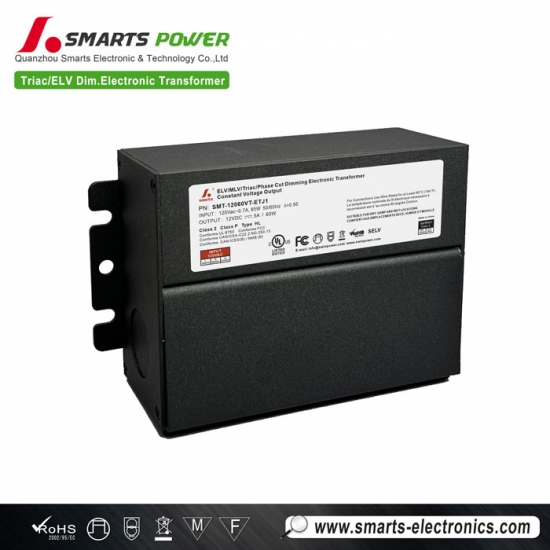

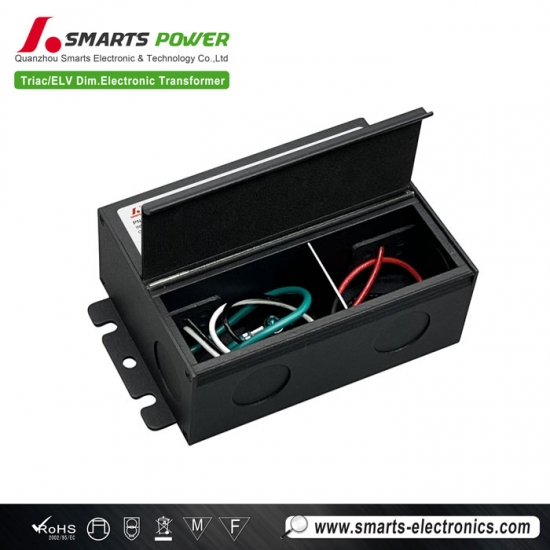

12V 60W LED Strip Power Supply Triac Dimmable Transformer for led lighting
The smart LED driver supports multiple dimming protocols—including Triac and ELV—enabling smooth, flicker-free brightness control. Its dual-mode constant voltage/constant current design and wide input voltage range ensure easy compatibility with a wide variety of LED loads.
Specification
| Model Number | SMT-12060VT-ETJ1 | SMT-24060VT-ETJ1 |
| OUTPUT | ||
| Rated Power | 60W | 60W |
| Rated Voltage | 12V | 24V |
| Rated Current | 5.0A | 2.5A |
| Voltage Tolerance | ±1V | ±1.5V |
| INPUT | ||
| Voltage Range | 120V | |
| Frequency Range | 50 / 60Hz | |
| Power Factor(Typ.) | >0.95 | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Efficiency(Typ.) | 88%@120VAC | |
| AC Current(Typ.) | 0.7A | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| ENVIRONMENT | ||
| Working Temp. | Tc =-40 ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750; CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| EMC Immunity | FCC/ICES do not request this test. | |
| EMC Emission | CFR47 FCC Part 15 Subpart B:2020; ICES-005 Issue 5 December 2018; ANSI C63.4a-2017 | |
| OTHERS | ||
| Weight | 0.17KG | |
| Dimension | See Mechanical Specification | |
| Packing | 28*21.5*19.5 cm (50PCS/CTN ) | |
 |
 |
 |
 |

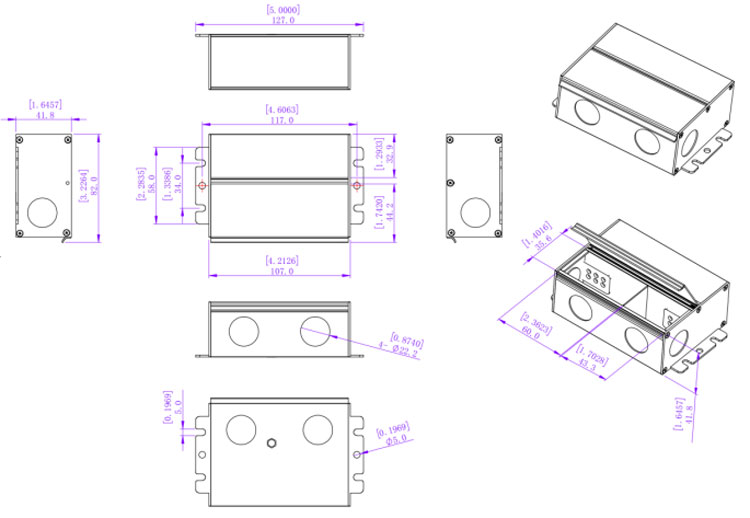

Mechanical Specification
1. Input with terminals Live Black(L) and Neutral White (N) wires to be connected AC;
2. Output LED SEC output Positive Red(LED+) , output negative Black(LED-). Connected to LED light.
Warm tips:
1. Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
2. Any other requests for, we can customize.

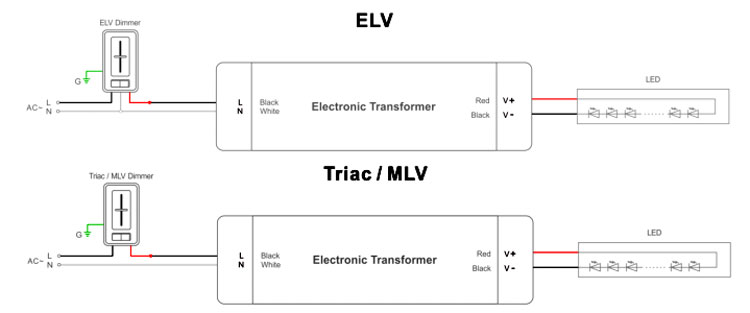

Dimming Operation
■ Instruction:
1. Confirm if the rated input voltage of the power supply is within the range of market voltage before use.
2. Pay attention to the distinction between the input and output lines of the power supply to avoid power damage or unnecessary safety accidents caused by connecting the reverse line.
3. The power supply cannot be stacked for installation (placement), and the installation distance between the power supply and the power supply should be greater than 10cm. Multiple power supplies should be installed in a narrow space, and the environmental temperature should be less than 55 ℃ during use; For example, distribution boxes, etc.
4. In order to extend the service life of the power supply, the power supply should be installed in an environment that is conducive to heat dissipation as much as possible;
5. As the ambient temperature increases, the power used by the power supply gradually decreases, and the lifespan of the power supply also gradually shortens.
6. Do not use under abnormal loads: Overloading can cause damage to the power supply, and extremely light loads can cause the power supply to malfunction.
7. To ensure safety and reduce interference, please ensure that the grounding wire is reliably grounded
8. If the LED driver do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phone call: 0086-595-27256889
Related Products

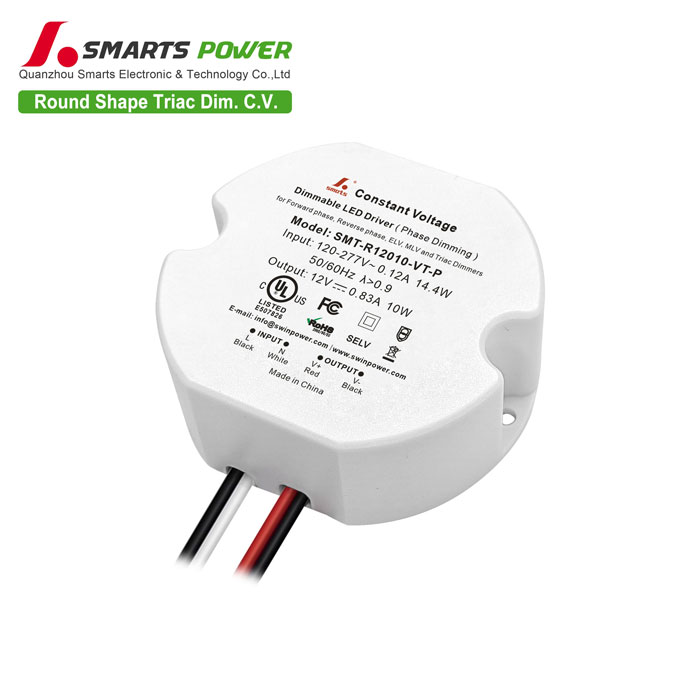

 This TRIAC-dimmable LED power supply features a lightweight plastic housing and a constant-voltage output mode precisely matched to LED load characteristics. Its compact, slim profile supports quick installation in standard junction boxes, allowing for seamless integration into existing TRIAC dimming systems without additional wiring.
