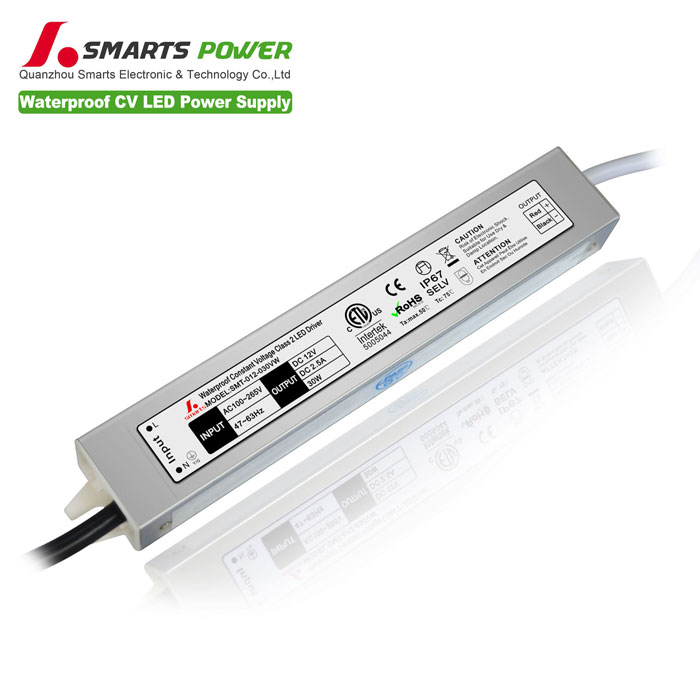

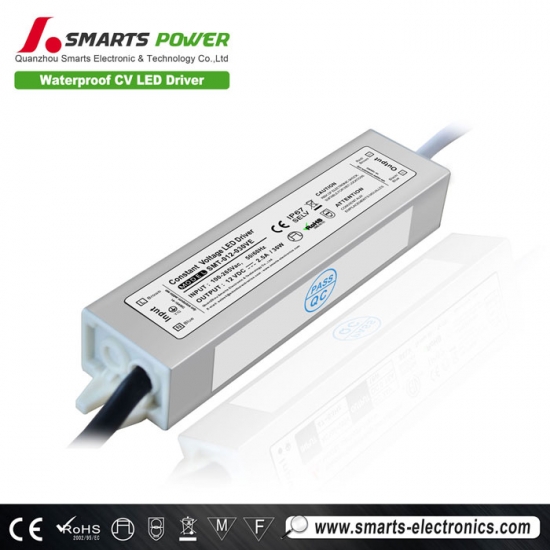

LVD approval 30w ac dc led power supply IP67 led screen
ac dc power supply 30w, 100-265vac constant voltage non dimmable LED driver, with 12v, 24v, output voltage, The 30W led driver could work with Batuled PANEL LED 20W, 2 years warranty provided.
Specification
| SPECIFICAION | |||
| MODEL | SMT-012-030VE | SMT-024-030VE | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 2.5A | 1.25A | |
| CURRENT RANGE | 0-2.5A | 0-1.25A | |
| RATED POWER | 30W | 30W | |
| RIPPLE&NOISE(max) | <400mV | ||
| VOLTAGE TOLERANCE | ±0.5V | ||
| INPUT | VOLTAGE RANGE | 100-265VAC | |
| FREQUENCY RANGE | 47-63Hz | ||
| POWER FACTOR(Typ.) | no PFC | ||
| EFFICIENCY(Typ.) | 》86% | ||
| AC CURRENT(Typ.) | 0.3A/220VAC | ||
| PROTECTION | Short circuit | Hiccpe mode,recovers automatically after condition is removed | |
| Overload | 3.3A | 1.8A | |
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||
| STORAGE TEMP | -40~+80℃ | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | |||
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||
 |
 |
 |
 |

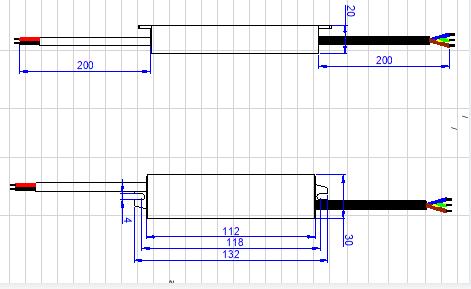

Mechanical Specification
Derating Curve
Application

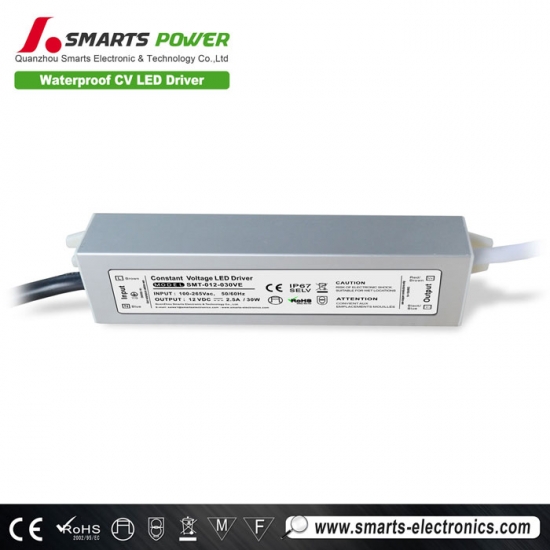

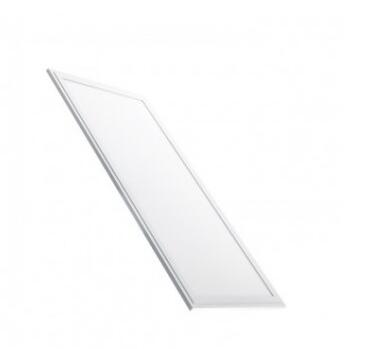

SMT-012-030VE is 12v 30w output non-dimmable ip67 led power supply, these constant voltage power supplies are not compatible with AC input triac dimmers, but it can suit for Batuled PANEL LED 6500K 100-240v, indoor and ourdoor project use.
