Non-dimmable LED Driver

277v ip67 waterproof 24v 150W 0-10V dimmable led power supply



CE  Class P  Type HL  UL/cUL  RoHS, FCC listing input voltage 110-277v ac to dc single output 24v 150W SELV 0-10v dimmable led power supply, working voltage working mode, 255*80*53mm(L*W*H)dimension, compliance to worldwide safety regulations for lighting.



  • item no.:

    SMT-024-150V DH
  • lead time:

    7 working days for samples order, 12 wor
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    EXW
  • market price:

    $46
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    24VDC
  • Output Current:

    6.25A
  • Working Mode:

    Constant Voltage
  • Certification:

    ul cul fcc rohs
  • Warranty:

    5 years
inquiry now
product details


277v ip67 waterproof 24v 150W 0-10V dimmable led power supply




High efficiency, high PFC, 5 years warranty 24volt 6.25a 150 watt 0-10 dimming led power supply, compatible with trailing and leading dimmer, such Lutron, Leviton dimmer, suitable well for commercial LED lighting and moving sign applications.



Specification


Model

SMT-012-150V  DH

SMT-024-150V  DH

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V



Rated current

012.5A

06.25A



Rated power

150W

Input

Voltage Range

100-277VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF0.96/110V / PF0.96/220V / PF0.98/277V



Full Load EfficiencyTyp.

>91%(110V) / >95%(277V)

>90%(120V) / >92%(277V)



AC CurrentTyp.

1.43A(120V) / 0.93A(277V)

1.39A(120V) / 0.90A(277V)



Leakage current

0.8mA/120VAC / 0.7mA/220VAC / 0.7mA/277VAC

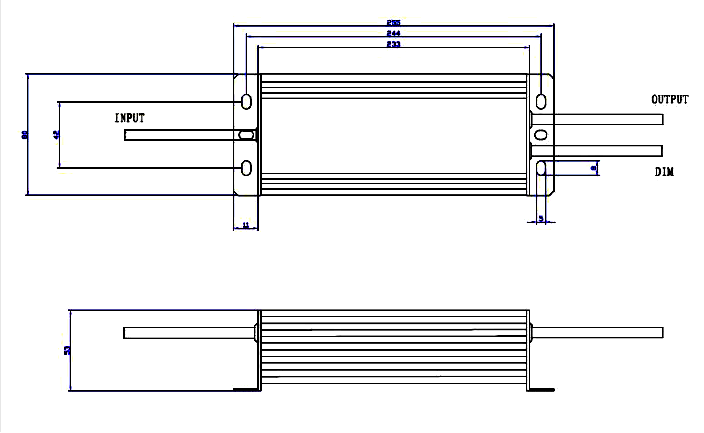

Mechanical Specification


0-10v dimming led power supply




※Input Rubber H03VV-F 3G *0.75the green/yellow cable connect with (FG)Brown with AC (L),Blue with AC(N)

※Signal Rubber H03VV-F 2G*0.75Blue isDIM+,White isDIM-

※Output Rubber H03VV-F 2G*0.75Red is outputV+, Black is outputV-




Protection

Short CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage: 330VAC

Over temperature:100±10 shut down o/p voltage, re-power on to recover
