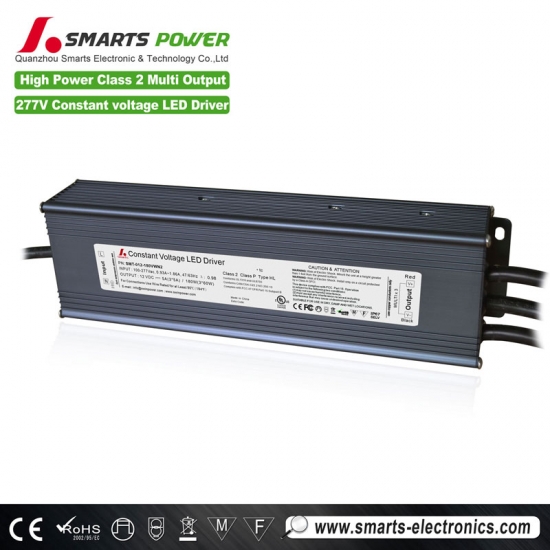

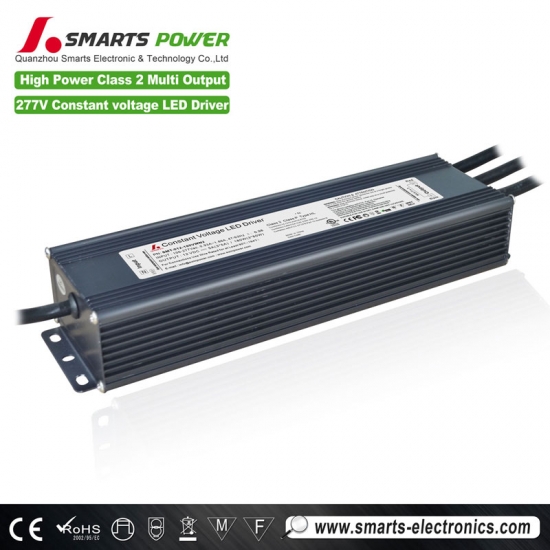

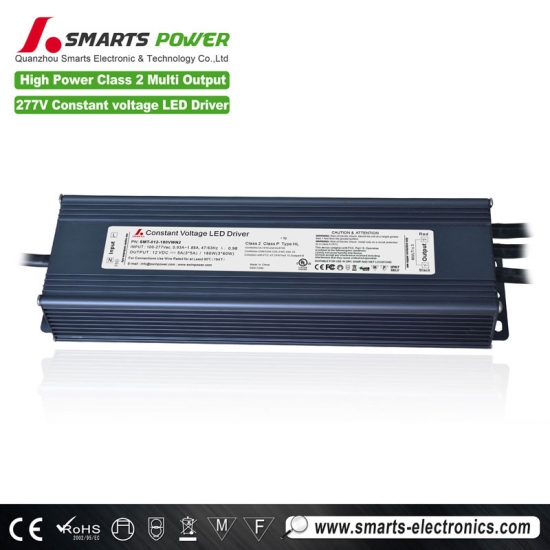

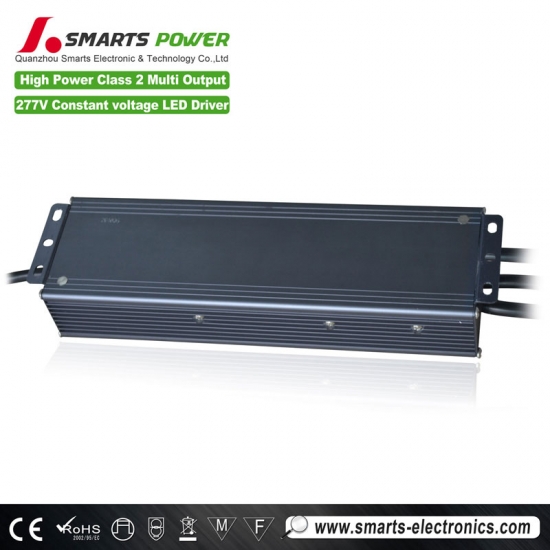

Non-dimmable LED Driver

277vac waterproof 12v 24v transformer Class 2 downlight

Smarts Class 2 180w led lamp transformer which is IP67 waterpprof version, can use for house of lights  downlights 3K project. UL/Class 2 certificated.
  • item no.:

    SMT-012-180VWN2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    3*5A
  • Working Mode:

    constant voltage
  • Certification:

    CE,cUL/UL, FCC,RoHS,cla ss 2,class P, type HL
  • Warranty:

    7 years warranty
inquiry now
product details

277vac waterproof 12v 24v transformer Class 2 downlight

Smarts waterproof 12v transformer 180w high power Class 2 has 3 output, could drive house of lights Ceiling Pendants 3LT each 60w output power well.


 Specification



model

SMT-012-180VWN2

SMT-024-192VWN2

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

15.0A (3*5A)

8.0A (2*4A)

Rated power

180W

192W

Voltage Tolerance

±0.5V

±0.5V

Load Regulation

±1%



±1%



Voltage Regulation

±0.5%

±0.5%

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.99@120VAC  0.94@277VAC

0.99@120VAC  0.94@277VAC

THD(Typ.)@ full load

<20%

<20%

Efficiency(Typ.)@ full load

87%@120V   89%@277VAC

79%

88%@120V   90%@277VAC



AC Current(Max.)

2.2A@100VAC

2.3A@100VAC

Inrush Current (Typ.)

19A ,50%,1.3ms @120VAC ;  38A,50%,960us @277VAC

12.4A (twidth=430us) @277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Net Weight

1.90Kg

Size

276*78*47mm (L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

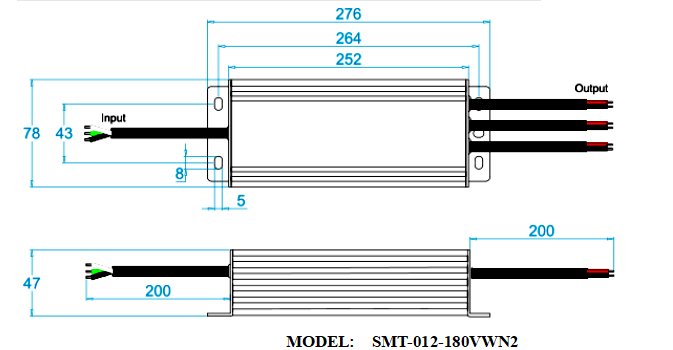

 Mechanical Specification


12v downlight transformer

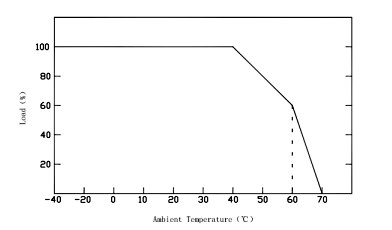

 Derating Curve



12 volt LED strip transformer

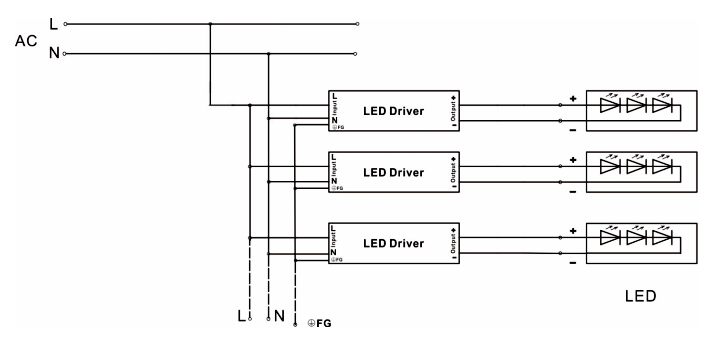

 Connecting Diagram


12 volt LED strip transformer

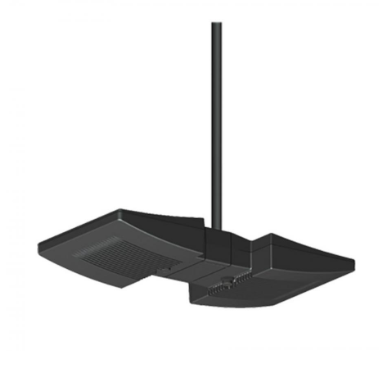

 Application


SMT-012-180VWN2 led power transformer could workable for house of lights LED PENDANT WARM LED with no flicking.  Also provide you 7 years warranty.

waterproof 12v transformer
