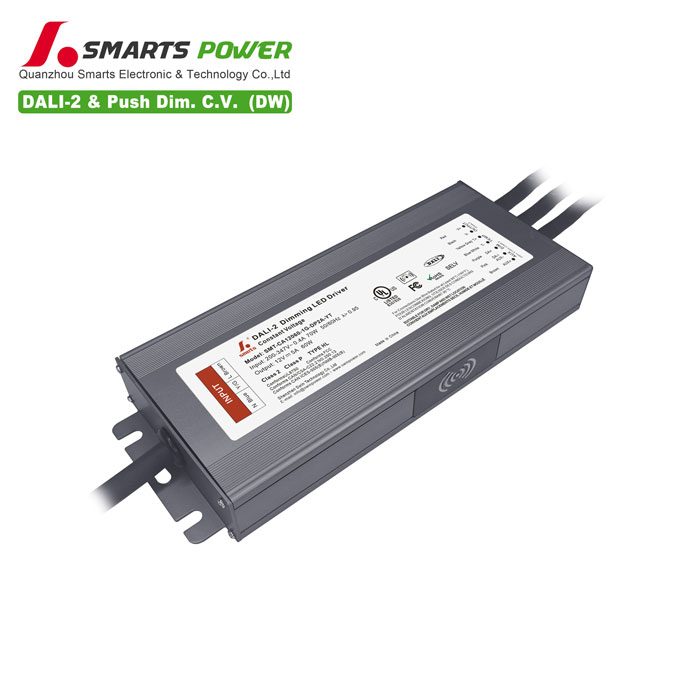

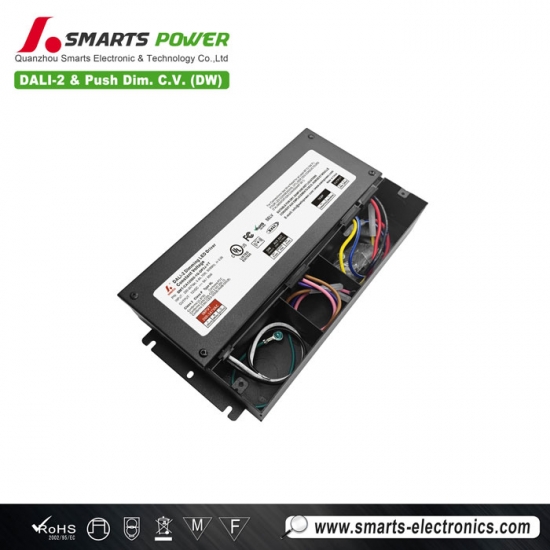

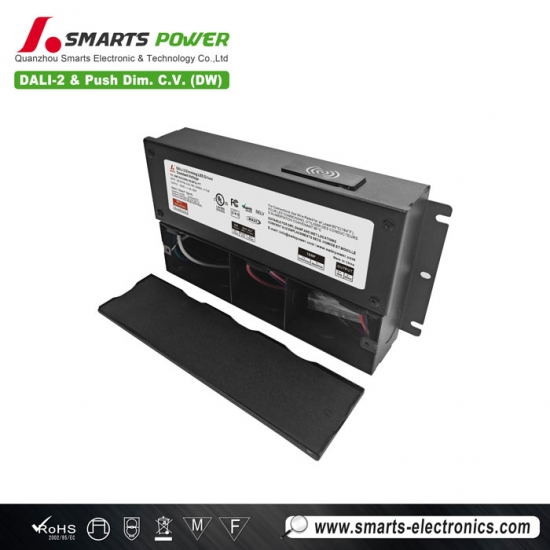

347vac DALI-2 & PUSH dimmable constant voltage 60W led driver with junction box
347vac DALI-2 & PUSH dimmable constant voltage 60W led driver with junction box
347vac DALI-2 & PUSH dimmable constant voltage 60W led driver with junction box
The 60W dali-2 push-dimmable LED power supply is integrated with the junction box, offering an adjustable dimming curve from 0.2% to 100%, ensuring smooth, stable, flicker-free dimming.
Specification
| Model | SMT-CA12060-1G-DP2J-YT | SMT-CA24060-1G-DP2J-YT | SMT-CA48060-1G-DP2J-YT | |
| Certificate | cUL / FCC /SELV / Class P /TYPE HL /ICES-005/Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Fine-tune Voltage | 12-13.5V | 24-26V | 48-50V | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | |||
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤1% | ≤1% | ≤1% | |
| Load Regulation | ±1% | ±1% | ±1% | |
| Overshoot/Undershoot | <10% (full load) | |||
| RIPPLE & NOISE (max.) | 350mVp-p | 530mVp-p | 695mVp-p | |
| Input | Voltage Range | 200-347VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
≥0.98@277VAC ≥0.95@347VAC |
≥0.98@277VAC ≥0.95@347VAC |
≥0.98@277VAC ≥0.95@347VAC |
|
| Efficiency(Typ.) @ full load |
≥87%@277VAC ≥87.5%@347VAC |
≥88%@277VAC ≥88%@347VAC |
≥88%@277VAC ≥88.5%@347VAC |
|
| THD(Typ. ) @ full load | ≤7%@277V ≤5%@347V | |||
| AC Current (Max.) | <0.27A@277VAC <0.22A@347VAC | |||
| Inrush Current (Typ.) | 21.6A,194us@50%Ipeak 277VAC 22.4A,276us@50%Ipeak 347VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≥110% Hiccup mode,recovers automatically after fault condition is removed | |||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13(US) | ||
| Withstand voltage | I/P-O/P:1.88KVAC (MAX 3.75KV) I/P-FG:1.88KVAC O/P-FG:0.5KVAC(US) | |||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Immunity (EMS) | FCC/ICES do not request this test (US) | |||
| EMC Emission (EMI) | FCC Part15 Subpart B;ANSI C63.4a-2017,ICES-005 Issue 5(US) | |||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | |||
| Others | Net Weight | 1.2kg | ||
| Dimension | 205*118*43mm(L*W*H) | |||
| Packing | 290*260*270mm 10pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: | ||||
| 3. Output voltage is DC Rate Voltage. | ||||
| 4. Output frequency is 4KHZ. | ||||
| 5. The dimming curve is a logarithmic curve. | ||||
| 6. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||

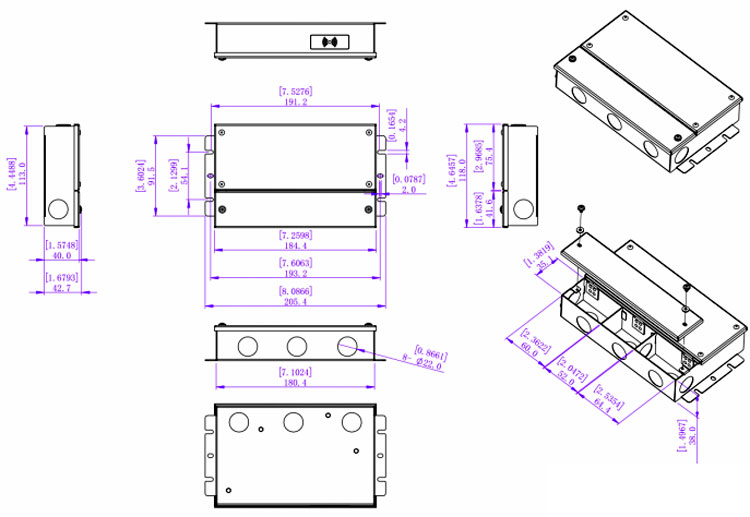

Mechanical Specification
MCB recommendation
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 22 |
| 13A | 29 | |
| 16A | 36 | |
| 20A | 45 | |
| 25A | 56 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 27 |
| 13A | 35 | |
| 16A | 44 | |
| 20A | 55 | |
| 25A | 69 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| American wire gauge | |
| JD63 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire | 12V/24V/48V:Red(V+) Black(V-)(2*18AWG) |
| Dimming wire | Purple(DALI+) Pink(DALI-/AUX 24V-) Brown(AUX 24V+)(3*18AWG) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG) |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.
Dimming Operation
Note：
1. When Turn on the internal DALI bus power.No need external bus power supply.
2. The model name SMT-CAxx060-1G-DP2J means that there is no auxiliary power supply and lamp temperature detection, so there is no corresponding wiring for the LED driver.
3. The model name SMT-CAxx060-1G-DP2J-Y means that there is an auxiliary power supply but no lamp temperature detection, so the LED driver has no lamp temperature detection wiring.
4. The model name SMT-CAxx060-1G-DP2J-T means that there is no auxiliary power supply but there is lamp temperature detection, so the LED driver has no auxiliary power wiring.
5. The model name SMT-CAxx060-1G-DP2J-YT means that there is an auxiliary power supply and lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
