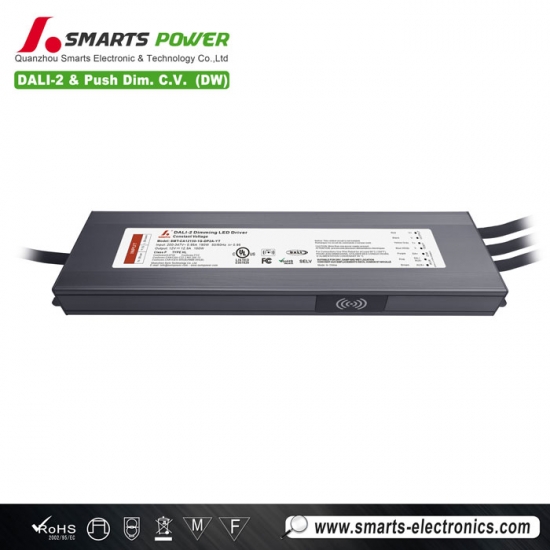

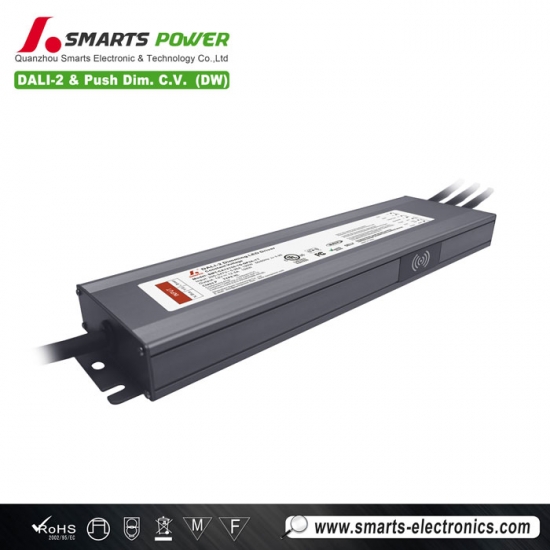

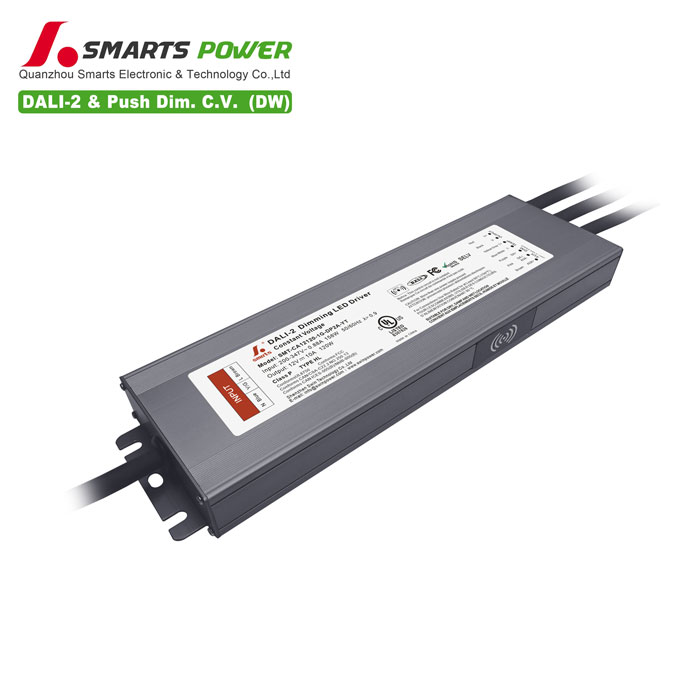

This dali-2 & push dimmable 150W LED power supply, suitable for the Canadian market, offers a dimming range of 0.2-100%, an adjustable dimming curve, and multiple operating frequencies. It also features a built-in NFC smart programming module, enabling LED driver parameters to be adjusted via the NFC app for smooth and stable dimming.
Specification
| Model | SMT-CA12150-2G-DP2A-YT | SMT-CA24150-2G-DP2A-YT | SMT-CA48150-2G-DP2A-YT | |
| Certificate | cUL / FCC / CE / SELV / Class P /TYPE HL / RoHS / Reach/UKCA/ICES-005/Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Fine-tune Voltage | 12-13.5V | 24-26V | 48-50V | |
| Rated current | 12.5A | 6.25A | 3.13A | |
| Rated power | 150W | |||
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤1% | ≤1% | ≤1% | |
| Load Regulation | ±4% | ±2% | ±2% | |
| Overshoot | <6% | <3.5% | <3% | |
| RIPPLE & NOISE (max.) | 264mVp-p | 437mVp-p | 654mVp-p | |
| Input | Voltage Range | 200-347VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Standby power | ≤0.5W | |||
| Power Factor (Typ.) @ full load |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
|
| Efficiency(Typ.) @ full load |
≥91.6%@230VAC ≥92.3%@277VAC ≥92.5%@347VAC |
≥93.5%@230VAC ≥94%@277VAC ≥93.5%@347VAC |
≥92.6%@230VAC ≥92.9%@277VAC ≥92.8%@347VAC |
|
| THD(Typ. ) @ full load | <8%@200VAC - 347VAC | |||
| AC Current (Max.) | 0.75A@230VAC 0.6A@277VAC 0.48A@347VAC | |||
| Inrush Current (Typ.) | 100A,259us@50%Ipeak 230VAC 120A,244us@50%Ipeak 277VAC 150A,259us@50%Ipeak 347VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≥115% Hiccup mode,recovers automatically after fault condition is removed | |||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +150℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No.250.13 (US) | ||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) | |||
| I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Immunity(EMS) | FCC/ICES do not request this test(EU)&FCC Part 15,Subpart B;ANSI C63.4-2014 (US) | |||
| EMC Emission(EMI) | EN55015 EN61000-3-2,3 (≥50%load) (EU) & FCC Part 15 Subpart B (US) | |||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | |||
| Others | Net Weight | 1.15kg each | ||
| Dimension | 279*78*25mm(L*W*H) | |||
| Packing | 330*300*215mm 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states:Output voltage is DC Rate Voltage. Output frequency is 4KHZ. The dimming curve is a logarithmic curve. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||

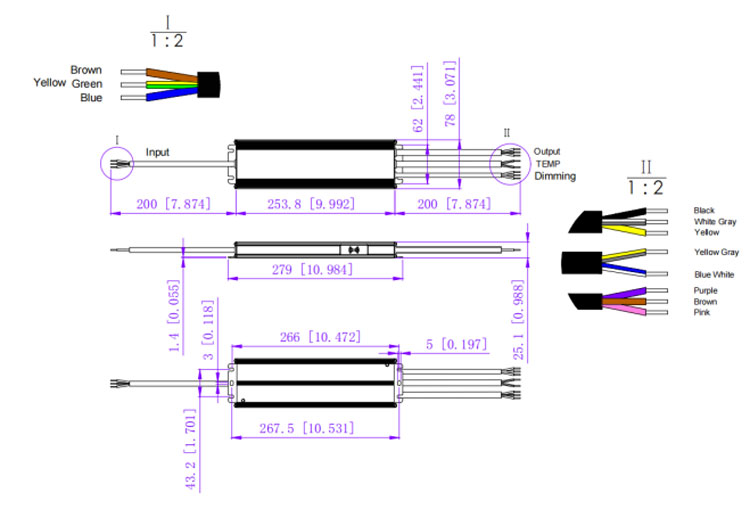

Mechanical Specification
MCB recommendation
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 8 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 16 | |
| 25A | 20 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 10 |
| 13A | 13 | |
| 16A | 16 | |
| 20A | 20 | |
| 25A | 25 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 12 |
| 13A | 15 | |
| 16A | 19 | |
| 20A | 24 | |
| 25A | 24 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| Global wire gauge | |
| DT200 | |
| Input wire(12V&24V&48v) | Brown(L) Blue(N) Yellow&Green(G)(3*17AWG\3*1.04mm²) |
| Output wire(12V) | Black(V+) White gray(CW-) Yellow(WW-)(3*14AWG\3*2.08mm²) |
| Output wire(24V) | Black(V+) White gray(CW-) Yellow(WW-)(3*16AWG\3*1.31mm²) |
| Output wire(48V) | Black(V+) White gray(CW-) Yellow(WW-)(3*18AWG\3*0.824mm²) |
| Dimming wire | Purple(DALI+) Pink(DALI-/AUX-)Brown(AUX+)(3*18AWG\3*0.824mm²) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG\2*0.824mm²) |
Warm tips:
Please make sure you connect these correctly, otherwise your product will not function correctly and could be damaged.
Dimming Operation
Note：
1. The model name SMT-CAxx150-2G-DP2A means that there is no auxiliary power supply and lamp temperature detection, so there is no corresponding wiring for the LED driver.
2. The model name SMT-CAxx150-2G-DP2A-Y means that there is an auxiliary power supply but no lamp temperature detection, so the LED driver has no lamp temperature detection wiring.
3. The model nameSMT-CAxx150-2G-DP2A-T means that there is no auxiliary power supply but there is lamp temperature detection, so the LED driver has no auxiliary power wiring.
4. The model name SMT-CAxx150-2G-DP2A-YT means that there is an auxiliary power supply and lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
| NFC voltage regulation level | ||||||||||
| level 1 | level 2 | level 3 | level 4 | level 5 | level 6 | level 7 | level 8 | level 9 | level 10 | |
| 12V | 12.0V | 12.2V | 12.3V | 12.5V | 12.6V | 12.8V | 13V | 13.1V | 13.3V | 13.5V |
| 24V | 24.0V | 24.2V | 24.4V | 24.7V | 24.9V | 25.1V | 25.3V | 25.6V | 25.8V | 26.0V |
| 48V | 48.0V | 48.2V | 48.4V | 48.7V | 48.9V | 49.1V | 49.3V | 49.6V | 49.8V | 50V |
