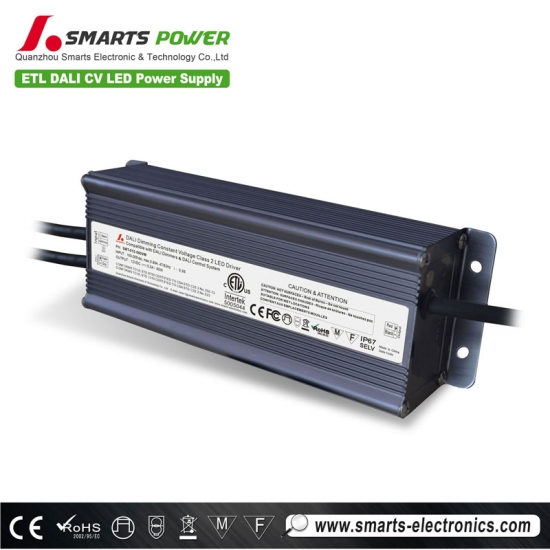

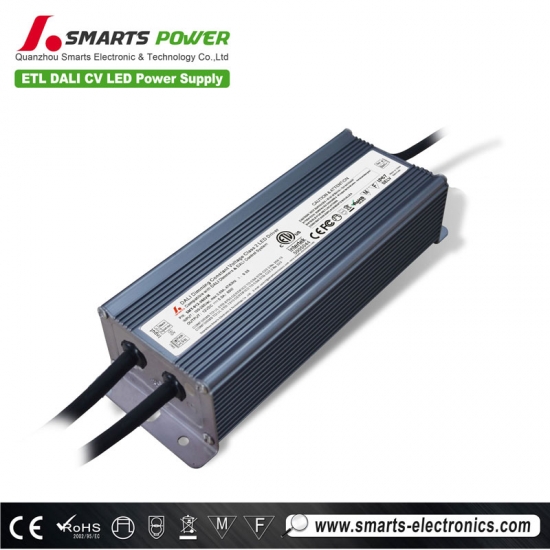

ETL listed 60w led power supply 12v DALI dimmable led driver
SMT-012-060VM is 60w led power supply constant voltage DALI dimmable led driver with 12V & 24V options. It has CE ETL/cETL FCC ROHS approved. It is IP67 waterproof rate, can be used in dry, damp, wet location for indoor and outdoor projects. It can also paired with junction box to meet electronic code requirement. It is work well with litom's B07R8NX74J.
Product parameters
|
Model |
SMT-012-060VM |
SMT-024-060VM |
SMT-036-060VM |
SMT-048-060VM |
||||
|
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|||
|
|
Voltage Accuracy |
±0.5V |
||||||
|
|
Rated current |
5.0A |
2.5A |
1.67A |
1.25A |
|||
|
|
Rated power |
60W |
60W |
60W |
60W |
|||
|
Input |
Voltage Range |
100-265VAC |
||||||
|
|
Frequency Range |
47～63HZ |
||||||
|
|
Power Factor ( Typ.） |
PF≧0.90/110V ; PF≧0.90/220V |
||||||
|
|
Full Load Efficiency（Typ.） |
>88% |
>88% |
>88% |
>88% |
|||
|
|
AC Current（Typ.） |
0.69A@110VAC |
0.34A@220VAC |
|||||
|
|
Leakage current |
﹤0.70mA/110VAC ; ﹤0.75mA/220VAC |
||||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
|
Waterproof rate |
IP67 |
||||||
|
|
Over Current |
≦1.4*Iout |
||||||
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||||
|
Environment |
Working TEMP. |
-40～+50℃ |
||||||
|
|
Working Humidity |
20～95%RH,non-condensing |
||||||
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||||
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||||
|
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||||||
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||||
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||||
|
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||||
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV） |
||||||
|
Others |
Weight |
1Kg |
||||||
|
|
Size |
210*69*45mm（L*W*H） |
||||||
|
|
packing |
355*215*215mm/10pcs/CTN 220*70*50 mm for inner box |
||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||||
 |
 |
 |
 |
CompatibleDimmer Type

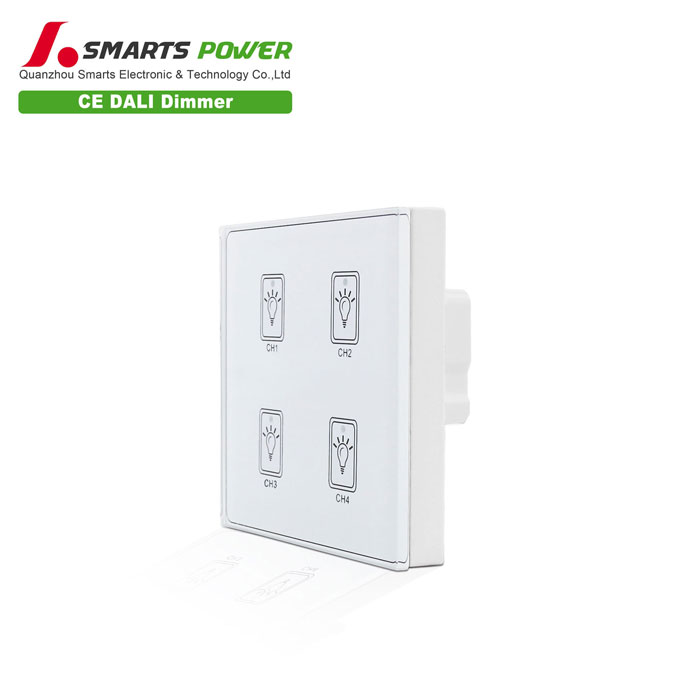

SMT-M4 is CE DALI touch dimmer. It is compatible with our constant voltage and constant current DALI dimmable led drivers, dimming range 0-100%. It is dimming well with ansell led's ABOLED/5000/CW.
Related Products

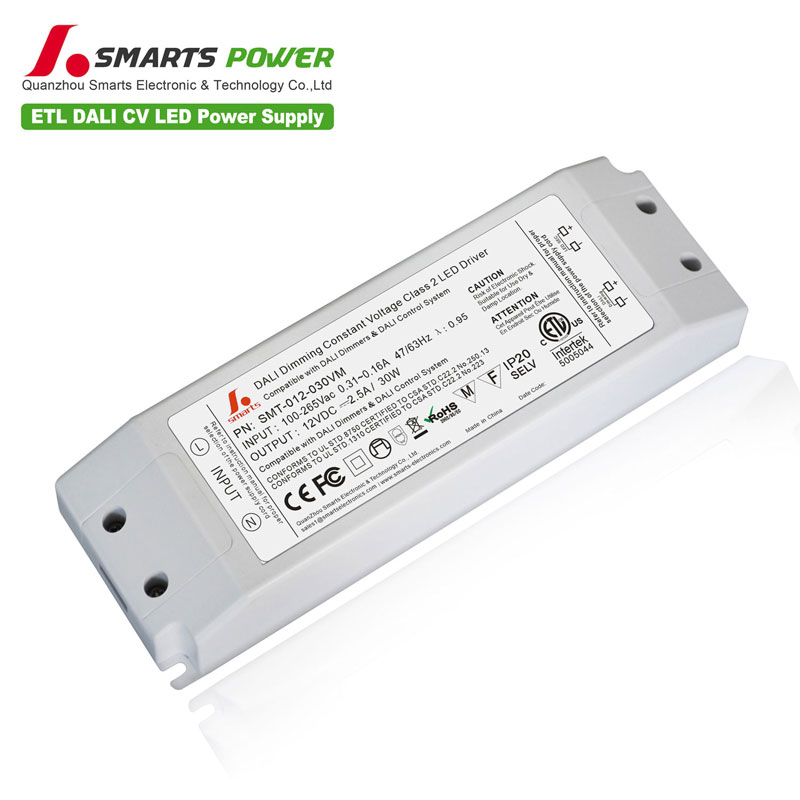

It is 12v 30w DALI dimming led power supply. It is IP20 version not waterproof plastic led driver, can be used in dry loaction for indoor projects only.
Mode：SMT-012-030VM |
