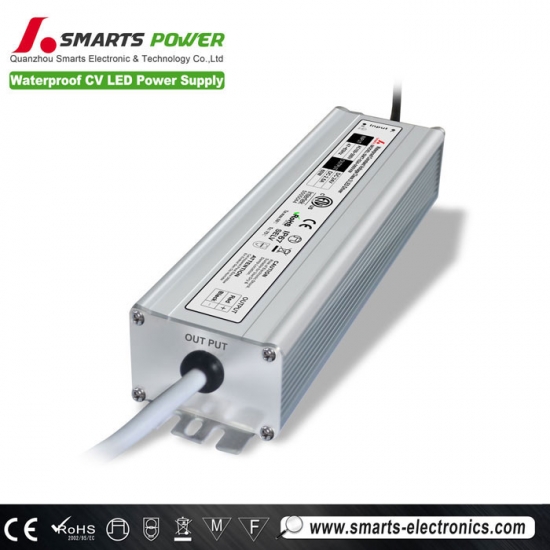

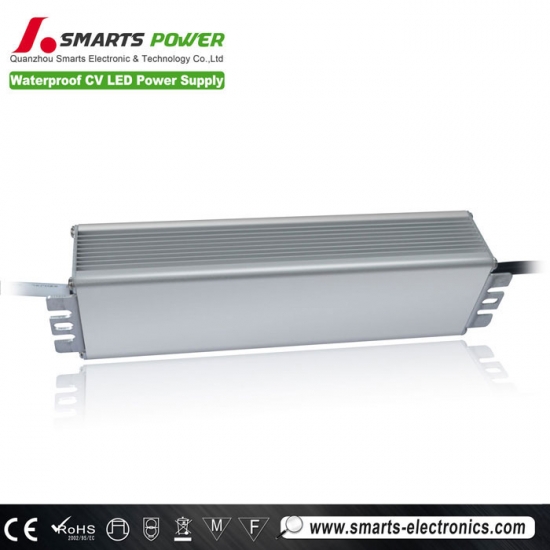

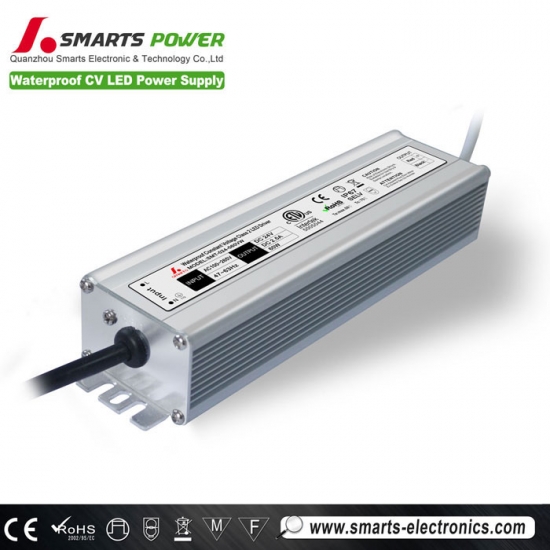

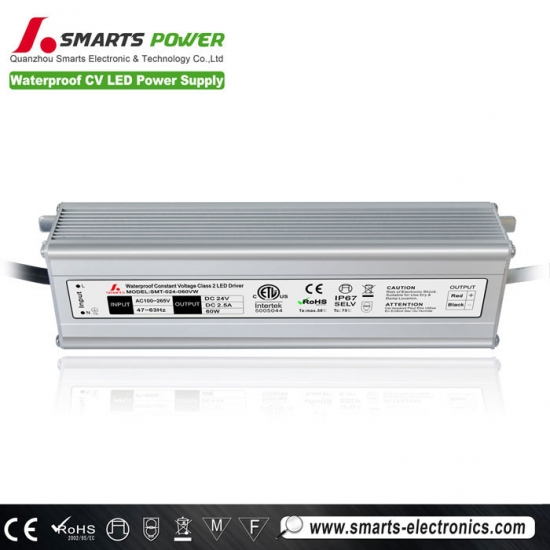

Non-dimmable LED Driver

60w 2.5A Constant voltage led driver 24v for LED strip lights

constant voltage led driver led power supply
  • item no.:

    SMT-024-060VW
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265V
  • Output Voltage:

    24VDC
  • Output Current:

    2.5A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    2 years
inquiry now
product details
60w 2.5A Constant voltage led driver 24v for LED strip lights



 SPECIFICAION
MODEL SMT-012-060VW SMT-024-060VW SMT-036-060VW
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 5.0A 2.5A 1.66A
CURRENT RANGE 0~5.0A 0~2.5A 0~1.66A
RATED POWER 60W 60W 60W
RIPPLE&NOISE(max) 1.2V 1.2V 1.2V
voltage TOLERANCE 12V±5% 24V±5% 36V±5%
SETUP RISE TIME 80ms/110,220VAC 80ms/110,220VAC 80ms/110,220VAC
HOLD UP TIME(Typ.) 60ms/110,220VAC 60ms/110,220VAC 60ms/110,220VAC
INPUT VOLTAGE RANGE 90~135/170~265Vac 90~135/170~265Vac 90~135/170~265Vac
FREQUENCY RANGE 50~60Hz 50~60Hz 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥84% ﹥84% ﹥84%
AC CURRENT(Typ.) 0.5A/110V,220VAC 0.5A/110V,220VAC 0.5A/110V,220VAC
INRUSH CURRENT (Typ.) COLD START 30A/110,220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS UL, CE Mark(LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 Label  60w 2.5A Constant voltage led driver 24v


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver




 What Service we can supply??


  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;
  6. We have our engineer team, if you have any question about your LED applications, let us know freely.



 Frequently Asked Questions


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
