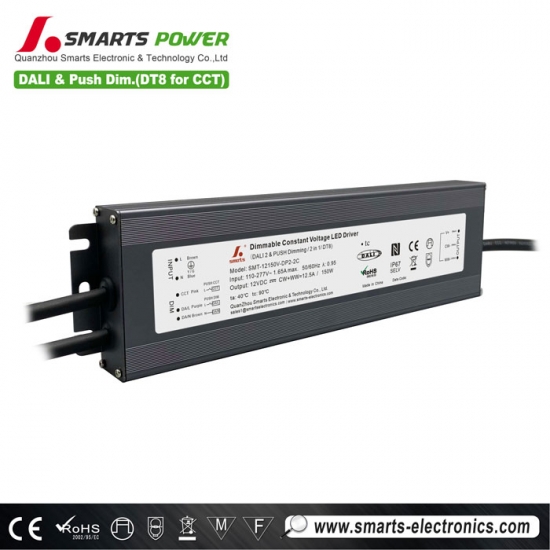

150w 24v dali 2& push dimmable waterproof electronic led driver ip67

UL authentication 150W waterproof constant voltage LD DRIVER, the input voltage is 100-277VAC with the NFC settings function. Users can contact the power supply through the mobile phone to implement the address code and fine-tune the output voltage function.


  Specification

Model SMT-12150V-DP2-2C SMT-24150V-DP2-2C SMT-36150V-DP2-2C SMT-48150V-DP2-2C
Output DC Voltage 12V(12-13.5V adjust by NFC) 24V (24-26V adjust by NFC) 36V (36-38V adjust by NFC) 48V (48-50V adjust by NFC)
Voltage Tolerance ±0.2V
Rated current 12.5A 6.25A 4.16A 3.125A
Rated power 150W
Load Regulation 2% 1% 1% 1%
Input Voltage Range 110-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98@120VAC  PF≥0.96@230VAC  PF≥0.95@277VAC (Full loading)
THD(Typ.)@ full load ≤10%@120VAC ;  ≤10%@230VAC;  ≤15%@277VAC
Efficiency(Typ.)@ full load 89%@120VAC   91%@230VAC/277VAC
AC Current(Max.) 1.6A 1.6A 1.6A 1.6A
Standby power consumption 0.28W(@120V)
0.43W(@230V)
0.48W(@277V)
0.25W(@120V)
0.42W(@230V)
0.48W(@277V)
0.28W(@120V)
0.43W(@230V)
0.49W(@277V)
0.28W(@120V)
0.43W(@230V)
0.49W(@277V)
Inrush Current (Typ.) 38.4A, 50%, 510us @120VAC; 88A, 50% , 120us @230VAC;48A, 50% , 560us @277VAC
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
Environment Working TEMP. -40 ~ +70℃ (see below derating curve)
Working Humidity 20 ~ 95%RH,non-condensing
Storage TEM.,Humidity -40 ~ +80℃,10 ~ 95%RH
TEMP.coefficient ±0.03%/℃(0 ~ 50℃)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN 61347-1 EN 61347-2-13(EU) & UL 8750(US)
Withstand voltage I/P-O/P:3.75KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU) I/P-O/P:1.80KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (US)
Isolation resistance I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
EMC Emission EN55015  EN61000-3-2 EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6,11  EN61547
Others Weight 0.85KG
Dimension 279*78*25.1mm (L*W*H)
packing 390x325x185mm    20PCS/CTN    G.W.:18.5KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification



Input & Output wiring

※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N) (EU);

Input SJOW Rubber cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);

※Output electronic cable 3*14AWG, to be connected to LED Light (12V output voltage);

  Output electronic cable 3*16AWG, to be connected to LED Light (24~48V output voltage)

Dimming cable

Dimming electronic cable 3*18AWGBrown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and Gray (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.



CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

Note:  there is external antenna at output side.  Don't disassemble!



  Dimming operation


Note: For DALI Dimming Wiring Diagram 3, please noted that

   only one DALI power is need in the DALI bus, so no extra DALI

   power is needed if the Master or Dimmer already includes the DALI

   Power.
