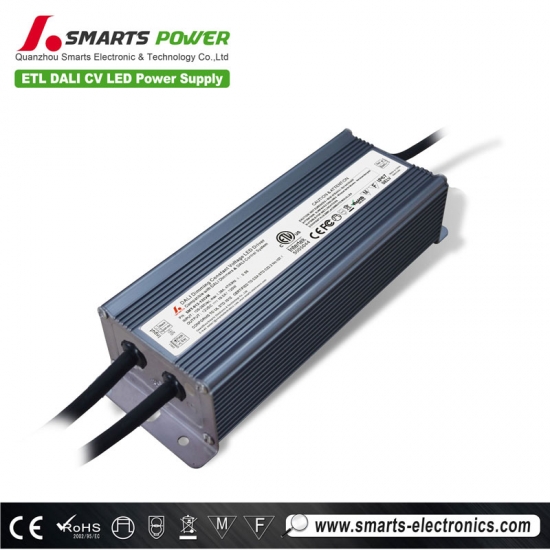

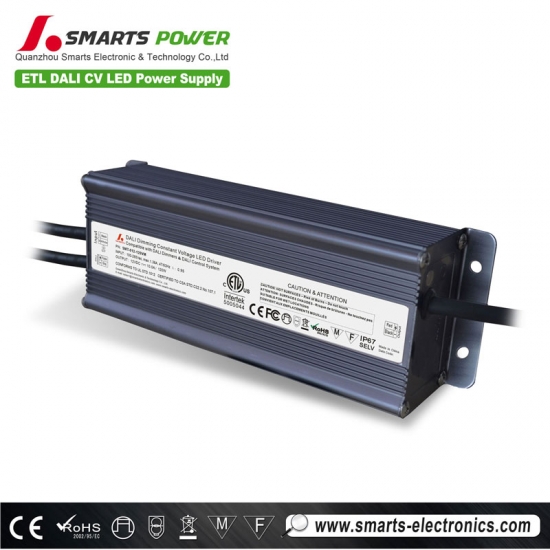

DALI Dimmable Constant Voltage LED Driver 120 volt to 12 volt 120w ip67
Smarts Electronics offers a variety of 12v dali driver that provide a high-performance solution for powering constant voltage LED lighting. DALI Dimming drivers come with the ability to control both the individual LED luminaries and multiple groups of them.
Specifications for 12v dali driver
|
Model |
SMT-012-120VM |
SMT-024-120VM |
SMT-036-120VM |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
36VDC |
|
|
Voltage Accuracy |
±0.5V |
||||
|
Rated current |
0~10.0A |
0~5.0A |
0~3.33A |
||
|
Rated power |
120W |
120W |
120W |
||
|
Input |
Voltage Range |
100-130VAC, 170-265VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
Power Factor ( Typ.) |
PF>0.90/100V, 220V |
||||
|
Full Load Efficiency(Typ.) |
>88%(110,220V) |
>88%(110,220V) |
|||
|
AC Current(Typ.) |
1.38A@110VAC) |
0.69A@220VAC |
|||
|
Leakage current |
<0.73mA/110, <0.76mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over Current |
<1.4*I out |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40~+50℃ |
|||
|
Working Humidity |
20~95%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) |
||||
|
Others |
Weight |
1.3Kg |
|||
|
Size |
230*69*45mm(L*W*H) |
||||
|
packing |
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box |
||||
|
Not es |
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |

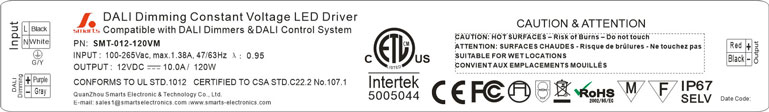

||||
| Label |
 |
||||
 |
 |
 |
 |
 |
|
Mechanical Specification for 120 volt led driver
--Input Rubber cable H03VV-F 3G 1.0M2,the green/yellow cable connect with (FG),Brown or Black with AC (L),Blue or White with AC(N)
--Input with Live Wire(L) Neutral Wire (N)
--Output LED SEC (LED+),(LED-)
--Signal Dimming (DA1), (DA2)
Derating Curve for led driver ip67
--Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
Operation Reference No.1 for led driver 120w
Operation Reference No.2 for led driver 120w
Operation Reference No.3 for led driver 120w
