Our led drivers are widely used for
Indoor LED illuminating lights
Vehicle Lights, Controller Panels
|
|

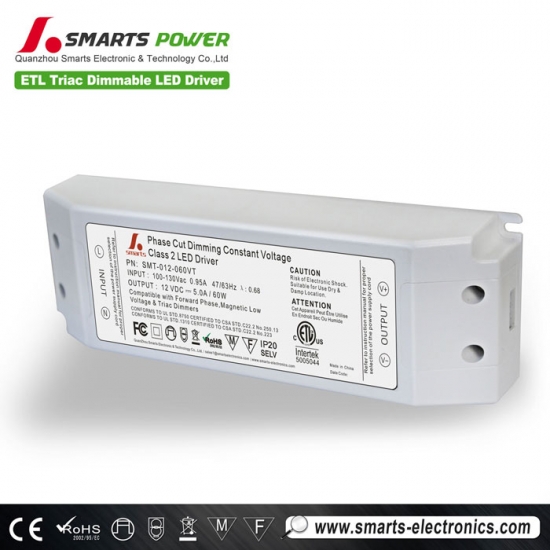

model |
SMT-012-060VT |
SMT-024-060VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
VoltageAccuracy |
±0.5V |
±0.5V |
|
|
Rated current |
5.00A |
2.50A |
|
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
90~135V AC/170~265V AC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.95/110V,PF>0.96/170V,PF>0.95/220V,PF>0.93/265V |
||
|
Full Load Efficiency(Typ.) |
>85% |
>85% |
|
|
AC Current(Typ.) |
0.61A/110VAC, 0.58A/170VAC, 0.46A/220VAC, 0.41A/265VAC |
||
|
Leakage current |
<0.25mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
<140VAC(90~135V) , <270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV) |
||
|
Others |
Weight |
About 1.0Kg |
|
|
Size |
210*68.5*43mm(L*W*H) |
||
|
packing |
324*298*176mm (L*W*H) |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
|
||
 |
 |
 |
 |

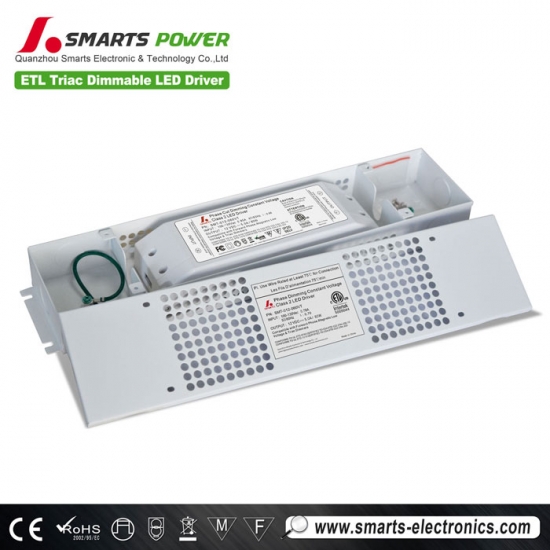

60W triac dimmable driver Mechanical Specification
- Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Derating Curve
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.
Connecting Diagram
Simple Connection Diagram
