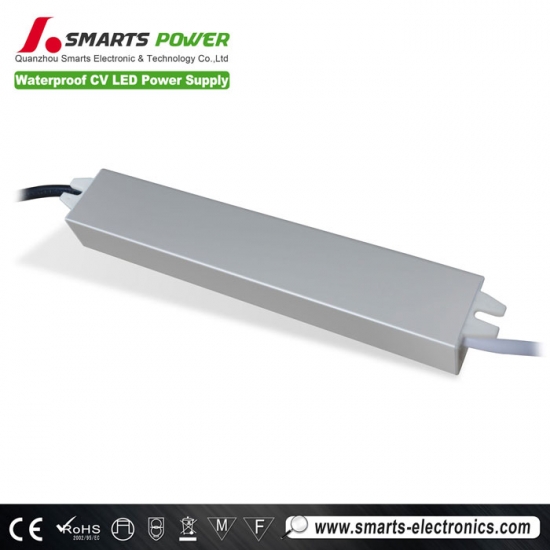

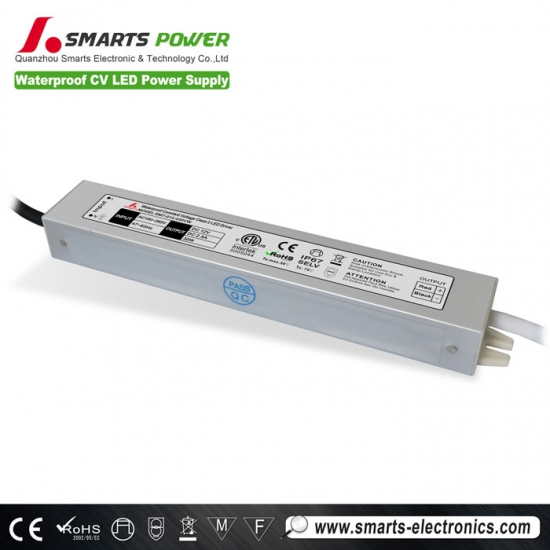

plastic cover 30watt 12v dc Constant Volatge LED Driver for led strip light
SPECIFICAION
MODEL
SMT-012-030WW
SMT-024-030VW
SMT-036-030VW
OUTPUT
DC VOLTAGE
12V
24V
36V
RATED CURRENT
2.5Amp
1.25Amp
0.83Amp
CURRENT RANGE
0~2.5A
0~1.25A
0~0.83A
RATED POWER
30W
30W
30W
RIPPLE&NOISE(max)
150mV
150mV
150mV
CURRENT TOLERANCE
±0.5V
±0.5V
±0.5V
SETUP RISE TIME
80ms/110,220VAC
81ms/110,220VAC
82ms/110,220VAC
HOLD UP TIME(Typ.)
60ms/110-220VAC
60ms/110-220VAC
60ms/110-220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>83%
>83%
>83%
AC CURRENT(Typ.)
3.5A/110,220VAC
2.0A/110,220VAC
1.5A/110,220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
ETL/ROHS/CE Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.

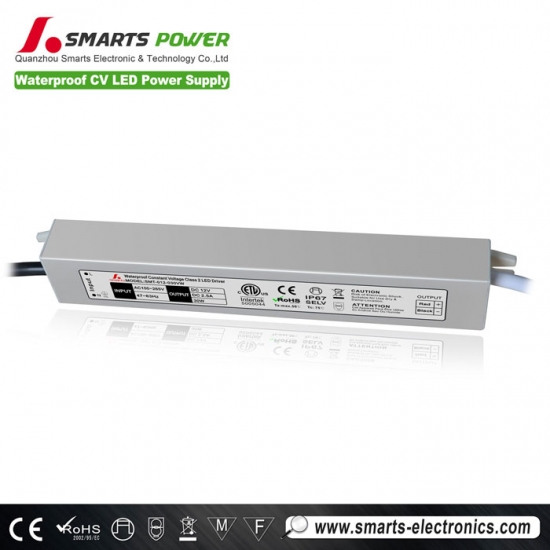

Label
 |
 |
 |
 |
Features
High efficiency,save energy ,protected environment.High stability and low ripple, increase light efficiency and decrease light attenuation.Meet to safety standard and EMCAssure LED stability long lift and light efficiency by constant voltage.Integrity protection,over loading, over voltage ,over current.8Hrs and 100% full load burn-in test.
