IP20 Plastic housing 60w triac dimmable led driver power supply manufacturers for indoor
Smartspower triac dimmable led power supply has ultra-low load requirements and can work perfectly at 20%-100% load. Suitable for indoor small space led lighting project installation
Specification
| Model | SMT-24096-VT-P | SMT-48096-VT-P | |
| Certificate | UL / cUL / FCC / Class P / Class 2/Type HL/ICES-005 | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±2% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤0.5% | ≤0.5% | |
| Rated current | ≤2% | ≤2% | |
| Rated power | 96W | ||
| Voltage Ripple | 296mv | 176mv | |
| Overshoot voltage | <3%(full load) | <3%(full load) | |
| Output mode selection | When the blue&white wire and the yellow&gray wire at the output terminal are short-circuited, it indicates the Pulse-Width Modulation (PWM) mode. When they are disconnected, it indicates the Voltage Regulation (VR) mode of direct current voltage modulation. | ||
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | |||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.97@277VAC |
>0.98@120VAC >0.97@277VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | ||
| Efficiency(Typ.) @ full load |
≥88%@120VAC ≥91.5%@277VAC |
≥87%@120VAC ≥90.5%@277VAC |
|
| AC Current (Max.) | ≤1.0A @120VAC ≤0.43A@277VAC | ||
| Standby power | ≤0.5W | ||
| Inrush Current (Typ.) | 51A,208us@50%Ipeak 120VAC 118A,452us@50%Ipeak 277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | |
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | ||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | ||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||
| EMC Immunity | FCC/ICES do not request this test | ||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | ||
| Others | Net Weight | 0.56KG | |
| Dimension | 188*61.4*25.5mm(L*W*H) | ||
| Packing | 415*230*170mm 20 pcs / CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
| 4. Default states:The output mode is VR output by default. The dimming curve is a gamma2.2 curve. | |||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | |||
 |
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CA7 | |
| Input wire | Black(L) White(N) Green(G) (3*18 AWG) |
| Output wire | 12V:Red(V+) Black(V-) (2*16 AWG) |
| 24V&48V:Red(V+) Black(V-) (2*18 AWG) | |
| Function switching wire | Yellow Gray and Blue White.(2*18 AWG) |
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 7 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 15 | |
| 25A | 19 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 36 | |
| 25A | 45 | |
Note：
①The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
②The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
3. Min. loading is about 20%.
4. Please try to use dimmers with power at least 1.5 times as the output power of the driver.

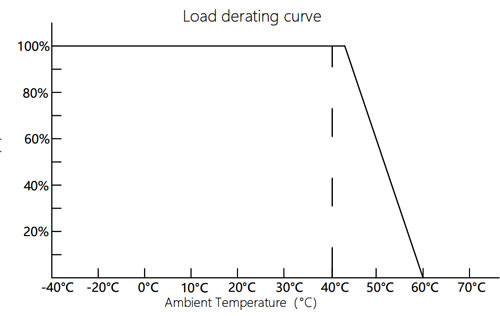

Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver’s life.
Related Products

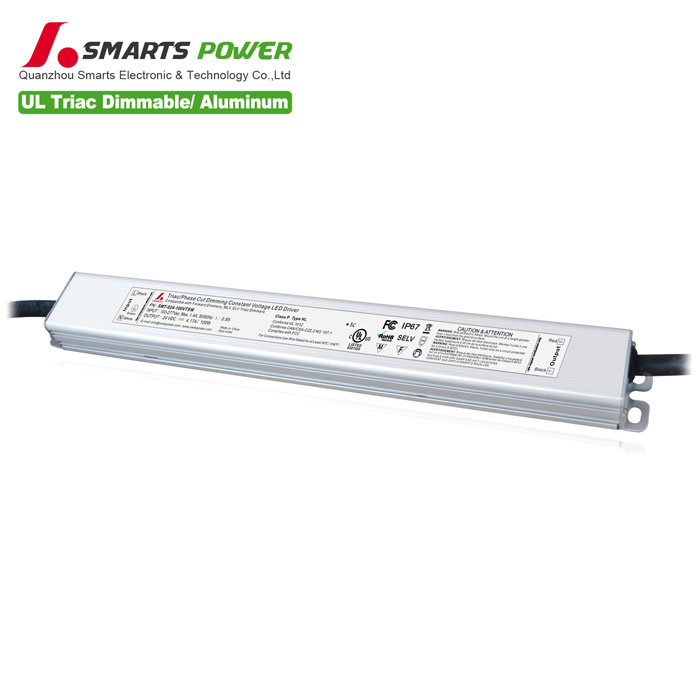

24v 100W constant voltage triac dimmable led power supply aluminum housing design, ultra-thin size suitable for indoor small space led lighting project installation. With 7 years warranty
