Non-dimmable LED Driver

waterproof 12v 60w LED power supply for triac dimming

12v waterproof LED power supply; 12v/24v 60w triac dimmable led driver;  China market led power supply
  • item no.:

    SMT-012-060VT
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T; Paypal; Western Union
  • Input Voltage:

    90~135V AC/170~265V AC
  • Output Voltage:

    12VDC
  • Output Current:

    5A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

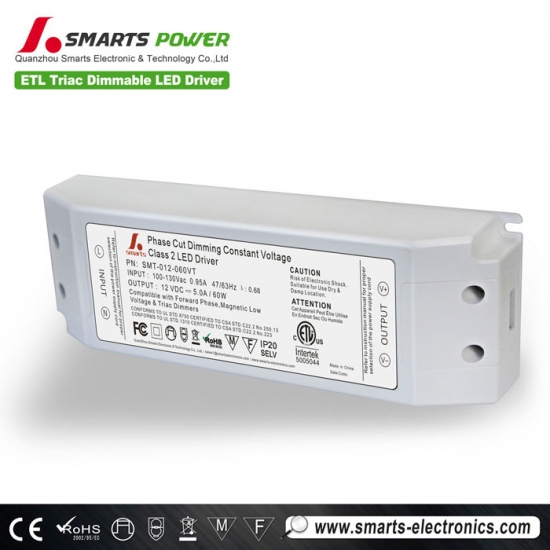

waterproof 12v 60w LED power supply for triac dimming


 Product parameters


model

SMT-012-060VT

SMT-024-060VT

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

5.00A

2.50A

Rated power

60W

60W

Input

Voltage Range

90~135V AC/170~265V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.95/110V,PF>0.96/170V,

PF>0.95/220V,PF>0.93/265V

Full Load Efficiency(Typ.)

>85%

>85%

AC Current(Typ.)

0.61A/110VAC, 0.58A/170VAC,

0.46A/220VAC, 0.41A/265VAC

Leakage current

<0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically

after fault condition

is removed.

Over voltage

<140VAC(90~135V) , <270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes







Safety&EMC

Safety standards

EN-60950-1, EN61347-1/-2/-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 1.0Kg

Size

200*68*45mm(L*W*H)

packing

324*298*176mm (L*W*H)

Notes

1.All parameters NOT specially mentioned are measured at 110V/230VAC

input , rated load and 25℃of ambient temperature.

2.Ripple& noise are measured at 20MHz of bandwidth by using a

12”twisted   pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.Tolerance:includes set us tolerance,line regulation and load regulation . 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

  Label   waterproof 12v 60w LED power supply12v 60w LED power supply
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Features



  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage.
  5. Protections:Short circuit/Overload/Over temperature
  6. Cooling by free air convection
  7. 100% full load burn-in test.
  8. Suitable for LED lighting


 Application


  1. Indoor LED illuminating lights
  2. LED Neon, LED urban Decoration
  3. LED Lighting Advertising,LED Display
  4. Safety Protection Apparatus, Telecommunications
  5. Networks, Vehicle Lights, Controller Panels

waterproof 12v 60w LED power supply
