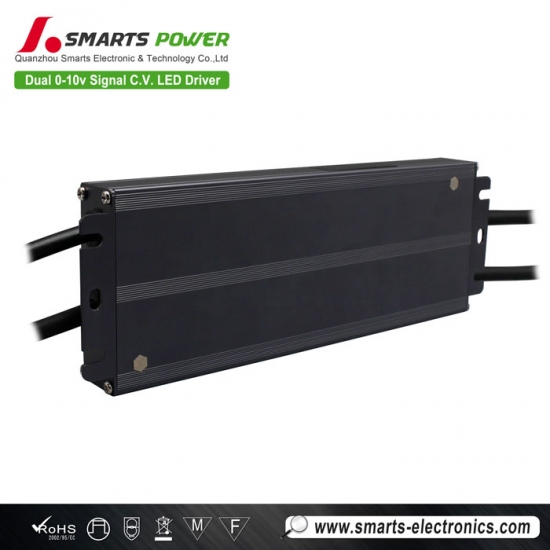

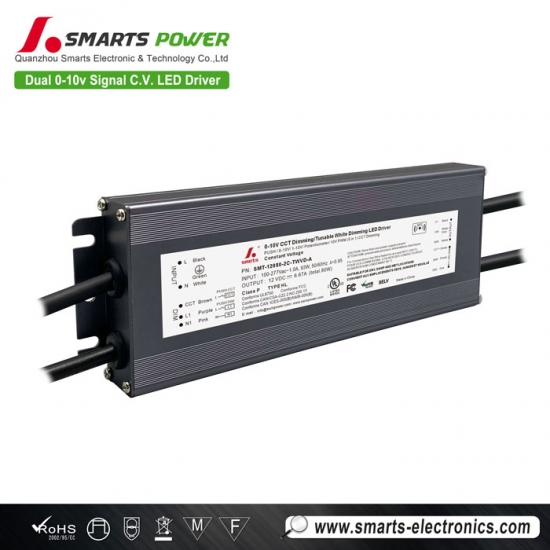

100-277VAC universal input voltage range, 0-10V dual signal dimming 80W LED driver. The dimming range is stable, smooth, and flicker-free from 0-100%. Suitable for outdoor and damp location LED lighting projects. 7-year extended warranty.
Specification
| Model | SMT-12080-2C-TWVD-A | SMT-24080-2C-TWVD-A | SMT-48080-2C-TWVD-A | |
| Certificate | UL / cUL / FCC / ICES-005 / Class P / Class 2 (24V&48V) / TYPE HL / SELV / ROHS / REACH | |||
| Output | Rated Voltage | 12V | 24V | 48V |
| DC Voltage | 12-13.5V adjust by NFC | 24-26V adjust by NFC | 48-50V adjust by NFC | |
| Voltage Tolerance | ±0.5V | ±0.5V | ±0.5V | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤1% | ≤1% | |
| Rated current | 6.67A | 3.33A | 1.67A | |
| Rated power | 80W | |||
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor (Typ.) @ full load | >0.95 | |||
| THD(Typ. ) @ full load | ≤15% | |||
| Efficiency(Typ.) @ full load |
87%@120VAC 88%@230VAC 89%@277VAC |
87%@120VAC 88%@230VAC 89%@277VAC |
89%@120VAC 90%@230VAC 91%@277VAC |
|
| AC Current (Max.) | 1A | |||
| Inrush Current (Typ.) | 28A, 320us @50%120VAC 90A, 76us @50%230VAC 58A, 260us @50%277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 -95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No. 250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | FCC CFR Title 47 Part 15 Subpart B:2020; ICES-005 Issue 5 | |||
| Others | Net Weight | 0.83KG | ||
| Dimension | 232*78*25.1mm(L*W*H) | |||
| Packing | 300*280*215mm 20pcs/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | |||
| 2. Under low input voltage, derating output is required to ensure a long life. | ||||

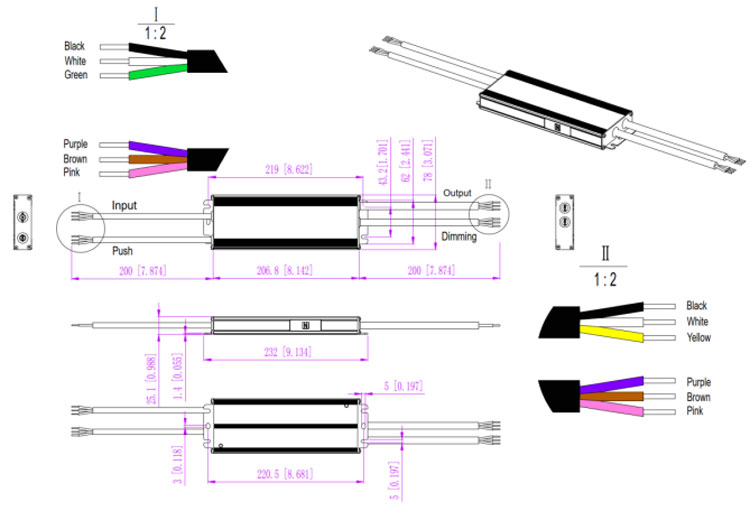

Mechanical Specification
| American wire gauge | |
| DT100 | |
| Input wires | Black(L) White(N) Green(G) 3*18AWG |
| Output wires |
12V: Black(V+) White(CW-) Yellow(WW-) 3*16AWG 24V&48V: Black(V+) White(CW-) Yellow(WW-) 3*18AWG |
| Dimming wires |
Input dimming wire: Brown(CCT) Purple(L1) Pink(N1) 3*18AWG Output dimming wire: Brown(CCT) Purple(DIM+) Pink(DIM-) 3*18AWG |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
MCB recommendation:
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 11 |
| 13A | 15 | |
| 16A | 19 | |
| 20A | 23 | |
| 25A | 29 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 7 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 15 | |
| 25A | 19 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic
curve.

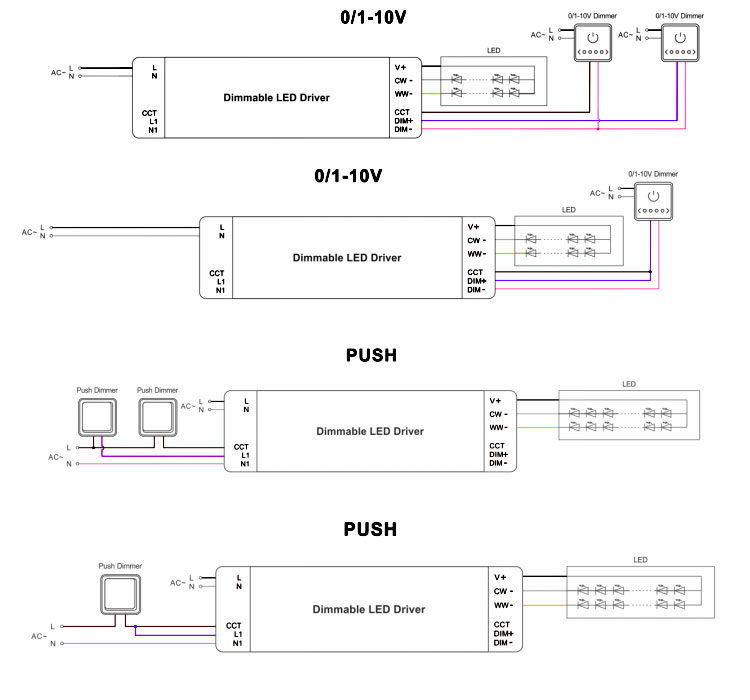

Dimming Operation
NFC function:
 |
 |
 |
 |
|
ProNFC APP |
NFC Handheld devices |
IOS Download |
Android Download |
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
| NFC voltage regulation level | ||||||||||
| level 1 | level 2 | level 3 | level 4 | level 5 | level 6 | level 7 | level 8 | level 9 | level 10 | |
| 12V | 12V | 12.16V | 12.32V | 12.48V | 12.64V | 12.80V | 12.96V | 13.12V | 13.28V | 13.5V |
| 24V | 24V | 24.22V | 24.44V | 24.66V | 24.88V | 25.10V | 25.32V | 25.54V | 25.66V | 26.0V |
| 48V | 48V | 48.22V | 48.44V | 48.66V | 48.88V | 49.10V | 49.32V | 49.54V | 49.66V | 50.0V |
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|

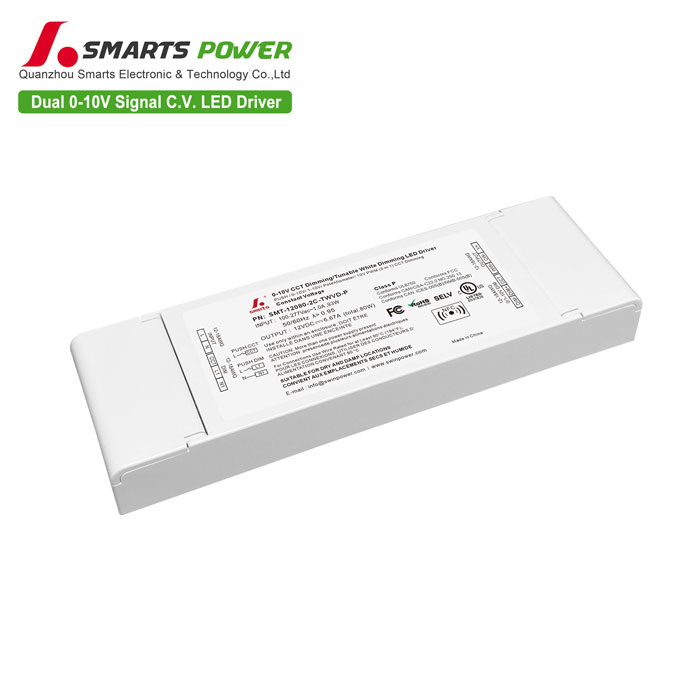

Mode：SMT-12080-2C-TWVD-P intput voltage：100-277vac
