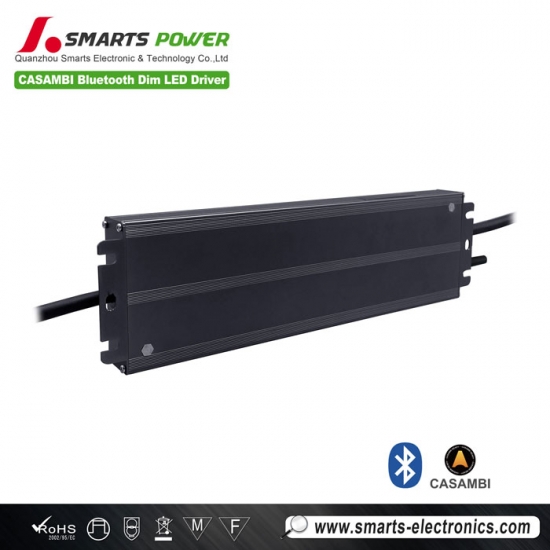

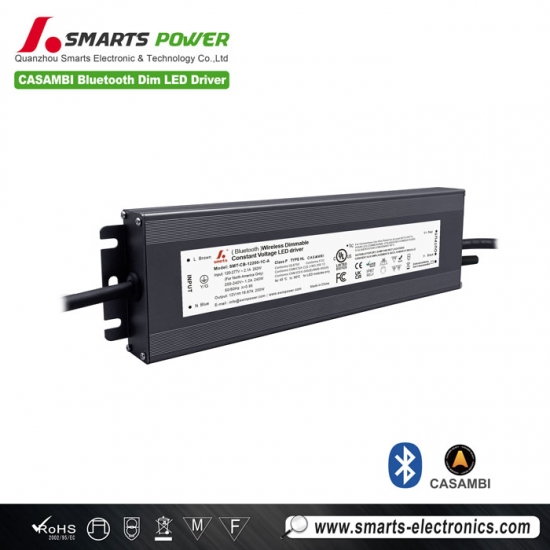

The CASAMBI wireless dimmable LED driver features a universal input voltage range of 100-277VAC. It utilizes natural convection cooling, an aluminum housing design for excellent heat dissipation, and complies with global safety lighting regulations. It is primarily sold in North America.
Specification
| Model | SMT-CB-12200-1C-A | SMT-CB-24200-1C-A | SMT-CB-48200-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±0.5V | |||
| Voltage Regulation | ≤0.5% | |||
| Rated current | 16.67A | 8.33A | 4.17A | |
| Rated power | 200W | |||
| Load Regulation | ≤2% | ≤1% | ||
| Input | Voltage Range | 110~277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor @ full load | ≥0.98@230VAC | |||
| THD(Typ.) @ full load | <15% | |||
| Efficiency @ full load | 91.5%@230VAC | 93%@230VAC | 93%@230VAC | |
| AC Current (Max.) | 2.1A | |||
| Inrush Current (Typ.) | 88A,140us@50%Ipeak 230VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | ||
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC CFR 47 Part 15,Subpart B (US) | |||
| Others | Net Weight | ?KG | ||
| Dimension | 279*78*25.1mm (L*W*H) | |||
| Packing | 20PCS/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
Mechanical Specification
1. Input cable 3*1.0mm2, the Brown cable to (L), the Blue cable to (N), and the Yellow & Green cable to (FG).
2. Output cable 2*1.31mm2, Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
