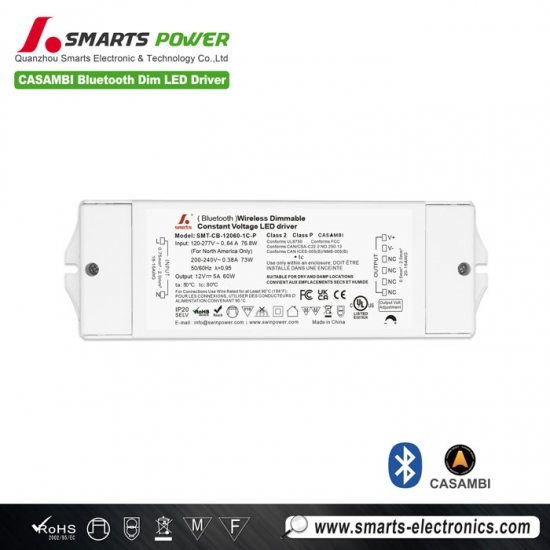

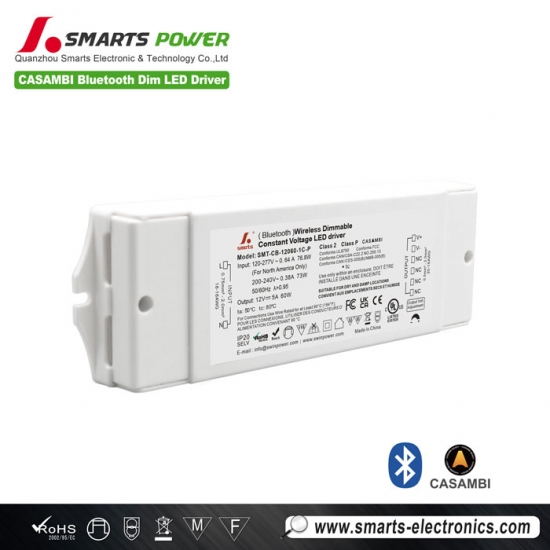

12v/24v 60W constant voltage CASAMBI Bluetooth dimmable led driver For led lighting
12v/24v 60W constant voltage CASAMBI Bluetooth dimmable led driver For led lighting
12v/24v 60W constant voltage CASAMBI Bluetooth dimmable led driver For led lighting
The newly upgraded smartspower wireless Bluetooth LED driver features CASAMBI dimming mode, making wiring simple and convenient. It provides precise dimming control and its plastic housing design makes it suitable for installation in confined indoor LED lighting projects.
Specification
| Model | SMT-CB-12060-XC-P | SMT-CB-24060-XC-P | SMT-CB-48060-XC-P | |
| Certificate | UL / FCC / CE / SAA / UKCA / RoHS / Reach | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 376mVp-p | 248mVp-p | 208mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
|
| THD(Typ. ) @ full load | ≤10%@120VAC ≤15%@277VAC | |||
| Efficiency(Typ.) @ full load |
86.5%@120VAC 90.0%@230VAC 90.5%@277VAC |
87.0%@120VAC 88.5%@230VAC 89.5%@277VAC |
86.0%@120VAC 89.5%@277VAC | |
| AC Current (Max.) | 0.64A@120VAC 0.28A@277VAC | |||
| Inrush Current (Typ.) | 26.4A/136 us@50%Ipeak 120VAC 46.7A/140us@50%Ipeak 277VAC 63.2A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed | ||
| Over Load | ≥120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage |
I/P-O/P:3.75KVAC (EU) I/P-O/P:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV | |||
| EMC Immunity |
FCC/ICES do not request this test(US) EN61000-4-2,3,4,5,11 EN61547 (EU) |
|||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4a-2017 (US)EN55015 EN61000-3-2,3(≥50%)(EU) | |||
| Others | Net Weight | 0.35KG | ||
| Dimension | 192*62*24mm (L*W*H) | |||
| Packing | 280*210*160MM 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||

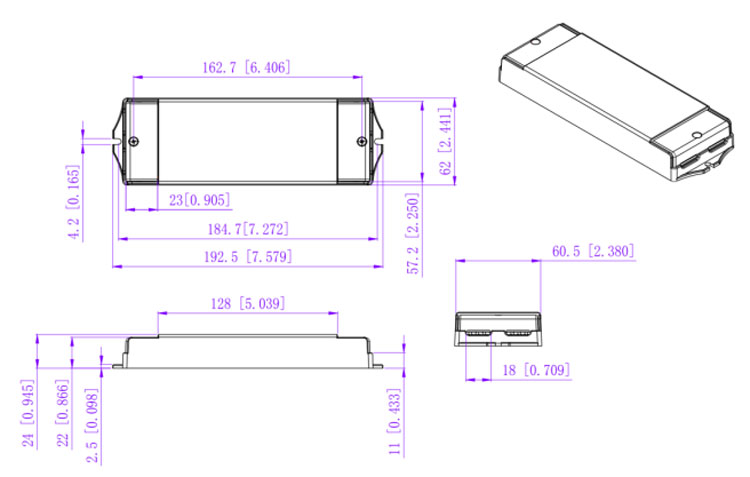

Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 12 | |
| 16A | 15 | |
| 20A | 19 | |
| 25A | 23 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 28 | |
| 20A | 36 | |
| 25A | 45 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 21 |
| 13A | 28 | |
| 16A | 34 | |
| 20A | 43 | |
| 25A | 52 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ° C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
1. Input DG128 terminal with 3P: Live Wire(L) , Neutral Wire (N) .
2. Output DG128 terminals with XC:(X+1)P: LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design.
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Warm tips:
1. Suggested wire diameter: Primary 0.75-2.5mm2 (18-14 AWG); Secondary 0.5-2.5mm2 (20-14 AWG).
2. Any other requests for, we can customized.
Dimming Operation

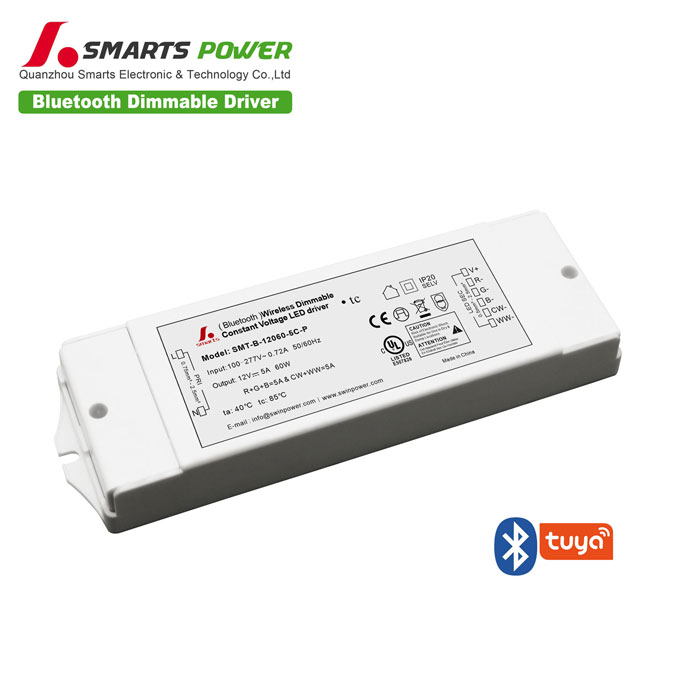

Related Products
|
