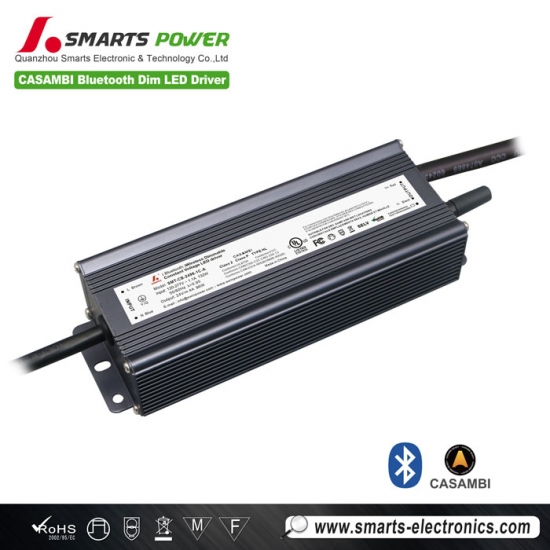

This CASAMBI wireless dimmable 96W LED power supply operates at a constant voltage of 100-277VAC and supports Bluetooth CASAMBI wireless dimming, allowing you to control the lighting effects anytime, anywhere via a mobile app. It comes with a 5-year warranty.
Specification
| Model | SMT-CB-24096-1C-A | SMT-CB-48096-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ≤0.5% | ||
| Rated current | 4A | 2A | |
| Rated power | 96W | ||
| Load Regulation | ≤1% | ||
| Input | Voltage Range | 100 ~ 277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor @ full load | PF≥0.98@230VAC | ||
| THD(Typ.) @ full load | ≤15% | ||
| Efficiency @ full load | 89%@230VAC | 91%@230VAC | |
| AC Current (Max.) | 0.47A | 0.46A | |
| Inrush Current (Typ.) | 53A, 250us@50%Ipeak 230VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | ||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after temperature drop | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) | ||
| I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC Part 15, Subpart B(US) | ||
| Others | Net Weight | ? KG | |
| Dimension | 206*69.8*42mm (L*W*H) | ||
| Packing | 10pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance and load regulation . | |||
Mechanical Specification

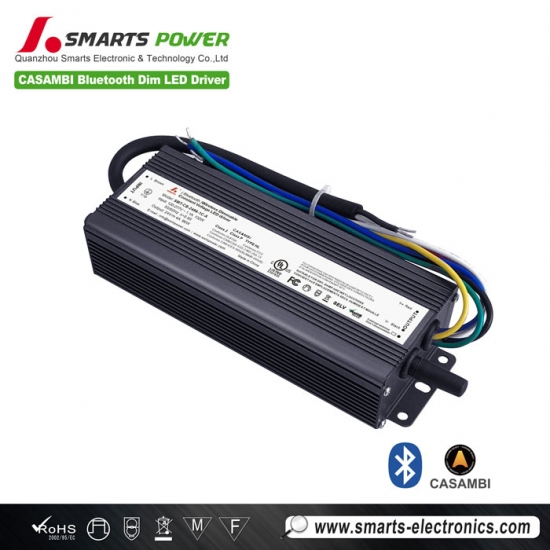

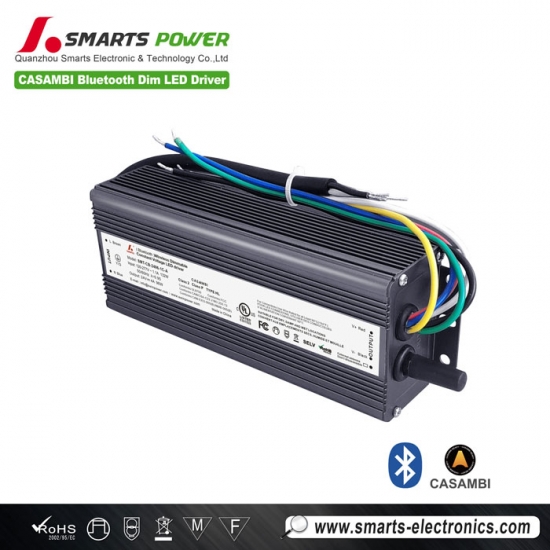

1. Input cable 3*16AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 2*16AWG, Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna.
Dimming Operation
Related Products
|

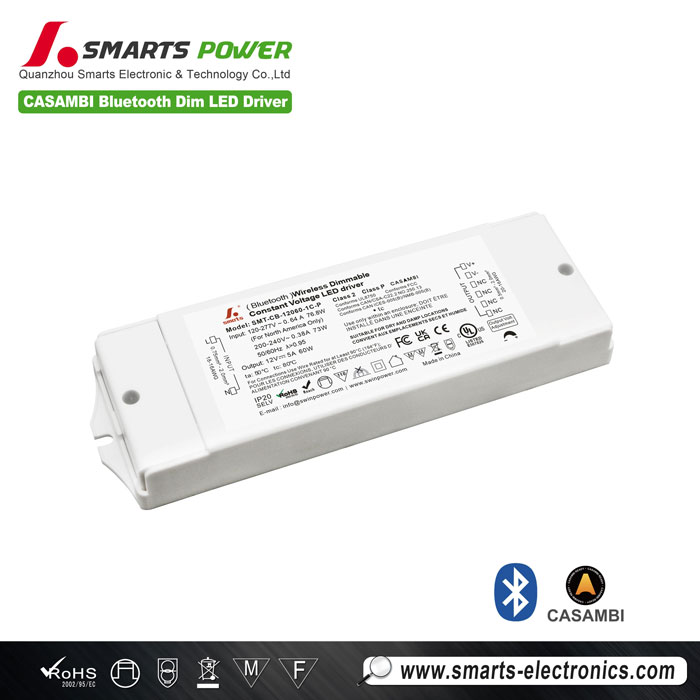

Mode：SMT-CB-12060-1C-P intput voltage：100-277vac
