Non-dimmable LED Driver

0-10v dimming ac dc 24v dimmable led transformer 24 volt 120 watt


constant voltage working mode, 110-277VAC wide input range 0-10v dimming ac dc led transformer 24 volt 120 watt, IP 67 rate suitable for dry/damp/wet locations, also with short circuit/over current/over voltage/over temperature protection.




  • item no.:

    SMT-024-120V DH
  • lead time:

    7 working days for samples order, 12 wor
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    EXW
  • market price:

    $36.5
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    24VDC
  • Output Current:

    5A
  • Working Mode:

    Constant voltage
  • Certification:

    CE ROHS UL CUL FCC
  • Warranty:

    5 years
inquiry now
product details



0-10v dimming ac dc 24v dimmable led transformer 24 volt 120 watt



CE,  Class P,  Type HL,  UL/cUL,  RoHS listing  277VAC type 120W Dimmable constant voltage LED transformer with Efficiency>88% / PF>0.9, 5 years warranty, 0-10V/ 1-10V/ 10V PWM signal or resistance dimming function, compatible with ELV MLV dimmer switch.


Datasheet


Model

SMT-024-120V  DH

Output

DC Voltage

24V



Voltage Accuracy

±0.5V



Rated current

0-5.0A



Rated power

120W

120W



Ripple&noise Max.

250mVp-p

400mVp-p

Input

Voltage Range

100-277VAC





Frequency Range

4763HZ



Power Factor ( Typ.

>0.90@110V,277V



Full Load EfficiencyTyp.



87%

>88%

88%



AC CurrentTyp.

1.263A/120VAC  0.891A/170VAC  0.689A/220VAC  0.572A/277VAC



Leakage current

0.25mA/110V,277VAC


Safety&EMC


   Safety standards

  Class P, Type HL, EN61347-1 EN61347-2-13  IP67

   Withstand voltage

    I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

   Isolation resistance

    I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

   EMC EMISSION

    Compliance to EN55015,EN61000-3-2 (≧50%Load)

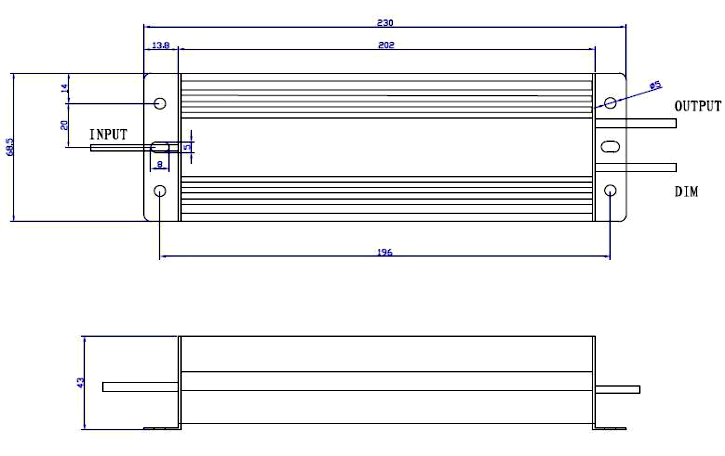

Mechanical Specification


24v dimmable led transformer

※Input 18AWG*3Cthe green/yellow cable connect with (FG)Brown with AC (L),Blue with AC(N)

※Signal 18AWG*2CRed isDIM+,Black isDIM-

※Output 18AWG*2CBlown is outputV+,Blue is outputV-

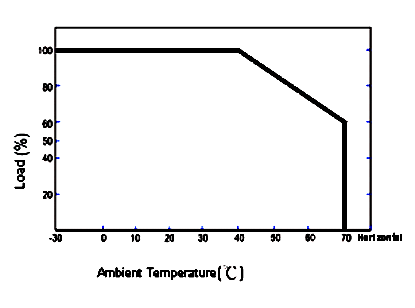

Derating Curve

0-10v dimming led transformer

Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



What is the packing and shipping ??

MOQ: 1 PCS

Payment : T/T  Western union  Paypal  Trade  Assurance

Delivery : 7 working days for sample order ,  12 working days for 500pcs

Shipping term : FedEx  DHL  UPS  TNT
