100-277vac 0 10v dimmer Wall switch for Dimming Control


led 0 10v dimmer switch
led 0 10v dimmer switch led 0 10v dimmer switch led 0 10v dimmer switch

100-277vac 0 10v dimmer Wall switch for Dimming Control

The 0-10V dimmer is the earliest and simplest electronic lighting control signal system. It is compatible with most lamps on the market, easily achieving the ultimate lighting effect and is easy to install. It can save a lot of labor.

  • item no.:

    SMT-U-1CVDW2

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    Max.50mA

  • Certification:

    ETL,CE, FCC, ROHS

  • Warranty:

    5 years
inquiry now
product details

100-277vac  0 10v dimmer Wall switch for Dimming Control

1 Channel 0-10V Wall Switch for Dimming Control Input voltage is 100-277VAC universal voltage design suitable for installation and use in North America, 0 10V dimming design Rain Net dimming driver to 0V minimum brightness, when the voltage is 10V the device will operate at 100% state


  Installation Instructions

Please read before installing.

Model
 SMT-U-1CVDW2
 SMT-U-1CVDG2
Colour
 White
 Grey
Maximum Capacity (Limited by whichever is achieved first)
Input Voltage:AC110-277 V~50 / 60 Hz
Output Current (built-in DALI-bus power supply)
 50mA
loads
 120V:500W    277V:1000W


1、Turn power OFF at circuit breaker


WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.
2、Remove existing device & Mount the controller fixed seat

3、Label and remove existing wires

To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.

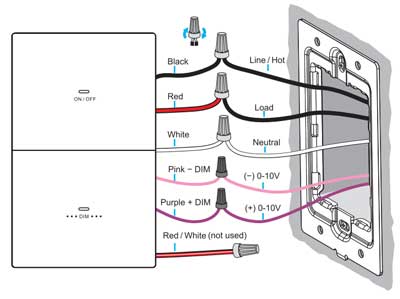

4、Connect the Dimmer (1)

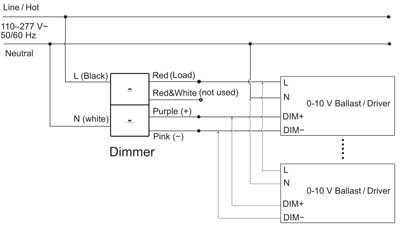

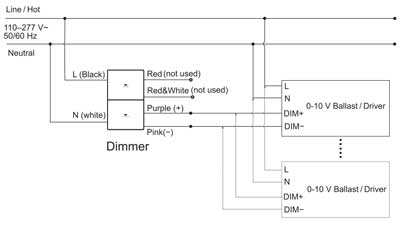

Simple Wiring
Note: The dimmer and 0-10V Ballast/driver are independently connected to the input power (AC mains)

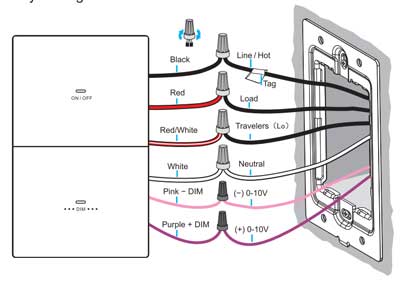

Simple Wiring



Note:Connect the AC input live wire (L) of the 0-10V Ballast/driver to the dimmer's Load wire(Red).
Troubleshooting:
If the dimmer can start ,but the 0-10V Ballast/driver fails to start, please check whether the hot wire and neutral wire at the dimmer (or 0-10V Ballast/driver ) input are reversed.

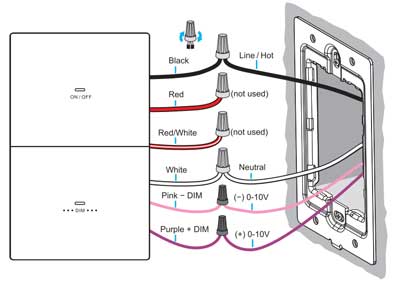

5、Connect the Dimmer (2)

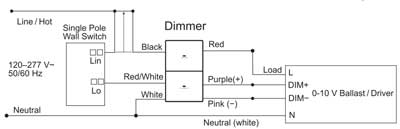

3-Way Wiring



Note: Use standard single pole switch can be combined with a controller to form a dual-control switch system


6、Mount the Dimmer

Press and snap into place to complete installation

7、Turn power ON at circuit breaker

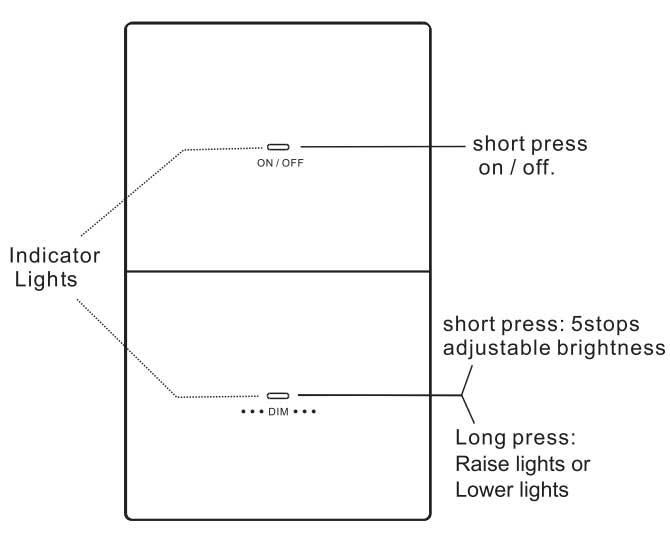

8、Setup Dimmer Operation

Note:When the dimming button (long press) reaches maximum or minimum brightness. The indicator light blinks slowly

Low-End Trim Adjustment
Optional
1.With the lights on and set to the lowest light level，turn the low-end trim dial counterclockwise until there is no flicker.
2.Turn lights off and on. If lights do not turn on or are not stable, turn the low-end trim dial clockwise slightly until there is no flicker.

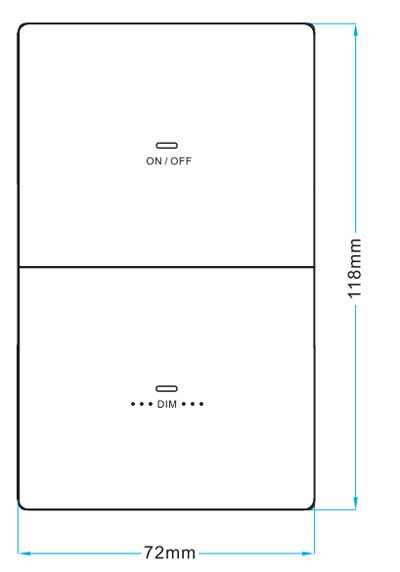

9、Product Dimension
