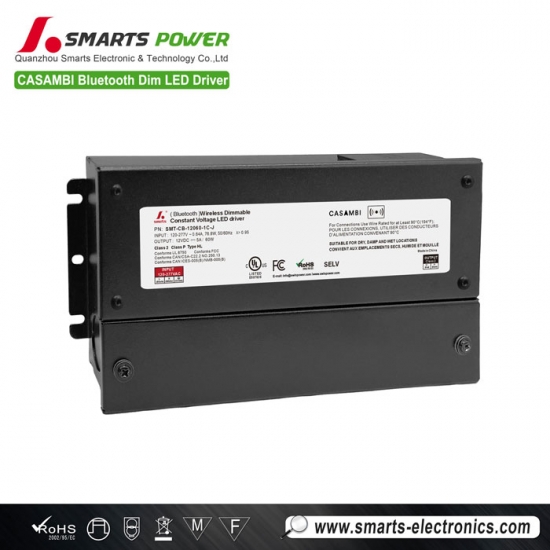

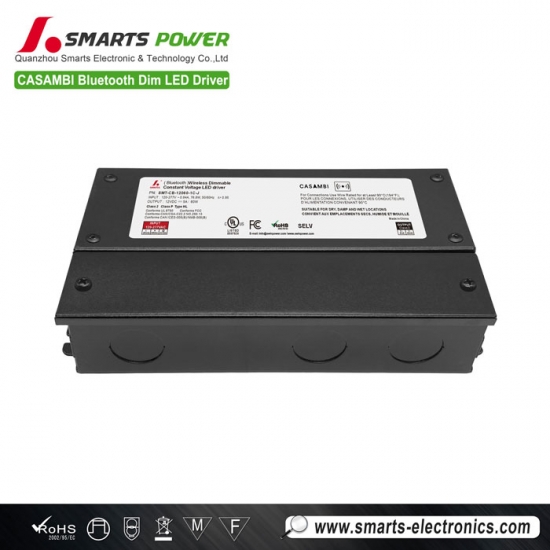

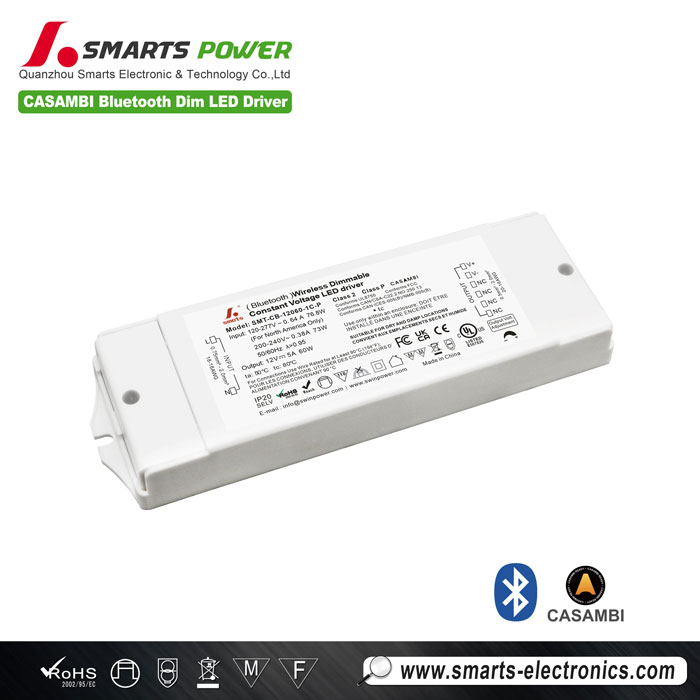

CASAMBI wireless dimmable 60W LED driver with 100-277VAC universal input voltage. Features built-in active PFC, constant voltage operation, and short-circuit/over-temperature/overload protection, making it suitable for smart LED lighting projects.
Specification
| Model | SMT-CB-12060-xC-J | SMT-CB-24060-xC-J | SMT-CB-48060-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class 2 / Class P / ROHS / REACH | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 376mVp-p | 248mVp-p | 208mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor @ full load | >0.95 | |||
| THD(Typ. ) @ full load | ≤10%@120VAC ≤15%@277VAC | |||
| Efficiency(Typ.) @ full load |
86.9%@120VAC 90.9%@277VAC |
87.0%@120VAC 89.8%@277VAC |
86.3%@120VAC 89.6%@277VAC |
|
| AC Current (Max.) | 0.64A | |||
| Inrush Current (Typ.) | 26.4A/136 us@50%Ipeak 120VAC 63.2A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV,Common Mode 2KV | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | |||
| Others | Net Weight | 1.2KG | ||
| Dimension | 188*95.4*42.7mm (L*W*H) | |||
| Packing | 415*265*270MM 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||

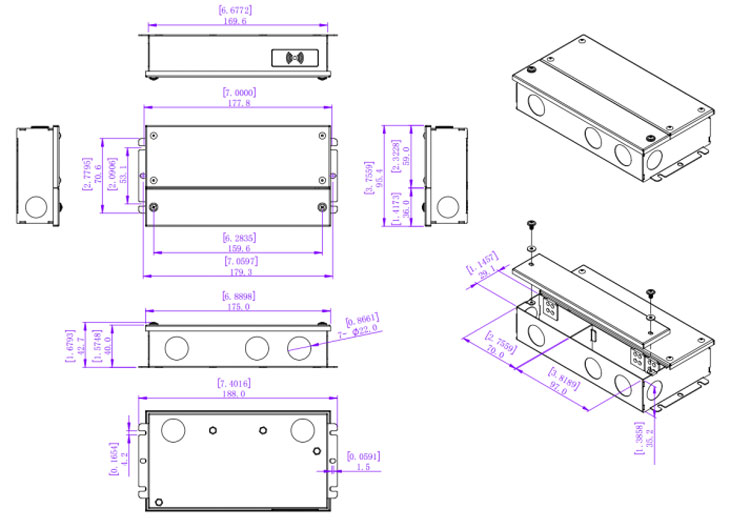

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 14 |
| 13A | 18 | |
| 16A | 22 | |
| 20A | 28 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 17 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 °C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| American wire gauge | |||||
| JM8506 Built-in antenna | |||||
| 12V&24V&36V&48V Version Input wire | Black(L) White(N) Green(G)(3*18AWG) | ||||
| Output wire | 1 Channel:DW | 2 Channel:CCT | 3 Channel:RGB | 4 Channel:RGBW | 5 Channel:RGBCW |
|
Red(V+) Black(V-) |
Black(V+) White/Gray(CW-) Yellow(WW-) |
Black(V+) Red(R-) Green/Gray(G-) Blue(B-) |
Black(V+) White/Gray(CW-) Red(R-) Green/Gray(G-) Blue(B-) |
Black(V+) White/Gray(CW-) Yellow(WW-) Red(R-) Green/Gray(G-) Blue(B-) |
|
| Output wire description | The cross-sectional area of the 12V &24V &48V Version output cable is 18AWG | ||||
| Remarks: | |||||
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.

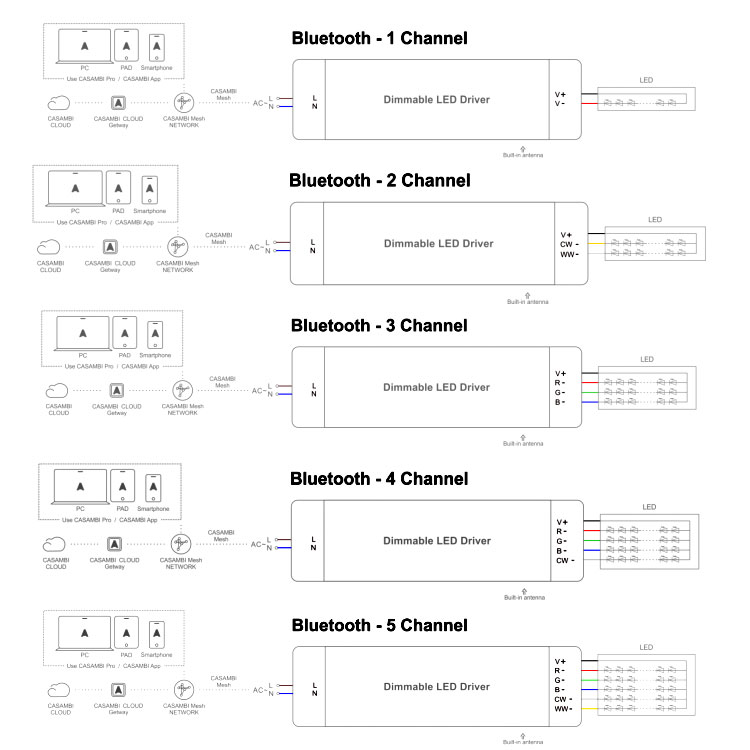

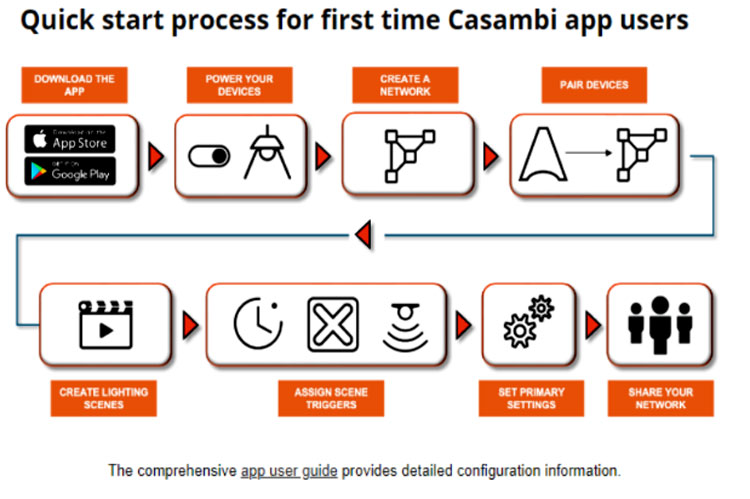

Dimming Operation
Related Products
|
Mode：SMT-CB-12200-1C-A intput voltage：100-277vac
Size : 206*69*42MM |
