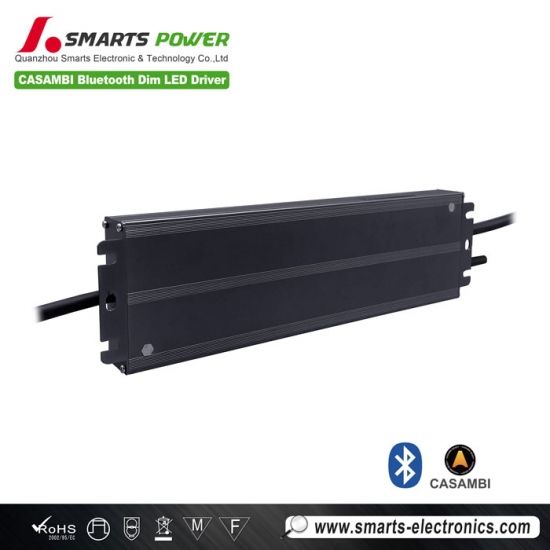

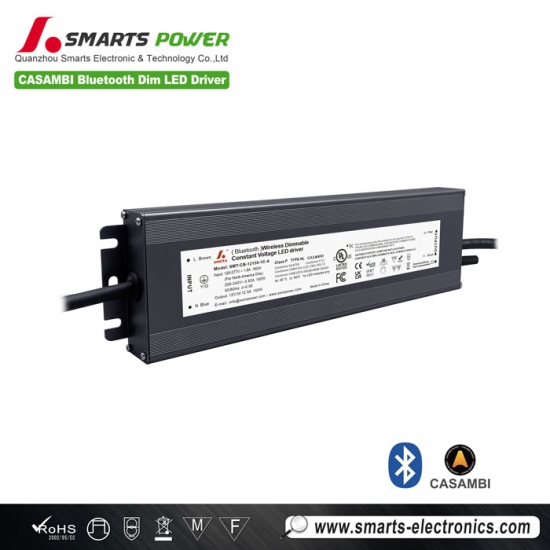

Aluminum casing CASAMBI Bluetooth Wireless constant voltage 150W led power supply manufacturers
Aluminum casing CASAMBI Bluetooth Wireless constant voltage 150W led power supply manufacturers
Aluminum casing CASAMBI Bluetooth Wireless constant voltage 150W led power supply manufacturers
This wireless dimming LED driver operates in constant voltage mode and features built-in active PFC. The dimming range is smooth, stable, and flicker-free between 0-100%. It can be dimmed via a mobile app and is suitable for indoor home LED lighting installations.
Specification
| Model | SMT-CB-12150-1C-A | SMT-CB-24150-1C-A | SMT-CB-48150-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±0.5V | |||
| Voltage Regulation | ≤0.5% | |||
| Rated current | 12.5A | 6.25A | 3.13A | |
| Rated power | 100W | |||
| Load Regulation | ≤2% | ≤1% | ||
| Input | Voltage Range | 110~277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor @ full load | <15% | |||
| THD(Typ.) @ full load | ≥0.98@230VAC | |||
| Efficiency @ full load | 89%@120VAC 91%@230VAC | |||
| AC Current (Max.) | 1.8A | |||
| Inrush Current (Typ.) | 35.2A, 510us@50%Ipeak 230VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | ||
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC CFR 47 Part 15,Subpart B (US) | |||
| Others | Net Weight | ?KG | ||
| Dimension | 279*78*25.1mm (L*W*H) | |||
| Packing | 20PCS/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
Mechanical Specification
1. Input cable 3*16AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 2*16AWG, Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna.
Dimming Operation
