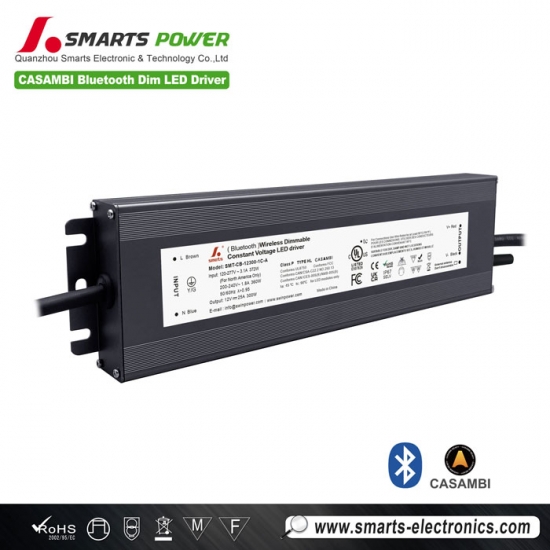

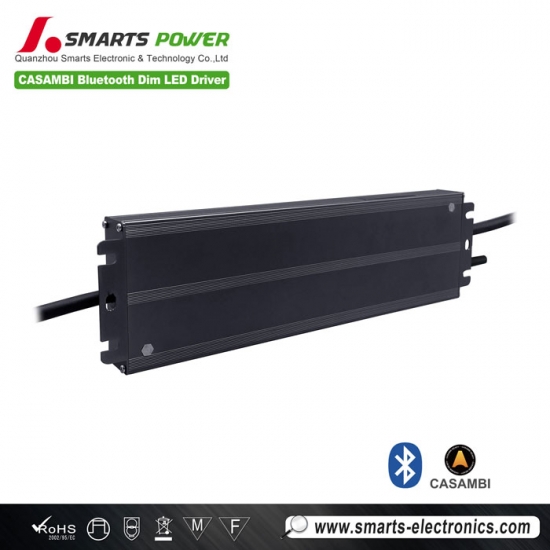

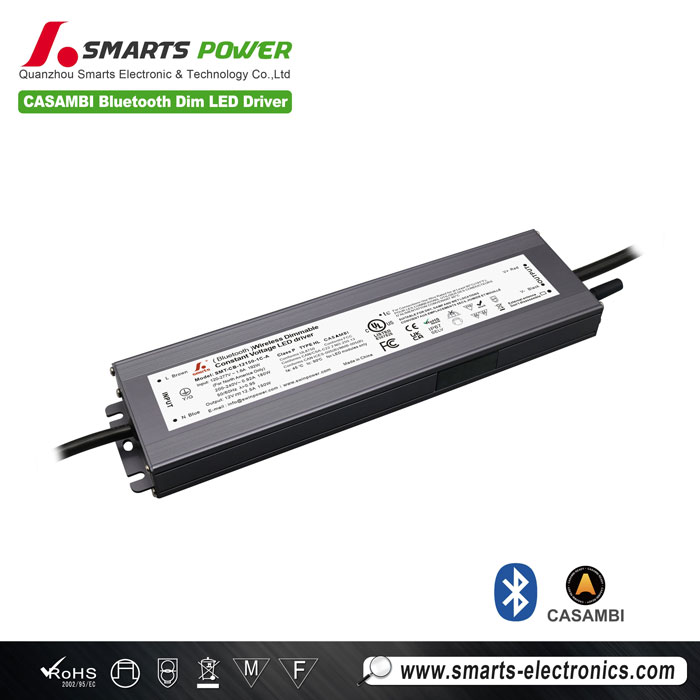

12V/24V 300w waterproof ip67 constant voltage dimmable led driver for outdoor lighting
12V/24V 300w waterproof ip67 constant voltage dimmable led driver for outdoor lighting
12V/24V 300w waterproof ip67 constant voltage dimmable led driver for outdoor lighting
Smartspower's new wireless dimming LED driver features built-in active PFC and a constant voltage operating mode. Its aluminum housing design offers IP67 waterproof rating and excellent heat dissipation. Installation is quick and easy, and lighting effects can be adjusted via a mobile app. It achieves smooth, stable, and flicker-free dimming.
Specification
| Model | SMT-CB-12300-1C-A | SMT-CB-24300-1C-A | SMT-CB-36300-1C-A | SMT-CB-48300-1C-A | |
| Certificate | UL / cUL / FCC / Class 2 / CE / RoHS / Reach | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ≤0.5% | ||||
| Rated current | 25A | 12.5A | 8.33A | 6.25A | |
| Rated power | 300W | ||||
| Load Regulation | ≤3% | ||||
| Input | Voltage Range | 110~277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor @ full load | ≥0.95 | ||||
| THD(Typ.) @ full load | ≤15% | ||||
| Efficiency @ full load |
≥89%@120VAC ≥90%@230VAC ≥91%@277VAC |
≥91%@120VAC ≥93%@230VAC ≥93%@277VAC |
≥89%@120VAC ≥90%@230VAC ≥91%@277VAC |
≥91%@120VAC ≥93%@230VAC ≥93%@277VAC |
|
| AC Current (Max.) | 3.2A | ||||
| Inrush Current (Typ.) | 45.6A, 440us@50%lpeak@120VAC 114A, 55us@50%lpeak@230VAC | ||||
| 94A, 480us@50%lpeak@277VAC | |||||
| No-load Power | ≤5W | ||||
| Leakage current | ≤0.5W | ||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after | ||||
| temperature drop | |||||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | Tc point temperature(Ta=40 ℃) | ≤95℃ | |
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No. 250.13 (US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) | ||||
| I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC Part 15B(US) | ||||
| Others | Net Weight | ?KG | |||
| Dimension | 279*78*25.1mm (L*W*H) | ||||
| Packing | 20PCS/CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance and load regulation . | |||||

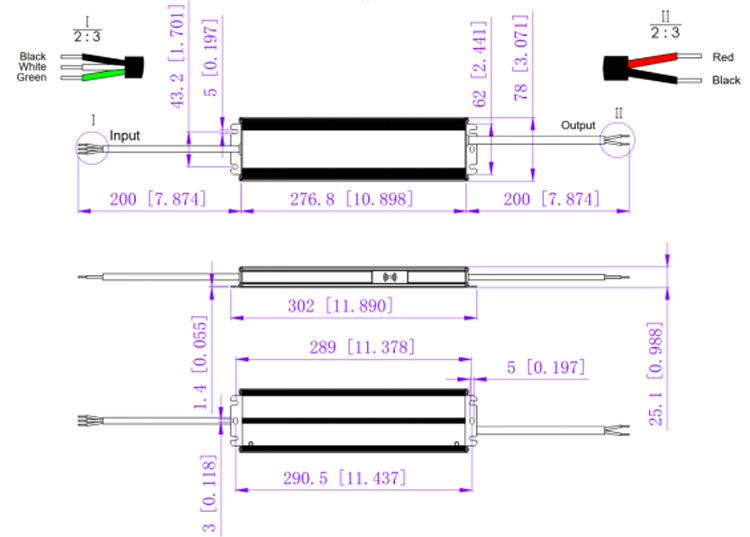

Mechanical Specification
1. Input cable 18AWG, Black cable (L), White cable (N), Green cable (G).
2. Output cable 12AWG(12V), 14AWG(24V/36V/48V), Red cable (+) to Positive side(+), Black cable (-) to Negative side (-).
3. Please make sure you connect these correctly, otherwise your product will not work correctly and could be damaged.
4. No dimming, with external antenna
Dimming Operation
Related Products
|
Mode：SMT-CB-12200-1C-A intput voltage：100-277vac
Size : 206*69*42MM |
