24v 24w constant voltage class 2 led power supply

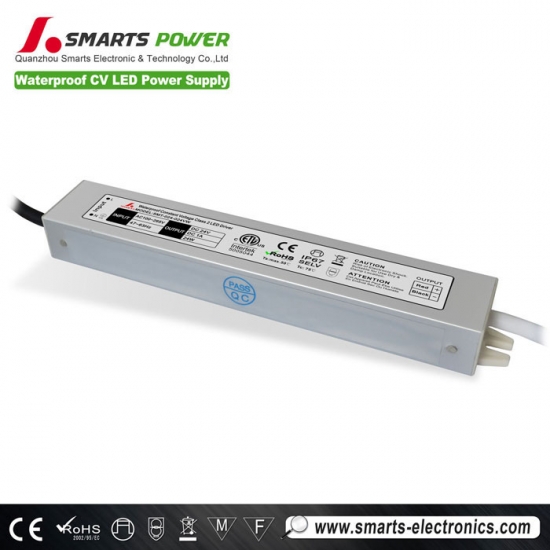

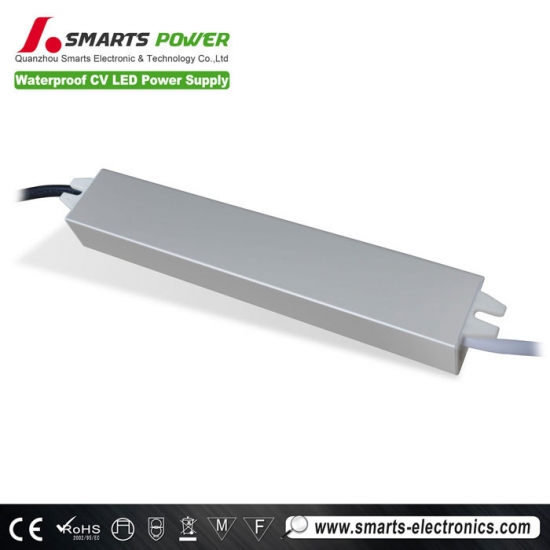

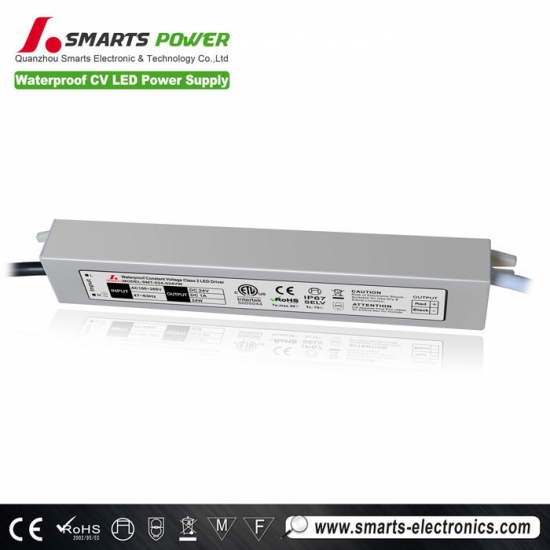

24v 24w constant voltage class 2 led power supply is 24V 1A 24w output led ac-dc single output led driver
SPECIFICAION
MODEL
SMT-012-024WW
SMT-024-024VW
SMT-036-026VW
OUTPUT
DC VOLTAGE
12V
24V
36V
RATED CURRENT
2.0Amp
1.0Amp
0.66Amp
CURRENT RANGE
RATED POWER
24W
24W
24W
RIPPLE&NOISE(max)
150mV
150mV
150mV
CURRENT TOLERANCE
±0.5V
±0.5V
±0.5V
SETUP RISE TIME
80ms/110,220VAC
81ms/110,220VAC
82ms/110,220VAC
HOLD UP TIME(Typ.)
60ms/220VAC
60ms/220VAC
60ms/220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>83%
>83%
>83%
AC CURRENT(Typ.)
3.5A/110,220VAC
2.0A/110,220VAC
1.5A/110,220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
UL/ROHS/CE Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
 |
 |
 |
 |
Specifications of constant voltage led power supply
- Constant voltage led driver, IP67
- Input volt.:100~265vAC
- Efficiency>82%
- Warranty: 2 years
- certification: CE,ROHS approval
- Size-- 182*29*20mm
- Net weight: 118g/pcs
- Case material--Alumium housing
Features of class 2 power supply
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current
- 100% full load burn-in test.
Product parameters of 24v 24w power supply
|
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |
|
SMT-012-024VW |
100-265V |
47~63HZ |
12±0.5V |
2.00A |
24W |
-25~50°C |
IP67 |
|
SMT-024-024VW |
100-265V |
47~63HZ |
24±0.3V |
1.00A |
24W |
-25~50°C |
IP67 |
|
SMT-036-024VW |
100-265V |
47~63HZ |
36±0.5V |
0.66A |
24W |
-25~50°C |
IP67 |
|
SMT-048-024VW |
100-265V |
47~63HZ |
48±0.3V |
0.50A |
24W |
-25~50°C |
IP67 |
