Non-dimmable LED Driver

300mA 23W 0-10V/PWM dimmable Constant Current LED driver

300mA 23W 0-10V/PWM led dimming driver;300ma constant current dimmable led driver;0-10v dimmable driver 23w
  • item no.:

    SMT-077-0300CD
  • brand:

    SMARTS
inquiry now
product details

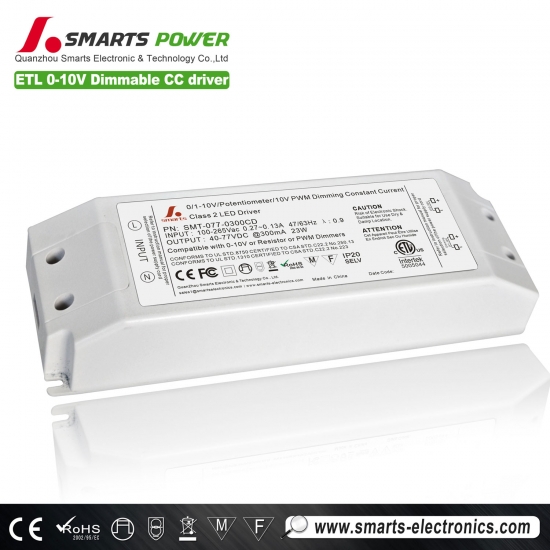

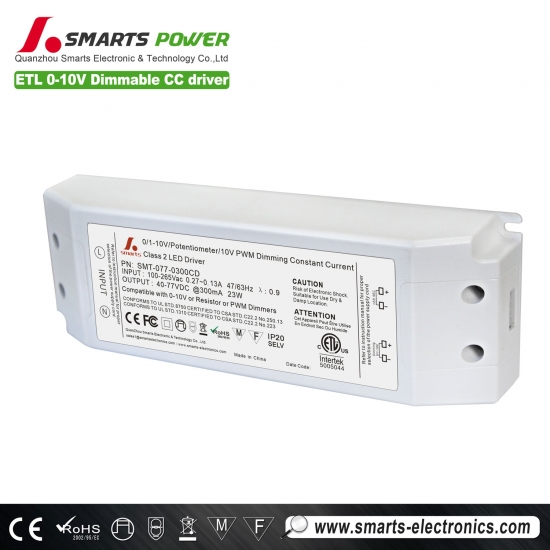

300mA 23W 0-10V/PWM dimmable Constant Current LED driver



  Product Description



Model

Input voltage(vAC)

Working

Frequency

 (Hz)

Output voltage

(vDC)

Output

Current

power

(Watt)

Working.

 Temp

Protection

grade

SMT-077-0300CD

100-265V

47~63Hz

40-77V

300mA

23W

-40~50°C

IP40

 ul 0-10v constant current dimmable drivers 300ma 23w

  Protection

  • Short Circuit:  Hiccup mode, recovers automatically after fault condition
  • Over voltage: <270VAC 0r =270VAC

  Safety &EMC

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)
  • EMC IMMUNITY :  Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)

  Features

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Integrity protection,over loading, over voltage ,over current.
  • 8Hrs and 100% full load burn-in test.

  Environment

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

  Safety

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

  Applications

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
