Non-dimmable LED Driver

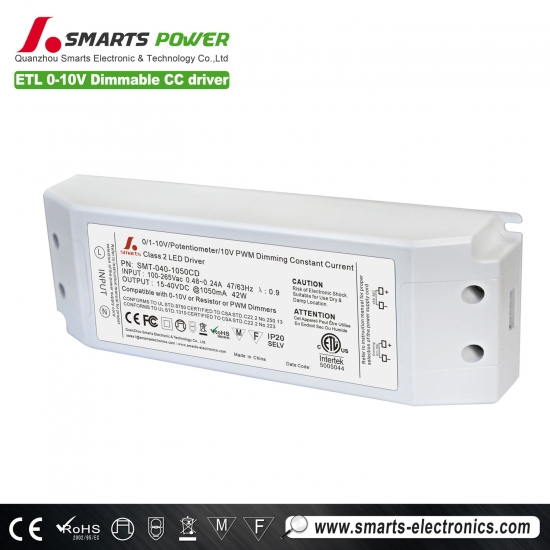

1050mA 42W 0-10V/PWM dimmable Constant Current LED driver

42w 0-10v dimmable driver 1050ma;1050ma constant current dimming led driver
  • item no.:

    SMT-040-1050CD
  • brand:

    SMARTS
inquiry now
product details

1050mA 42W 0-10V/PWM dimmable Constant Current LED driver

Model

SMT-065-0700CD

SMT-050-0900CD

SMT-040-1050CD

SMT-040-1200CD

Output

DC Current

700mA

900mA

1050mA

1200mA

Current Accuracy

±3%

Voltage Range

35-65V

20-50V

15-40V

20-40V

Rated power

45W

45W

42W

48W

Input

Voltage Range

100265VAC

Frequency Range

4763HZ

PF(Typ.

PF>0.9 5

Full Load EfficiencyTyp

>86%

>87%

>87%

>86%

AC Current (Typ.

0.24A

0.26A

0.23A

0.25A

Leakage current

0.7mA/110-220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environme

Working TEMP.

-40+50℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13. IP40

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

Others

Weight

0.55Kg

Size

180*60*34mmL*W*H

packing

Carton size: 355*215*215mm,     Carton: 20pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Product Description



 0-10v Dimmable LED Driver.png


  Product parameters


               Model

No.

Input

voltage(vAC)

Working

Frequency

(Hz)

Output

voltage

(vDC)

Output

Current

(mA)

Output

power
(Watt)

Working

Temp.

IP rate
SMT-100-0500CD 100-265vAC 47~63Hz 45-100V 0-500mA 50W -40~50°C IP67
SMT-065-0700CD 100-265vAC 47~63Hz 30-65V 0-700mA 45W -40~50°C IP67
SMT-050-0900CD 100-265vAC 47~63Hz 20-50V 0-900mA 45W -40~50°C IP67
SMT-040-1050CD 100-265vAC 47~63Hz 15-40V 0-1050mA 42W -40~50°C IP67
SMT-040-1200CD 100-265vAC 47~63Hz 20-40V 0-1200mA 48W -40~50°C IP67

  • 3 years warranty(We promise to replace new ones to you if there is any defective happen during the warranty period)


  Features


  • Constant current design with high accuracy.
  • International wide input voltage.
  • Wattage: 15w-200w
  • 8Hrs and 100% full load burn-in test.
  • High reliability designing solution
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications
  • High efficiency,save energy ,protected environment
  • High stability and low ripple, increase light efficiency and decrease light attenuation
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Passed high ,low temperature testing.
  • Integrity protection,over loading, over voltage over current


  Environment


  • Working Temperature : -40 ~ +50°C
  • Working Humidity : 20 ~ 95% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes


  Safety


  • Safety Standards :   EN61347-1 EN61347-2-13. IP40
  • Withstand Voltage :   I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
  • Isolation Resistance :  I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
  • EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
  • EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level


  Application


  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels


  Packaging & Shipping


Packing
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
1050mA 42W 0-10V/PWM dimmable Constant Current LED driver
900g/pcs 11kg/ctn 10pcs 324*298*188mm
