Non-dimmable LED Driver

AC to DC 24V 200W Constant voltage LED power supply

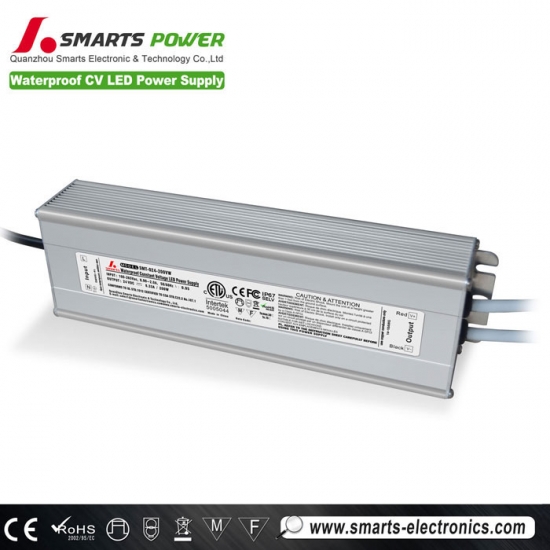

AC to DC 24V 200W Constant voltage LED power supply
  • item no.:

    SMT-024-200VW
  • lead time:

    15 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Trade Assurance
  • Input Voltage:

    100-265V
  • Output Voltage:

    24VDC
  • Output Current:

    8.33A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    2 years
inquiry now
product details


 SPECIFICAION
MODEL SMT-012-200VW SMT-024-200VW SMT-036-200VW
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 16.67A 8.33A 5.55A
CURRENT RANGE 0~16.67A 0~8.33A 0~5.55A
RATED POWER 200W 200W 150W
RIPPLE&NOISE(max) 150mV 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V ±0.5V
SETUP RISE TIME 80ms/110VAC, 220VAC
HOLD UP TIME(Typ.) 60ms/110VAC, 220VAC
INPUT VOLTAGE RANGE 90~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.) >0.95@110VAC ; >0.98@220VAC
EFFICIENCY(Typ.) ﹥91%
AC CURRENT(Typ.) 2.10A@110VAC; 1.01A@220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE ETL Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:3.0KVAC  IP-GND:3.0KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 Label  24V 200W Constant voltage LED power supply


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver



 Specifications


1. Modle: SMT-024-200VW

2. Input: 90-135/170-265vAC  /  47-63HZ

3. Output: 24V  8.33Amp  200Watt
4. Case material: Aluminum
5. Waterproof rate: IP67
6. Unit weight: 1300g
7. Product size: 240*96*43mm
8. Box size: 475*298*185mm
9. Pack qty: 5pcs/ctn
10.Pack weight: 13.5kg/ctn
11.Produt cord: 18AWG*20CM
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


 Features


1. High efficiency,save energy ,protected environment
2. High stability and low ripple, increase light efficiency and decrease light attenuation
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage
5. Integrity protection,over loading, over voltage ,over current
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test
9. Suitable for LED lighting


 Environment


1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity: -40~+80℃,10~99%RH


 Safety


* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
* Withstand Voltage : I/P-O/P: 3000KVAC
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC




 Applications


Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks

* Vehicle Lights Controller Panels,etc.

with short-circuit protection 24v LED driver for led display


 packing

IP67 waterproof led driver with overload protection
