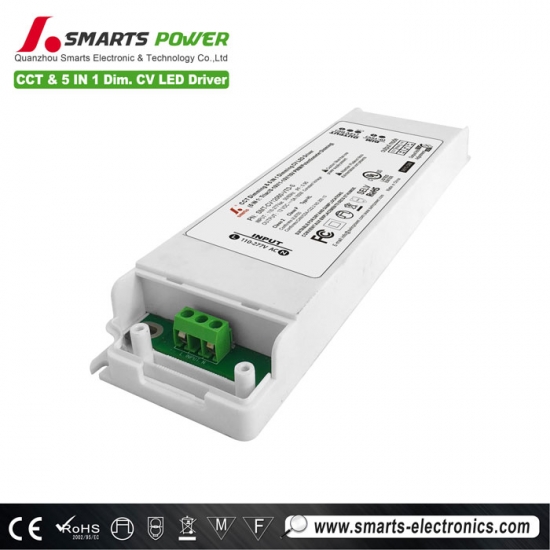

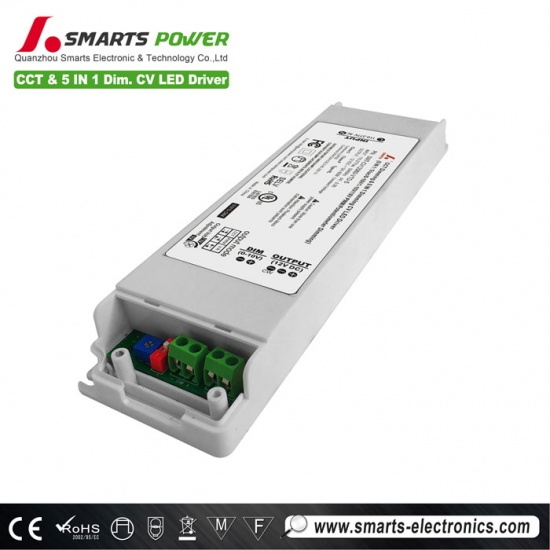

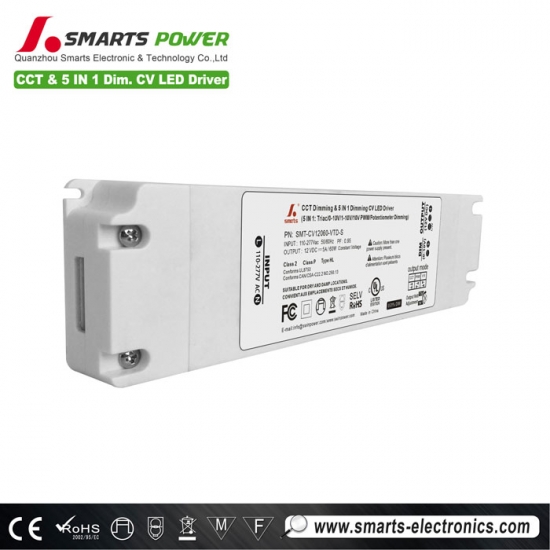

UL listed 12V 24V 36V 48Vdc Triac & 0-10V dimmable LED driver 60W CCT dimming avaiable

SMARTS POWER 5 in 1 Dimmable constant voltage LED Driver 60W CCT 2 colors dimming avaiable.Output voltage adjustable,12-48Vdc optional.
  • item no.:

    SMT-CV12060-VTD-S
  • brand:

    SMARTS
  • Output Voltage:

    12v-48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    60W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    Standard Size
  • Size:

    212*56*24mm
  • Weight:

    0.39kg
  • Certification:

    UL cUL FCC ROHS
  • Warranty:

    7 Years
inquiry now
product details

UL listed 12V 24V 36V 48Vdc Triac & 0-10V dimmable LED driver 60W CCT dimming avaiable



5 in 1 dimmable led driver 60Watt serves many dimming functions, such as Triac 0-10V 1-10V 10V PWM Potentiometer Dimming.Output voltage adjustable solve the voltage drop issue.




  Specification


Model Number SMT-CV12060VTD-S SMT-CV24060VTD-S SMT-CV36060VTD-S SMT-CV48060VTD-S
OUTPUT
Rated Power 60W
Rated Voltage 12V 24V 36V 48V
Rated Current 5.0A 2.5A 1.66A 1.25A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98 @120VAC  0.9 [email protected]  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 83%@120VAC   84%@277VAC  84% @ 120VAC  85% @277VAC
AC Current(Typ.) 0.9A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load ≤120% Hiccup mode, recovers automatically after fault condition is removed.
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 212x56x24mm (L*W*H)    N.W:0.38kg
Packing 20pcs/CTN   G.W:8.2KG   SIZE: 270*220*140mm
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Unique Selling Points


Voltage Reduce Output

Dimming range: 100%-0.01% Ultra Deep Amplitude

The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.

Works with single channel dim to warm LED strip/tape (2 wires).

Works with two channel CCT warm-dim LED strip/tape (3 wires).


Compatible PWM & Voltage Reduce output

compatible with RGBCW different LED fixture

compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/type



2Compatible PWM & Voltage Reduce output

compatible with RGBCW different LED fixture

compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/type


  Application


LED strip/LED tape/LED module

Residential Lighting

Commercial Lighting


  Series Information


Include 30-340W, single & multiple outputs



SMT-xxyyy-VTD-S   no Junction box



xx=12/24V/36V/48V

yyy=30/60/80/96/100/120/150/200/300W/340W

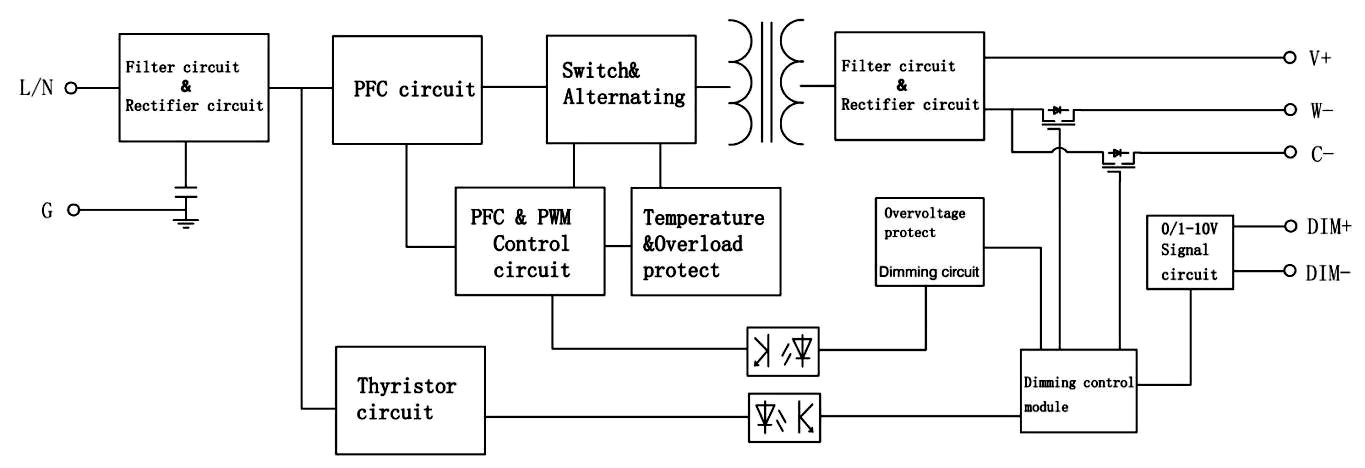

  Block Diagram
