Non-dimmable LED Driver

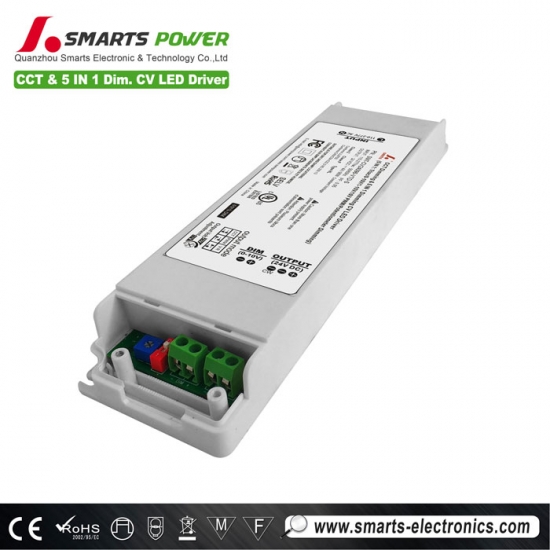

Triac 0-10V 1-10V 10V PWM Potentiometer 5 in 1 Dimmable LED driver 96W 2 colors dimming avaiable

5 in 1 dimmable led driver 96W Dimming range: 100%-0.01% Ultra Deep Amplitude,Super low loading request, works perfect at 10-100% load. Compliant with commercial lighting requirements.
  • item no.:

    SMT-CV24096-VTD-S
  • brand:

    SMARTS
  • Output Voltage:

    24Vdc 48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    96W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    Standard Size
  • Size:

    212*56*24mm
  • Weight:

    0.39kg
  • Certification:

    UL cUL FCC ROHS
  • Warranty:

    7 Years
inquiry now
product details

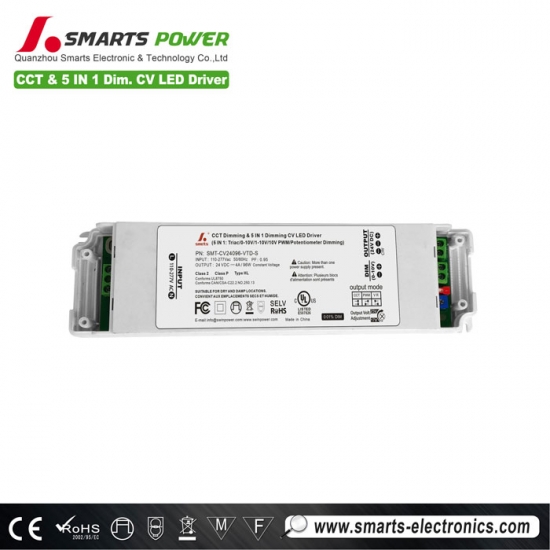

Triac 0-10V 1-10V 10V PWM Potentiometer 5 in 1 Dimmable LED driver 96W 2 colors dimming avaiable


24v led strip light driver 96W Compatible with Triac 0-10V 1-10V 10V PWM Potentiometer Dimming various dimming methods, powerful performance, can relieve inventory pressure



  Specification


Model Number SMT-CV24096VTD-S SMT-CV48096VTD-S
OUTPUT
Rated Power 96W
Rated Voltage 24V 48V
Rated Current 4.0A 2.0A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) [email protected]  [email protected]  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 85%@120VAC   86%@277VAC  86% @ 120VAC  87% @277VAC
AC Current(Typ.) 1.3A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 212x56x24mm (L*W*H)   N.W:0.39kg
Packing 20pcs/CTN  G.W:8.4KG   SIZE: 270*220*140mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Feature


•Dim-all: Triac/0-10V/1-10V/10V PWM/Potentiometer
•Switch to PWM or Voltage Reduce output  ref. To Unique Selling Points
•Switch to dual color temperature LED strips
•Dimming effect:
Voltage Reduce mode: 100%-0.01% dim, stepless dimming, flicker-free
PWM dim mode: 100-0.1% dim, flicker-free
•Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
•UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs
•Wet, damp, and dry location,
•Title 24 JA8 compliant
•Universal input, 100-277Vac
•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load
•Constant voltage type, fine tune of output voltage
•Super low loading request, works perfect at 10-100% load.
•Short-circuit, over-temperature, over-load protection.
•7 years warranty



  Series Information


Include 30-340W, single & multiple outputs



SMT-xxyyy-VTD-S   no Junction box



xx=12/24V/36V/48V

yyy=30/60/80/96/100/120/150/200/300W/340W


  product detail presentation


5 in 1 dimmable led driver 96W


  Wiring Diagram


1) Triac dimming -Triac/MLV load type

Notice: Not request neutral wire of dimmer.

5 in 1 Dimmable LED driver 96W


2) Triac dimming- ELV load type

Notice: Normally request neutral wire of dimmer.

5 in 1 Dimmable LED driver 96W


3) 0-10V dimming-only dimming

Notice: The dimmer cant cut off the power in this connecting way.

5 in 1 Dimmable LED driver 96W



40-10V dimming-only dimming

Notice: The dimmer can cut off the power in this connecting way.

5 in 1 Dimmable LED driver 96W



5Works with Two channel CCT warm-dim LED strip/tape (3 wires)

Triac dimming -Triac/MLV load type

Notice: Not request neutral wire of dimmer.

5 in 1 Dimmable LED driver 96W



6) 0-10V dimming-only dimming

Notice: The dimmer cant cut off the power in this connecting way.

5 in 1 Dimmable LED driver 96W


5 in 1 Dimmable LED driver 96W


  Related Products

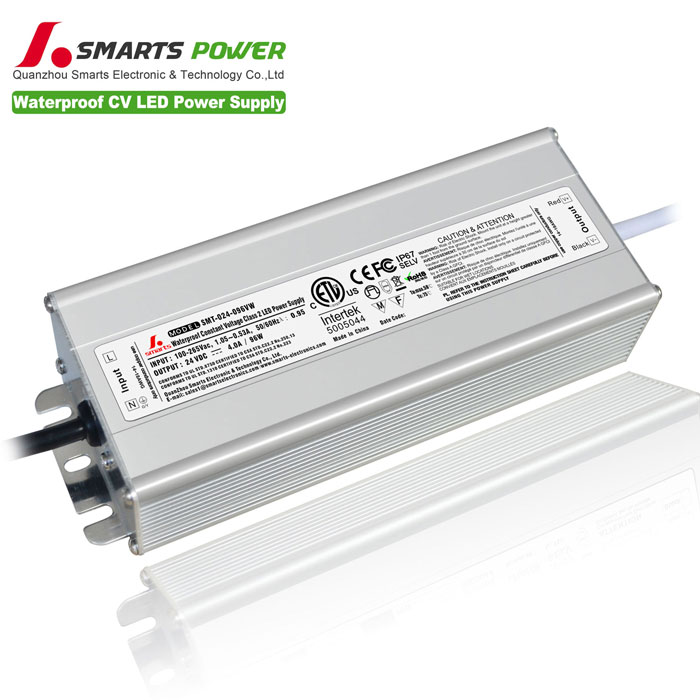

waterproof LED driver 96WSMT-012-096VW is our waterproof led driver 96W, high PF>0.95, high efficiency>88% with widely input voltage range.
