Non-dimmable LED Driver

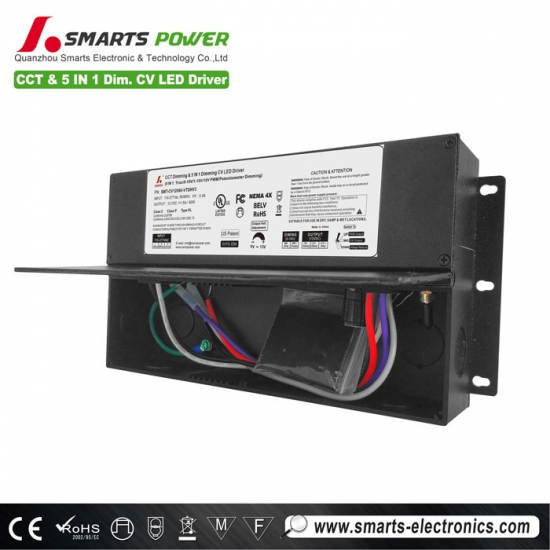

UL cUL 5 in 1 Multiple dimming J-Box led driver 60W Triac/0-10V/1-10V/10V PWM/Potentiometer dimming

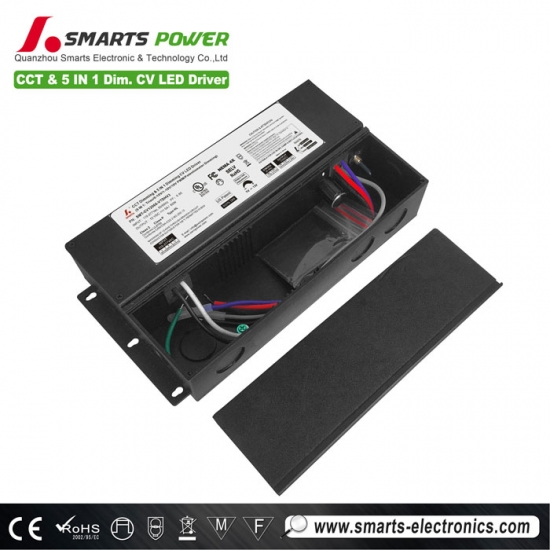

Triac & 0-10V dimmable J-Box led driver 60W Exclusive patent design of “Clamshell” junction box,It can better protect the normal work of the LED Driver 12V 24Vdc.
  • item no.:

    SMT-CV12060-VTDHV3
  • brand:

    SMARTS
  • Output Voltage:

    12v-48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    60W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    226.5*117.5*42.5
  • Weight:

    1.0kg
  • Certification:

    UL cUL FCC ROHS
  • Warranty:

    7 Years
inquiry now
product details

UL cUL 5 in 1 Multiple dimming J-Box led driver 60W Triac/0-10V/1-10V/10V PWM/Potentiometer dimming


12v 24v 36v 48v dc 5 in 1 dimmable led driver 60W can Switch to dual color temperature LED strips 100%-0.01% dimming flicker-free



  Specification


Model Number SMT-CV12060-VTDHV3 SMT-CV24060-VTDHV3
OUTPUT
Rated Power 60W 60W
Rated Voltage 12V 24V
Rated Current 5A,   CW mode: 2.5A*2CH 2.5A,   CW mode: 1.25A*2CH
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 110-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 83%@120VAC   84%@277VAC  84% @ 120VAC  85% @277VAC
AC Current(Typ.) 0.9A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 226.5x117.5x42.5mm (L*W*H)  N.W: 1kg
Packing 10pcs/CTN     G.W:11.2KG   SIZE:275*255*250mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Wire Specification


Power

Input

Output

0/1-10V Dimming





Function

Color

Spec.

Function

Color

Spec.

Function

Color

Spec.

60W

AC L

Black

18AWG

DC+

Red

18AWG

Dim+

Purple

18AWG



AC N

White

18AWG

DC-

Black

18AWG

Dim-

Pink

18AWG



Ground

Green

18AWG

CW-

Yellow

18AWG

/

/

/


  Feature


•Multiple dimming driver: Triac/0-10V/1-10V/10V PWM/Potentiometer
•Switch to PWM or Voltage Reduce output  ref. To Unique Selling Points
•Switch to dual color temperature LED strips
•Dimming effect:
Voltage Reduce mode: 100%-0.01% dim, stepless dimming, flicker-free,
PWM dim mode:100-0.1% dim, flicker-free
•Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
•Exclusive patent design of “Clamshell” junction box,low-profile
•Flexible wiring compartment to adjust the AC and DC wiring space
•UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs
•NEMA 4X for indoor and outdoor use; Wet, damp, and dry location,
•Title 24 JA8 compliant
•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load
•Constant voltage type, fine tune of output voltage  ref. to chart 1
•Super low loading request, works perfect at 10-100% load.
•Short-circuit, over-temperature, over-load protection.


  Series Information


Include 60-340W, single & multiple outputs



SMT-xxyyy-VTDHV3  in Junction box

SMT-xxyyy-VTD-S    no Junction box



xx=12/24/36/48V

yyy=60/96/100/150/192/200/300/340W

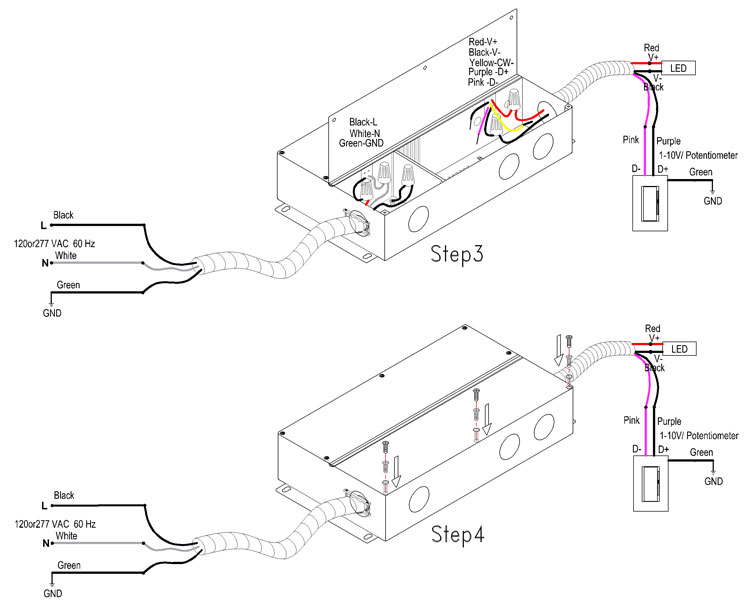

  Wiring Diagram

Works with single channel LED strip/tape (2 wires)

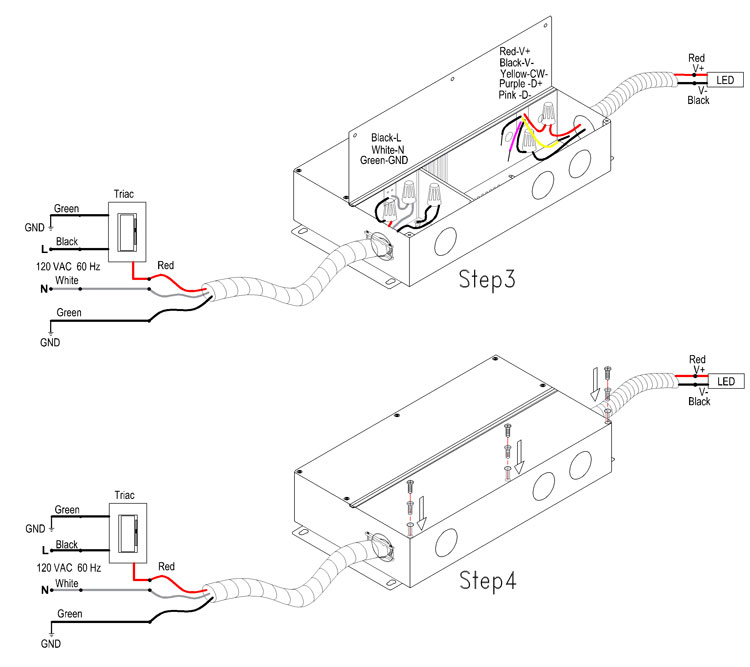

1)Triac dimming -Triac/MLV load type
Notice: Not request neutral wire of dimmer.


24v led dimmable driver 60W

2) 0-10V dimming-only dimming

Notice: The dimmer can’t cut off the power in this connecting way.

24v led dimmable driver 60W



Works with Two channel CCT warm-dim LED strip/tape (3 wires)

1) Triac dimming -Triac/MLV load type   (Notice: Not request neutral wire of dimmer.)

24v led dimmable driver 60W



2) 0-10V dimming-only dimming  (Notice: The dimmer cant cut off the power in this connecting way.)

24v led dimmable driver 60W



  Related Products

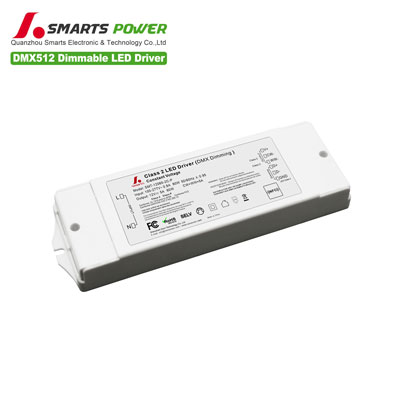

24v led dimmable driver 60WDMX512 LED driver 60W With the RDM (Remote Device Management) function, 100-277VAC, can be set the different address by mobile Easy NFC APP or special NFC


Mode:SMT-12060-2C-P
Intput voltage:100~277V AC

Outtput voltage:12-48Vdc
Certification: UL cUL

7 years warranty

Send Us An Inquiry

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

categories
hot products
related products
CCT 5 in 1 dimmable led driver 60w UL listed 12V 24V 36V 48Vdc Triac & 0-10V dimmable LED driver 60W CCT dimming avaiable
SMARTS POWER 5 in 1 Dimmable constant voltage LED Driver 60W CCT 2 colors dimming avaiable.Output voltage adjustable,12-48Vdc optional.
Triac & 0-10V  Dimmable LED driver 96W Triac 0-10V 1-10V 10V PWM Potentiometer 5 in 1 Dimmable LED driver 96W 2 colors dimming avaiable
5 in 1 dimmable led driver 96W Dimming range: 100%-0.01% Ultra Deep Amplitude,Super low loading request, works perfect at 10-100% load. Compliant with commercial lighting requirements.
Triac & 0-10V  Dimmable LED driver 100W CCT 5 in 1 Dimming IP20 constant voltage 100W LED strip light driver 12Vdc-48Vdc
Triac & 0-10V (5 in 1 )Dimmable 100W LED strip light driver Compatible PWM & Voltage Reduce output:compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/type.
Triac & 0-10V  Dimmable J-box 96W 277vac CCT Triac & 0-10V 5 in 1 dimmable LED driver 96W with junction box 24Vdc 48Vdc
led strip light with driver 96W Triac/0-10V/1-10V/10V PWM/Potentiometer dimming selectable.Constant voltage type, fine tune of output voltage.
Triac & 0-10V  Dimmable J-box 100W 2 colors dimming avaiable ul listed 5 in 1 dimmable led power supply 100W 0-100% flicker free dimming
led lights with transformer 100W can choose Triac/0-10V/1-10V/10V PWM/Potentiometer various dimming methods, compatible with various brands of dimmers
Triac & 0-10V  Dimmable J-box 150W driver UL cUL Triac & 0-10V dimmable led J-box driver 12v 150w support CCT Switch to dual color temperature LED strips
2 colors dimming avaiable Triac & 0-10V dimmable led J-box driver 12v 150w UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs listed.
Triac & 0-10V  Dimmable J-box 200W driver 277Vac 5 in 1 dimmable 12V 24V led J-box power supply 200W Constant voltage type fine tune of output voltage
UL cUL 5 in 1 led light power supply 200W suppliers Super low loading request, works perfect at 10-100% load
Triac & 0-10V  Dimmable J-box 300W driver CCT triac 0-10V 1-10V dimming Constant voltage led driver 300W with junction box 277Vac 300w led power supply
277Vac 300w led power supply with junction box Exclusive patent design of “Clamshell” junction box Title 24 JA8 compliant
