2 colors dimming avaiable ul listed 5 in 1 dimmable led power supply 100W 0-100% flicker free dimming

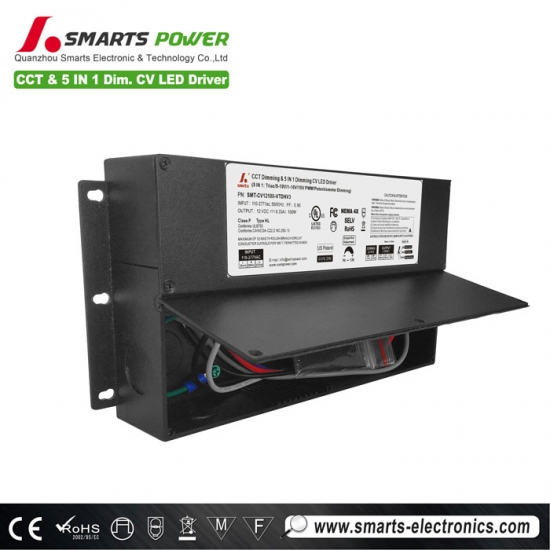

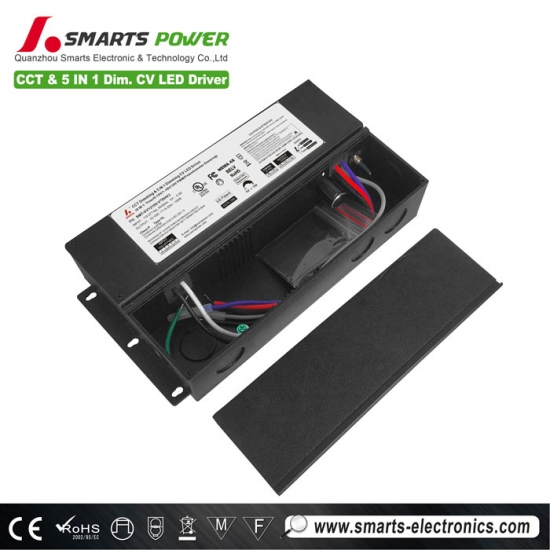

12vdc Triac & 0-10V (5 in 1) dimmable power supply 100W Title 24 JA8 compliant Flexible wiring compartment to adjust the AC and DC wiring space.



  Specification



Model Number SMT-CV12100-VTDHV3 SMT-CV24100-VTDHV3
OUTPUT
Rated Power 100W 100W
Rated Voltage 12V 24V
Rated Current 8.33A 4.15A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 85%@120VAC   86%@277VAC 86% @ 120VAC  87% @277VAC
AC Current(Typ.) 1.3A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 226.5*117.5*42.5mm (L*W*H)
Packing 10pcs/CTN     G.W:11.2KG   SIZE:275*255*250mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Unique Selling Points


      1)Voltage Reduce Output
√Dimming range: 100%-0.01% Ultra Deep Amplitude
√The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.
√Works with single channel dim to warm LED strip/tape (2 wires).
√Works with two channel CCT warm-dim LED strip/tape (3 wires).


2)Compatible PWM & Voltage Reduce output
√synchronously dimming the LEDs with different starting voltages.
√compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape


  Series Information


Include 60-340W, single & multiple outputs



SMT-xxyyy-VTDHV3  in Junction box

SMT-xxyyy-VTD-S    no Junction box



xx=12/24/36/48V

yyy=60/96/100/150/192/200/300/340W


  Block Diagram

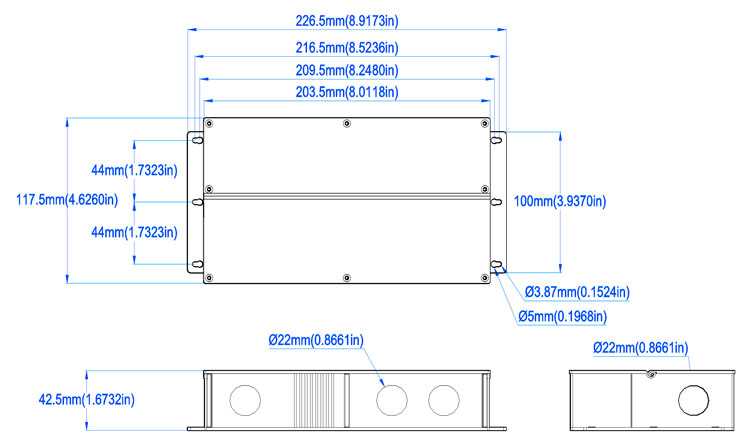

  Mechanical Diagram


Triac & 0-10V Dimmable J-box 96W


  Wiring Diagram


Works with single channel LED strip/tape (2 wires)
1)Triac dimming -Triac/MLV load type
Notice: Not request neutral wire of dimmer.


Triac & 0-10V Dimmable J-box 96W

2) 0-10V dimming-only dimming

Notice: The dimmer can’t cut off the power in this connecting way.

Triac & 0-10V Dimmable J-box 96W



Works with Two channel CCT warm-dim LED strip/tape (3 wires)

1) Triac dimming -Triac/MLV load type   (Notice: Not request neutral wire of dimmer.)

Triac & 0-10V Dimmable J-box 96W


2) 0-10V dimming-only dimming  (Notice: The dimmer cant cut off the power in this connecting way.)

Triac & 0-10V Dimmable J-box 96W
