Non-dimmable LED Driver

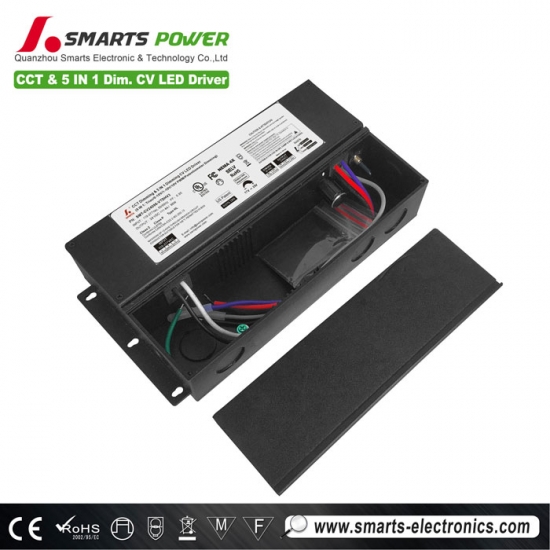

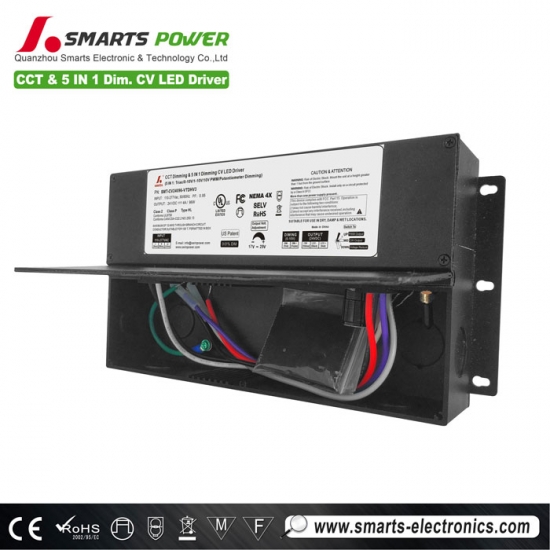

277vac CCT Triac & 0-10V 5 in 1 dimmable LED driver 96W with junction box 24Vdc 48Vdc

led strip light with driver 96W Triac/0-10V/1-10V/10V PWM/Potentiometer dimming selectable.Constant voltage type, fine tune of output voltage.
  • item no.:

    SMT-CV24096-VTDHV3
  • brand:

    SMARTS
  • Output Voltage:

    24Vdc 48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    96W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    226.5*117.5*42.5
  • Weight:

    1.0kg
  • Certification:

    UL cUL FCC ROHS
  • Warranty:

    7 Years
inquiry now
product details

277vac CCT Triac & 0-10V 5 in 1 dimmable LED driver 96W with junction box 24Vdc 48Vdc



Triac 0-10V 1-10V 10V PWM Potentiometer 5 in 1 dimming 96w led driver Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load.



  Specification


Model Number SMT-CV24096-VTDHV3
OUTPUT
Rated Power 96W
Rated Voltage 24V
Rated Current 4.0A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor(typ.) 0.95 @120VAC  0.93 @277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 83%@120Vac  86%@277Vac
AC Current(Typ.) 1.3A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit Shut down o/p voltage, re-power on to recovery
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 226.5*117.5*42.5mm (L*W*H)
Packing 10pcs/CTN     G.W:11.2KG   SIZE:275*255*250mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Wire Specification


Power

Input

Output

0/1-10V Dimming





Function

Color

Spec.

Function

Color

Spec.

Function

Color

Spec.

96W

AC L

Black

18AWG

DC+

Red

18AWG

Dim+

Purple

18AWG



AC N

White

18AWG

DC-

Black

18AWG

Dim-

Pink

18AWG



Ground

Green

18AWG

CW-

Yellow

18AWG

/

/

/


  Unique Selling Points


1)Voltage Reduce Output
√Dimming range: 100%-0.01% Ultra Deep Amplitude
√The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.
√Works with single channel CCT warm-dim LED strip/tape (2 wires).
2)Compatible PWM & Voltage Reduce output
√synchronously dimming the LEDs with different starting voltages.
√compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape


  Series Information


Include 60-340W, single & multiple outputs



SMT-xxyyy-VTDHV3  in Junction box

SMT-xxyyy-VTD-S    no Junction box



xx=12/24/36/48V

yyy=60/96/100/150/192/200/300/340W


  Mechanical Diagram


Triac & 0-10V Dimmable J-box 96W


  Wiring Diagram


Works with single channel LED strip/tape (2 wires)
1)Triac dimming -Triac/MLV load type
Notice: Not request neutral wire of dimmer.


Triac & 0-10V Dimmable J-box 96W

2) 0-10V dimming-only dimming

Notice: The dimmer can’t cut off the power in this connecting way.

Triac & 0-10V Dimmable J-box 96W



Works with Two channel CCT warm-dim LED strip/tape (3 wires)

1) Triac dimming -Triac/MLV load type   (Notice: Not request neutral wire of dimmer.)

Triac & 0-10V Dimmable J-box 96W


2) 0-10V dimming-only dimming  (Notice: The dimmer cant cut off the power in this connecting way.)

Triac & 0-10V Dimmable J-box 96W
