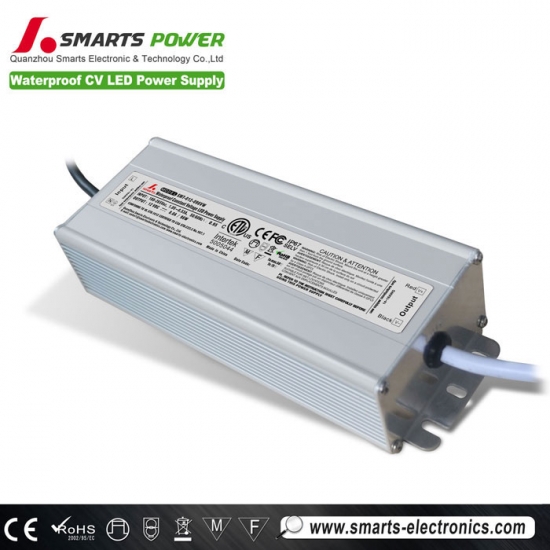

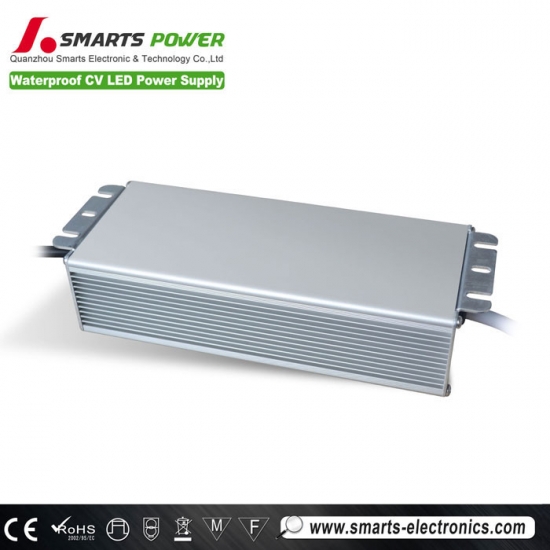

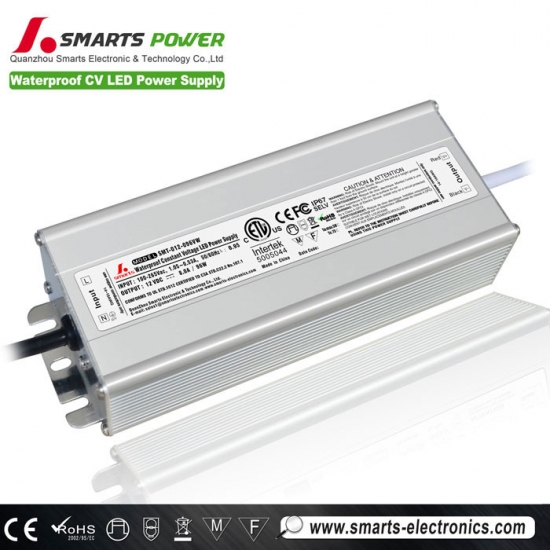

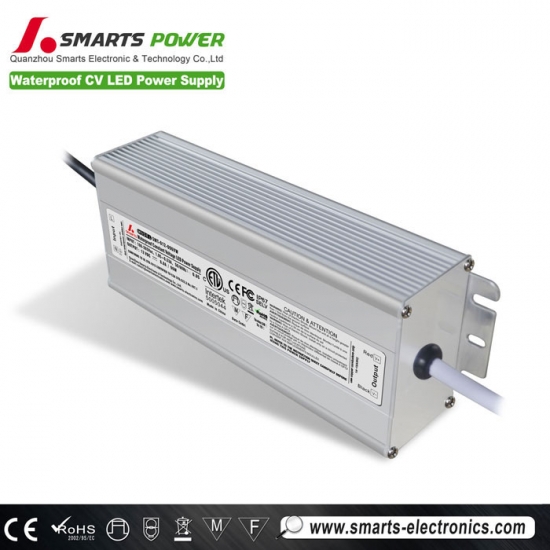

CE ETL 110V 220v 12v 8.33a led strip driver 100w
SMT-012-100VW is the ETL/CE listed 12v 100w LED driver. It steps down 100 – 240 V A/C to 12V DC for L.E.D. strip lights and other L.E.D. products. Outdoor rated housing for multi location usage.
| SPECIFICAION | |||||
| MODEL | SMT-012-096VW | SMT-024-096VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 8.33A | 4A | |||
| CURRENT RANGE | 0~8A | 0~4A | |||
| RATED POWER | 96W | 96W | |||
| RIPPLE&NOISE(max) | 150mV | 150mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| SETUP RISE TIME | 80ms/110V,220VAC | ||||
| HOLD UP TIME(Typ.) | 60ms/110V,220VAC | ||||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | 0.95 | ||||
| EFFICIENCY(Typ.) | ﹥87% | ||||
| AC CURRENT(Typ.) | 0.92A/110VAC, 0.86A/220VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof IP67) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(LVD) | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||||
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
|||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
Specification of 12v 8.33a 100w led driver
- Constant Voltage Design
- Universal AC input / Full range
- Expoxy encapsulated with IP67 level
- Protections: Short circuit / Overload / Over voltage
- Fully isolated Aluminum case
- Cooling by free air convection
- 100% full load burn-in-test
- Suitable for LED lighting and moving sign applications
