Non-dimmable LED Driver

Class 2 180w 12v input constant voltage power supply

Our SMT-012-180VTHJWV2 is 12v 180w triac led driver with UL listed,class 2, CE,ROHS, FCC approval which could drive amplighting flood lighting long-term durability.
  • item no.:

    SMT-012-180VTHJWV2
  • brand:

    SMARTS
  • payment:

    T/T, Paypal, Western Union
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12/24v
  • Output Current:

    3*5A
  • Working Mode:

    constant voltage
  • Certification:

    cUL/UL, RoHS,FCC, Class p,Class 2,type HL
  • Warranty:

    7 years warranty
inquiry now
product details

Class 2 180w 12v input constant voltage power supply

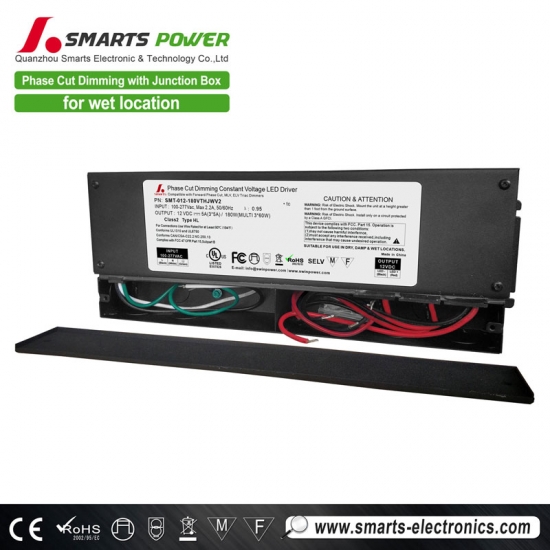

180w constant voltage triac led driver with junction box is high wattage Class 2 type which suitable for amplighting Landscape Lighting and moving sign applications.


 Specification



Model

SMT-012-180VTHJ (1.0 version)

SMT-012-180VTHJV2 (2.0 version)

SMT-012-180VTHJWV2  (3.0 version)

SMT-024-192VTHJ (1.0 version)

SMT-024-192VTHJV2 (2.0 version)

SMT-024-192VTHJWV2 (3.0 version)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±1%

±1%

±1%



Rated current

3*5A

2*4A

Rated power

180W(3*60W)

192W (2*96W)

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor(Typ.)@full load

[email protected]  [email protected]

[email protected]  [email protected]

THD(Typ.)@full load

<20%

Inrush Current(Typ.)

15A, 50%, 1.4ms

Full Load

Efficiency(Typ.)

86%@120VAC , 88%@277VAC

87%@120VAC , 89%@277VAC

AC Current(Typ.)

[email protected]

[email protected]

Inrush Current (Typ.)

19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC

19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

2.3Kg

Size

1.0version: 278*108*46mm / 2.0version: 278*110*45mm /

3.0version: 278*130*45mm (L*W*H)

packaging

340*210*245mm/8pcs /CTN    G.W.:19.50KG/CTN (1.0 version)





385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

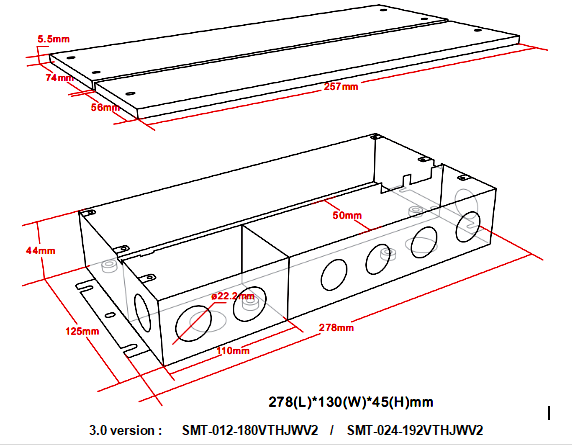

 Mechanical Specification


triac led driver


 Derating Curve



constant voltage power supply

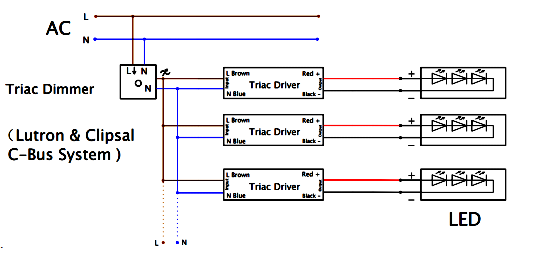

 Connecting Diagram


triac led driver

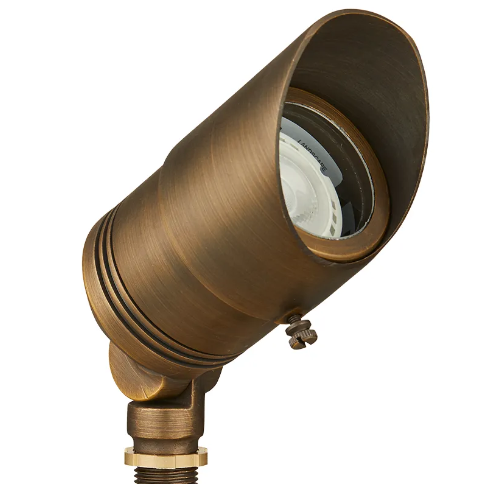

 Application


phase cut dimming power supply 180w constant voltage power supply could work with amplighting  downlighting high performance, Compatible with Forward phase, Reverse phase, Triac, ELV Dimmers.


led driver multiple leds
