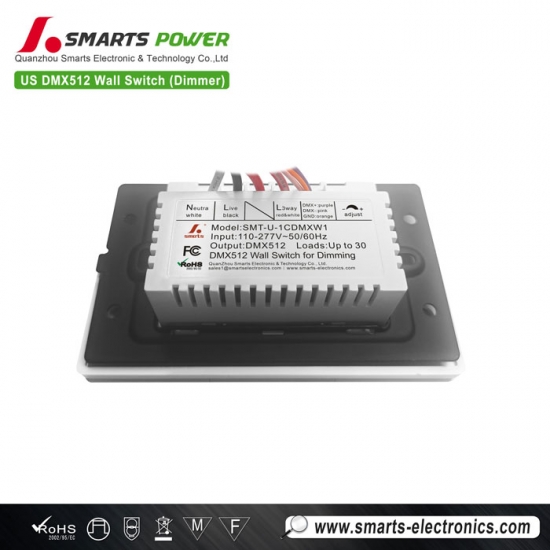

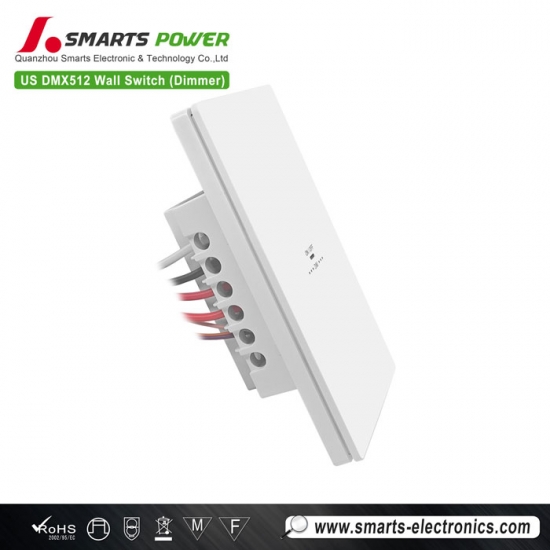

DMX 1 Key Push Button Wall Switch led in dimmer manufacturers

SmartsPower's new single-button wall-mounted dimmer switch with DMX output is as easy to operate as any standard household light switch. This DMX dimmer features a slim, luxurious design and a plastic housing available in white or gray. It's easy to install and fits in any home. It comes with a 5-year warranty.

  • item no.:

    SMT-U-1CDMXW1

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    Max.60mA

  • Certification:

    ETL,CE, FCC, ROHS

  • Warranty:

    5 years
inquiry now
product details

DMX 1 Key Push Button Wall Switch  led in dimmer manufacturers

This single-button DMX dimmer with a 100-277VAC input voltage range is wall-mounted and requires no addressing or parameter configuration. It features DMX input and output. It's designed for standard interior decor. Suitable for indoor lighting.


  Installation Instructions

Please read before installing.
Maximum Capacity (Limited by whichever is achieved first)
Input Voltage:AC110-277 V~50 / 60 Hz

Output Current (built-in DALI-bus power supply)
 Max.60mA
loads (DALI drivers or DALI decoders)
 Up to:30


1、Turn power OFF at circuit breaker


WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.
2、Remove existing device & Mount the controller fixed seat

3、Label and remove existing wires

To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.

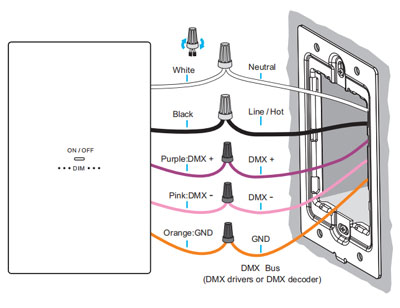

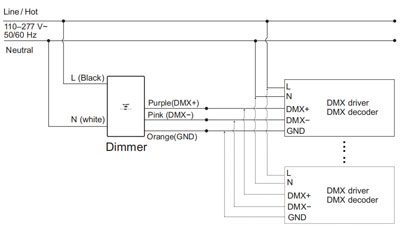

4、Connect the Dimmer (1)

Model
 SMT-U-1CDMXW1
 SMT-U-1CDMXG1
Colour
 White
 Grey



Note1：Both Dimmer & Driver require no address editing and are ready to use once connected.
Note2：The dimmer and DMX driver/decoder are independently connected to the input power (AC mains)

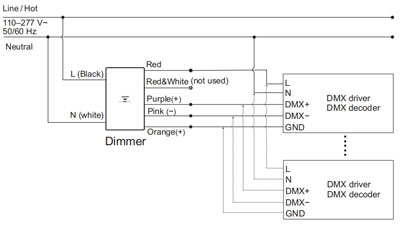

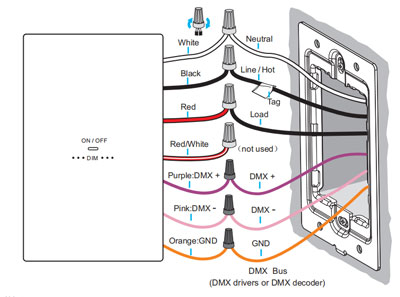

5、Connect the Dimmer (2)

Model
 SMT-U-1CRDMXW1
 SMT-U-1CRDMXG1
Colour
 White
 Grey
Single Pole Wiring (These models support single-pole wiring.)



Note1：Both Dimmer & Driver require no address editing and are ready to use once connected.
Note2：Connect the AC input live wire (L) of the DMX driver to the dimmer's Load wire(Red) .


Troubleshooting:Troubleshooting:
If the dimmer can start ,but the DMX driver fails to start, please check whether the hot wire and neutral wire at the dimmer(or DMX driver ) input are reversed.


6、Connect the Dimmer (3)

Model
 SMT-U-1CRDMXW1
 SMT-U-1CRDMXG1
Colour
 White
 Grey

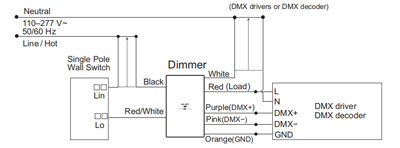

3-Way Wiring (These models support 3-way wiring.)



Note：Use standard single pole switch can be combined with a controller to form a dual-control switch system


7、Mount the Dimmer

Press and snap into place to complete installation

8、Turn power ON at circuit breaker


9、Setup Dimmer Operation

Note:When the dimming button (long press) reaches maximum or minimum brightness. The indicator light blinks slowly

Low-End Trim Adjustment
Optional
1.With the lights on and set to the lowest light level，turn the low-end trim dial counterclockwise until there is no flicker.
2.Turn lights off and on. If lights do not turn on or are not stable, turn the low-end trim dial clockwise slightly until there is no flicker.

10、Product Dimension
