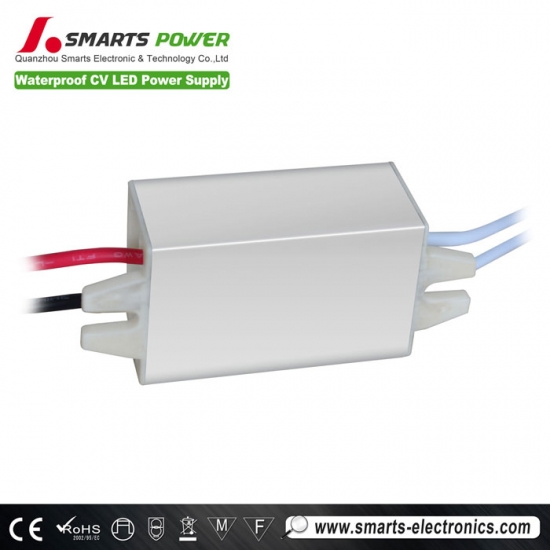

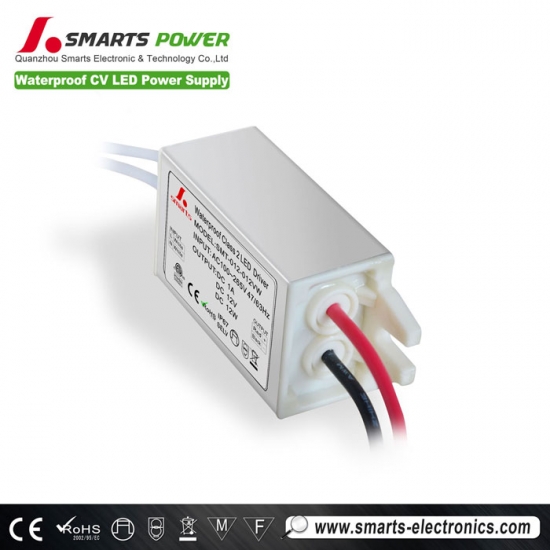

ETL 10 watt 12w led driver IP67 mini led electronic driver 12 volt
|
IP67 Waterproof ETL 10 watt 12w led driver IP67 mini led electronic driver 12 volt is used to power a wide range of 12v LED products such as LED Strip lights, panel lights, led module, etc . |
SPECIFICAION
| MODEL | SMT-012-012VW | SMT-024-012VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 1A | 0.5A | |||
| CURRENT RANGE | 0~1A | 0~0.5A | |||
| RATED POWER | 12W | 12W | |||
| RIPPLE&NOISE(max) | <700mV | <400mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| INPUT | VOLTAGE RANGE | 90~265VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >81% | >81% | |||
| AC CURRENT(Typ.) | 0.20A @110VAC / 0.099A@220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||

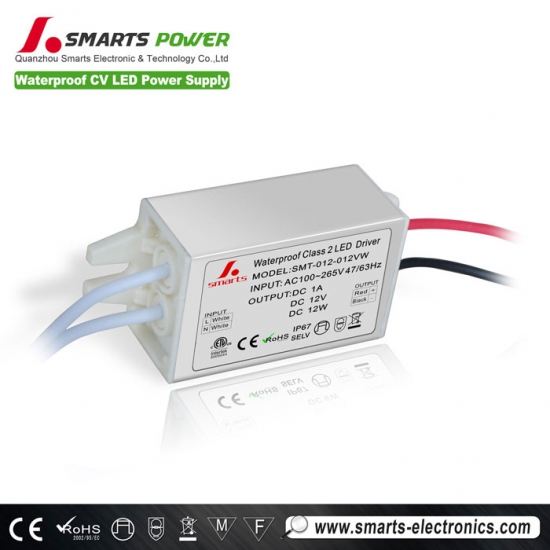

| Label |
 |
||||
Specifications of 10 watt led driver
| Model No | SMT-012-012VW |
| PRI: |
AC 100-265v - 47/63Hz |
| SEC: | 12v DC 1A |
| Output Power | 12w Max |
| Output Current | DC 1A |
| Length | 66mm |
| Width | 30mm |
| Depth | 20mm |
| Max Case Temp | 80°C |
| Max Ambient Temp | 50°C |
| Pack Quantity | 100pcs Driver |

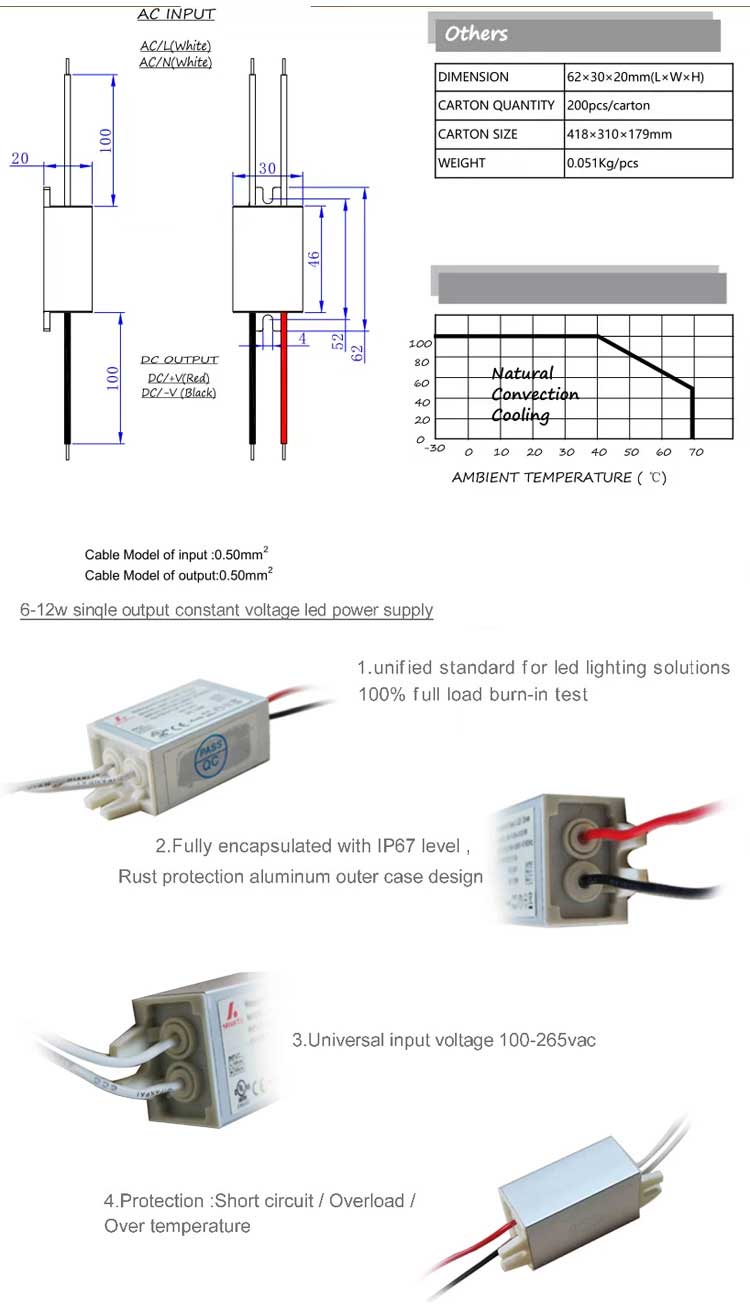

Mechanical Specification
- Cable Model of input :0.50mm2
- Cable Model of output:0.50mm2
constant voltage power supply 12 vdc 12w with mini size
