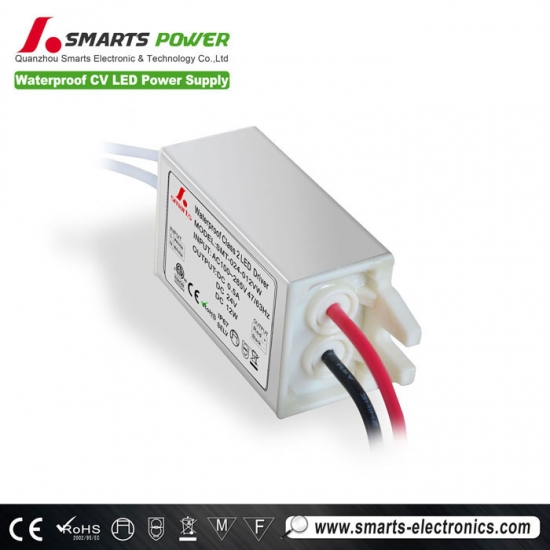

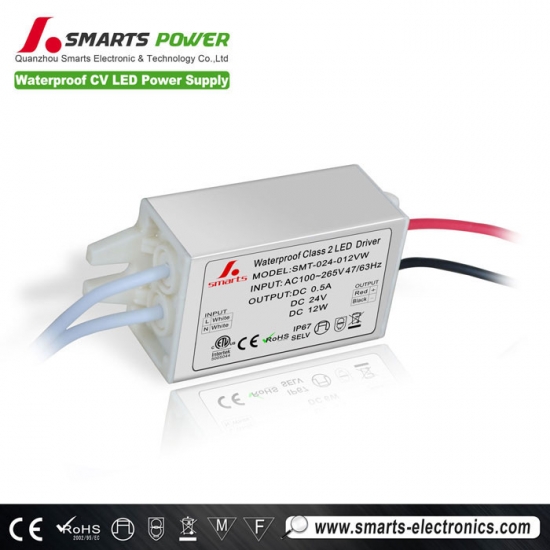

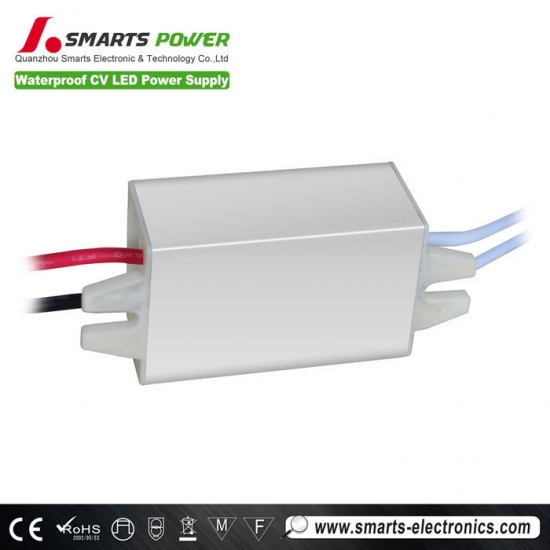

class 2 constant voltage 24v 12w led driver
class 2 constant voltage 24v 12w led driver is Input:100~265vAC / 47-63HZ,, Output : 24V @0.5A 12W, Energy transfer: AC-DC, 2 years warranty led driver.
SPECIFICATION
| MODEL | SMT-012-012VW | SMT-024-012VW |
|
|
|
| OUTPUT | DC VOLTAGE | 12V | 24V |
|
|
| RATED CURRENT | 1A | 0.5A |
|
|
|
| CURRENT RANGE | 0~1A | 0~0.5A |
|
|
|
| RATED POWER | 12W | 12W |
|
|
|
| RIPPLE&NOISE(max) | <700mV | <400mV |
|
|
|
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V |
|
|
|
| INPUT | VOLTAGE RANGE | 90~265VAC |
|
|
|
| FREQUENCY RANGE | 47~63Hz |
|
|
||
| POWER FACTOR(Typ.) |
|
|
|
||
| EFFICIENCY(Typ.) | >81% | >81% |
|
|
|
| AC CURRENT(Typ.) | 0.20A @110VAC / 0.099A@220VAC |
|
|
||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
What's the specifications of 24v led driver?
- Input:100~265vAC / 47-63HZ
- Output : 24V @0.5A 12W
- Working mode: Constant voltage
- Energy transfer: AC-DC
- Efficiency: 82%
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Aluminum housing
- Waterproof rate: IP67
- Produt cord:connecting terminal(IP20) / 18AWG*20CM
- CE, UL&CUL, ROHS approval
- 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Product parameters
|
Model |
Input voltage(AC V) |
Working Frequency (Hz) |
Output voltage (DC V) |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
|
SMT-012-009VW |
100-265V |
47~63Hz |
12v |
0.75A |
9W |
-25~50°C |
IP67 |
|
SMT-024-009VW |
100-265V |
47~63Hz |
24v |
0.38A |
9W |
-25~50°C |
IP67 |
|
SMT-012-012VW |
100-265V |
47~63Hz |
12v |
1.00A |
12W |
-25~50°C |
IP67 |
|
SMT-024-012VW |
100-265V |
47~63Hz |
24v |
0.50A |
12W |
-25~50°C |
IP67 |
