ETL 110V 120V ac dc 12v 100w constant voltage led driver
Features of 100w led driver

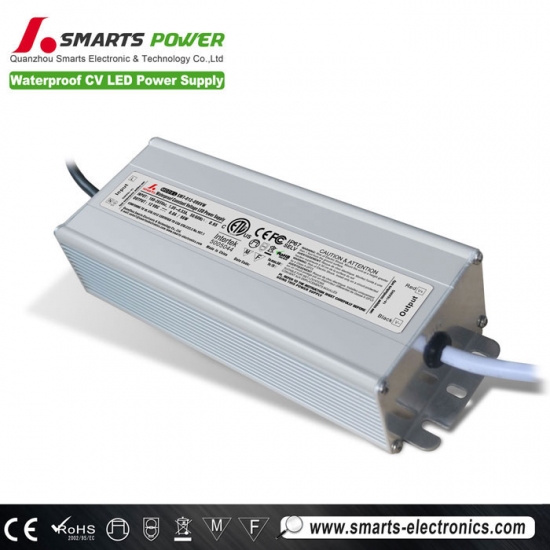

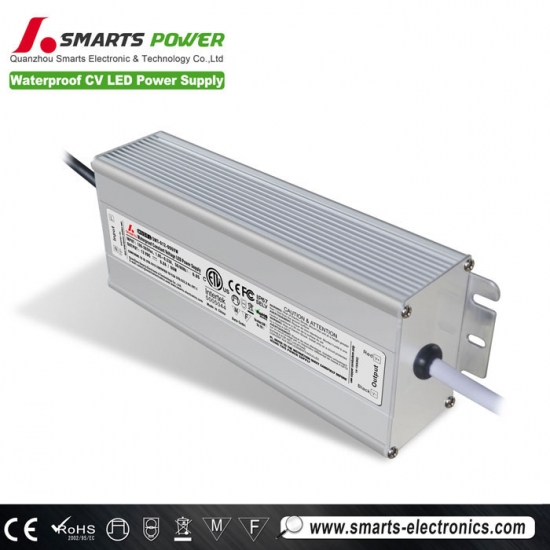

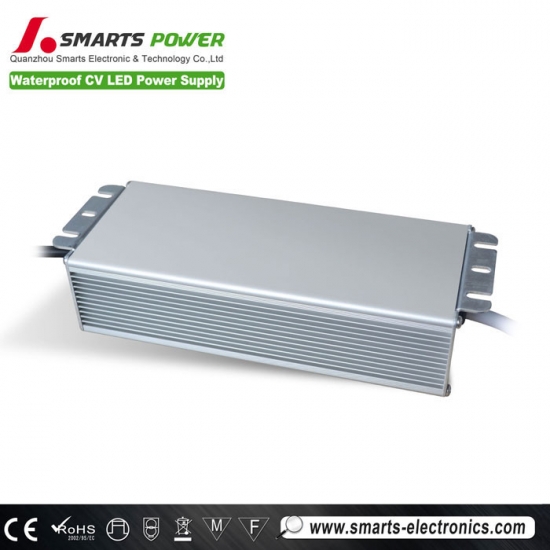

Smarts SMT-012-096VW led driver 12v 100w, input voltage is full range 100-265Vac 47-63Hz, output voltage is 12 volt, output wattage is 100 watt, output current is 8.3 amp. It is constant voltage single output version led driver. The dimension of 100w led driver is 200*68*53mm. For this module we design it with high PF> 0.95 and high Efficiency> 0.88. The waterproof rate is IP67 aluminum led driver. All constant voltage led driver got ETL, CE( EMC+LVD), ROHS approval. (ETL file# 5005044). We give 3 years warranty. Short circulit/Over load/over voltage/over temp protections.
SPECIFICATION
MODEL
SMT-012-096VW
SMT-024-096VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
8.33A
4A
CURRENT RANGE
0~8A
0~4A
RATED POWER
96W
96W
RIPPLE&NOISE(max)
150mV
150mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110V,220VAC
HOLD UP TIME(Typ.)
60ms/110V,220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
0.95
EFFICIENCY(Typ.)
﹥87%
AC CURRENT(Typ.)
0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110VAC, 220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof IP67)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
CE ETL Mark(LVD)
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
 |
 |
 |
 |
