Non-dimmable LED Driver

High PF class 2 led lighting driver 120vac 24vdc 90w

Smarts' ETL CE approved 24v 90w class 2 led driver has high pf and efficiency , and full input voltage 100-265vac , which can be used on 24v LED lights
  • item no.:

    SMT-024-090VW
  • lead time:

    about 7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, credit card ,western union
  • Input Voltage:

    100-265vac
  • Output Voltage:

    24v
  • Output Current:

    90w
  • Working Mode:

    3.75a
  • Certification:

    ETL,CE
  • Warranty:

    3 years
inquiry now download
product details

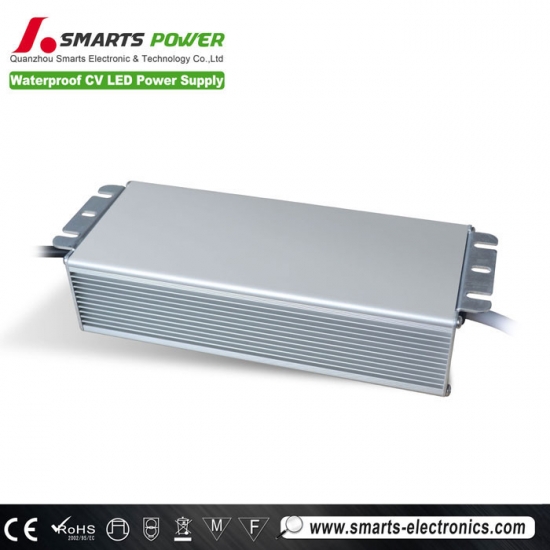

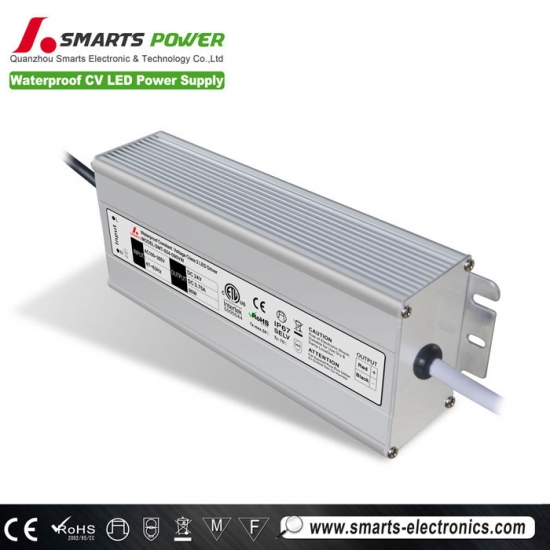

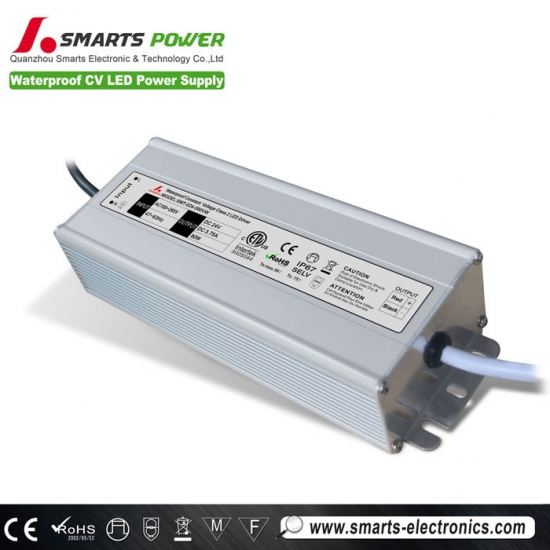

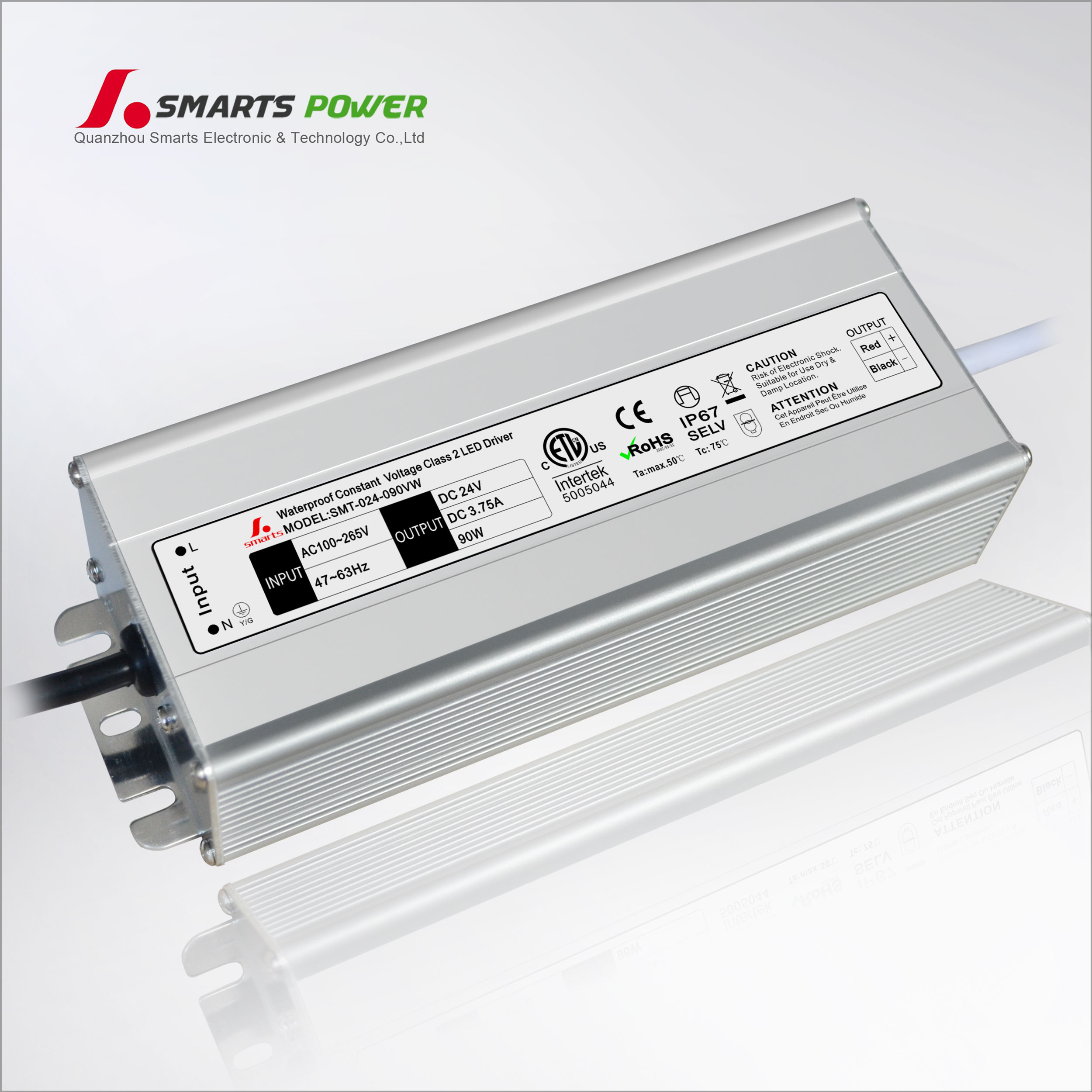

High PF class 2 led lighting driver 120vac 24vdc 90w

This 90watt 24V class 2 led driver is a waterproof, sealed unit that is designed to be surface mounted.This driver does not have to be enclosed in a junction box.This is the perfect driver for long runs of LED Flex strip and RGB Flex strip , it's suitable for indoor or outdoor installation in dry or damp locations due to it's IP67 rating and is protected for short circuit, over load and over temperature


SPECIFICAION
MODEL SMT-012-090VW SMT-024-090VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 7.5A 3.75A
CURRENT RANGE 0~7.5A 0~3.75A
RATED POWER 90W 90W
RIPPLE&NOISE(max) 150mV 140mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/110VAC
HOLD UP TIME(Typ.) 60ms/110VAC
INPUT VOLTAGE RANGE 100~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥83%
AC CURRENT(Typ.) 0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof IP67)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE UL Mark(LVD)
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 Label  High PF class 2 led lighting driver 120vac 24vdc 90w


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver




 Features of led driver 120vac 24v 90w


1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test

3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
9. Suitable for LED lighting



 Specifications of class 2 led driver


1. Modle: SMT-024-090VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 24V  3.75Amp  90Watt
4. Waterproof rate: IP67
5. Case material: Aluminum
6.Pack qty: 10pcs/ctn
7.Pack weight: 13kg/ctn
8.Produt cord: 18AWG*20CM
9. Unit weight: 900g
10. Product size: 200*68*53mm
11. Box size: 315*215*210mm



 Environment


1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity: -40~+80℃,10~99%RH





 Applications


Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display






 Why choose Smarts Electronics


We are the manufacturer of high-tech research and development in LED control system.
2.Most of our LED controllers have got the ETL, CE, ROHs certificates.
3..OEM and ODM are welcome.
4.Professional team will follow the whole after-sale.
5.A variety of shipping methods for your choice.
6.Prompt delivery and professional after-sales service.
