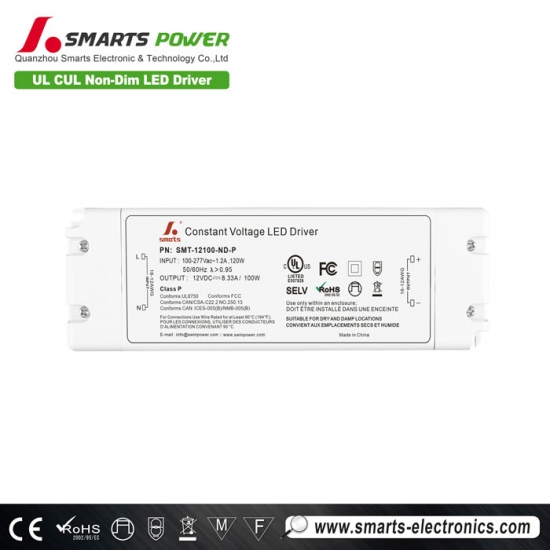

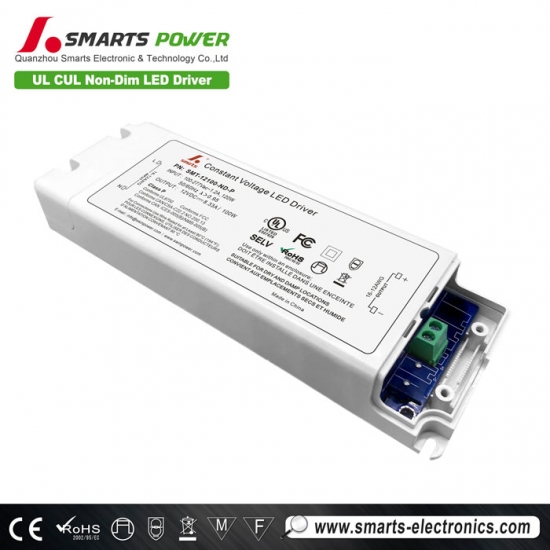

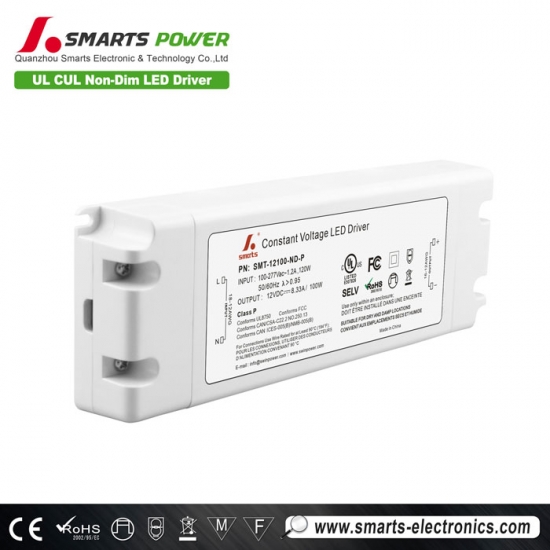

Plastic housing 12/24/36/48 volt 100w Non dimmable constant voltage led driver for indoor
This 100w Non dimmable led power supply has built-in active PFC function. The working efficiency is up to 91%. The plastic shell design has good heat dissipation and waterproof level ip20. It complies with global safety lighting regulations. UL certified, mainly sold in North America.
Specification
| Model | SMT-12100-ND-P | SMT-24100-ND-P | SMT-36100-ND-P | SMT-48100-ND-P | |
| Certificate | UL / FCC / Class P / SELV / CE / RoHS / REACH | ||||
| Output | Rated current | 12V | 24V | 36V | 48V |
| DC Voltage | 8.33A | 4.17A | 2.78A | 2.08A | |
| Rated power | 100W | ||||
| Current Tolerance | ±0.5V | ||||
| Load Regulation | ≤3% | ||||
| Voltage Regulation | ≤0.5% | ||||
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor @ full load | ≥0.95 | ||||
| Efficiency @ full load |
≧85%@120VAC ≧89%@277VAC |
≧88%@120VAC ≧91.5%@277VAC |
≧86%@120VAC ≧89.5%@277VAC |
≧87%@120VAC ≧90.5%@277VAC |
|
| AC Current (Max.) | 1.2A | ||||
| THD(Typ.)@full load | ≤20%@ full load | ||||
| Inrush Current (Typ.) | 51A@50%Ipeak 208us @120VAC,118A@50%Ipeak 452us @277VAC. | ||||
| Leakage current | ≤0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed | |||
| Over Load | ≤120%,>120% Constant current mode, automatically recovers after an exception is removed | ||||
| Over Temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover | ||||
| after cooling | |||||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 -90%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750 (US) | |||
| EMC Emission | FCC Part 15 Subpart B; ANSI C63.4a-2017 | ||||
| EMC Immunity | FCC/ICES do not request this test (US) | ||||
| Withstand voltage | I/P-O/P:1.88KVac (US) | ||||
| Harmonic test standard | IEC/EN 61000-3-2 | ||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||
| Lightning surge | Line to line: 2KV | ||||
| Stroboscopic | Stroboscopic test standards | IEEE 1789 | |||
| Others | Net Weight | 0.36Kg | |||
| Dimension | 178*61*24mm(L*W*H) | ||||
| Packing | / | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||||
 |
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CA7 | |
| Input wire | Black(L) White(N) Green(G) (3*18 AWG) |
| Output wire | 12V:Red(V+) Black(V-) (2*16 AWG) |
| 24V&48V:Red(V+) Black(V-) (2*18 AWG) | |
| Function switching wire | Yellow Gray and Blue White.(2*18 AWG) |
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 35 | |
| 25A | 45 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 45 |
| 13A | 58 | |
| 16A | 72 | |
| 20A | 89 | |
| 25A | 112 | |
Note：
①The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
②The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
Instruction
1. Confirm if the rated input voltage of the power supply is within the range of market voltage before use.
2. Pay attention to the distinction between the input and output lines of the power supply to avoid power damage or unnecessary safety accidents caused by connecting the reverse line.
3. The power supply cannot be stacked for installation (placement), and the installation distance between the power supply and the power supply should be greater than 10cm. Multiple power supplies should be installed in a narrow space, and the environmental temperature should be less than 55 ℃ during use; For example, distribution boxes, etc.
4. In order to extend the service life of the power supply, the power supply should be installed in an environment that is conducive to heat dissipation as much as possible;
5. As the ambient temperature increases, the power used by the power supply gradually decreases, and the lifespan of the power supply also gradually shortens.
6. Do not use under abnormal loads: Overloading can cause damage to the power supply, and extremely light loads can cause the power supply to malfunction.
7. To ensure safety and reduce interference, please ensure that the grounding wire is reliably grounded
8. If the LED driver do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phone call: 0086-595-27256889
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading .
Related Products

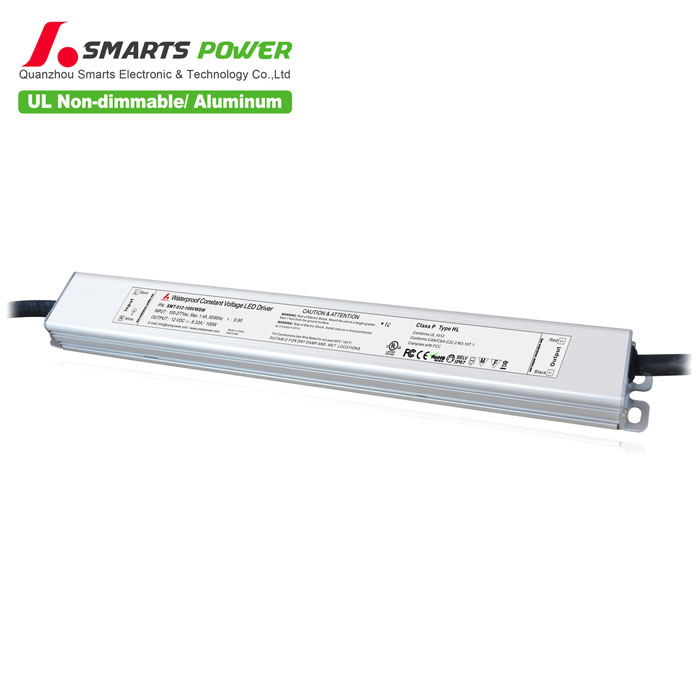

Ultra-thin size 100W constant voltage LED driver Waterproof grade IP67. Aluminum housing design with good heat dissipation. Suitable for outdoor LED lighting project installation. With 7-year warranty
