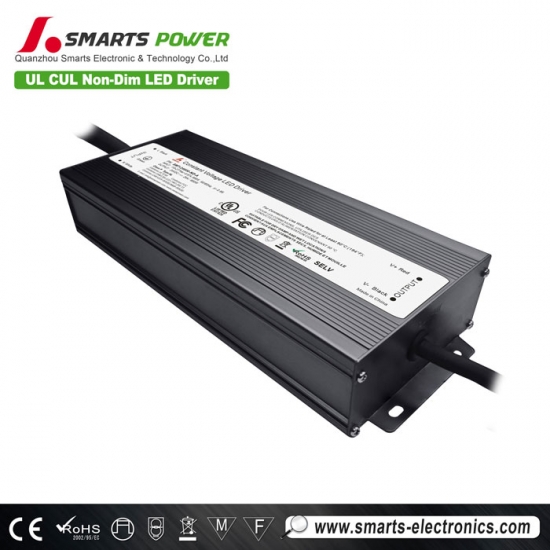

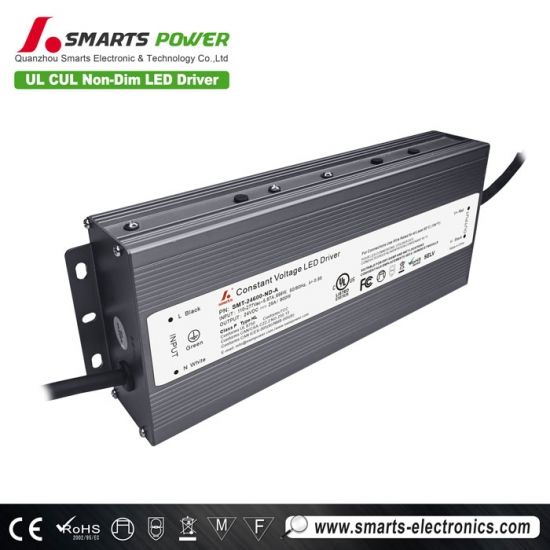

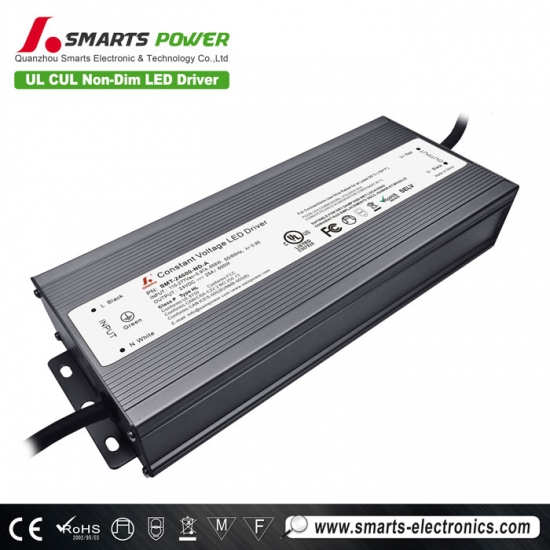

waterproof ip67 non dimmable 24 volt 600W constant voltage led driver for led lights outdoor
Smartspower's newly upgraded Non dimmable LED driver has built-in active PFC function, constant voltage working mode, and working efficiency up to 93%. It can provide stable and safe protection for lamps. It has a 7-year long warranty.
Specification
| Model | SMT-24600-ND-A | SMT-36600-ND-A | SMT-48600-ND-A | |
| Certificate | UL / FCC / Type HL/ Class P / SELV / CE / RoHS / REACH | |||
| Output | DC Voltage | 24V | 36V | 48V |
| Fine-tune Voltage | / | |||
| Voltage Tolerance | ±1.5% | ±1% | ±1% | |
| Voltage Regulation | ≤0.5% | |||
| Rated current | 25A | 16.67A | 12.5A | |
| Rated power | 600W | |||
| Load Regulation | ±1% | |||
| Input | Voltage Range | 110-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load | 0.99@120VAC 0.95@277VAC | |||
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | |||
| Efficiency(Typ.) @ full load |
≥91%@120VAC ≥93%@277VAC 85%@277VAC |
≥90%@120VAC ≥92%@277VAC |
≥90%@120VAC ≥92%@277VAC |
|
| AC Current (Max.) | 6A | |||
| Inrush Current (Typ.) | 52A,810us@50%Ipeak110VAC;76A,148us@50%Ipeak277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, recovers automatically after fault condition is removed | ||
| Over Load | ≥120% Constant current mode,recovers automatically after fault condition is removed | |||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after coolingg | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 90%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Safety & EMC | Safety standards | UL8750 (US) | ||
| Withstand voltage | I/P-O/P: 1.8KVAC | |||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Emission | FCC Part 15 Subpart B; | |||
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | |||
| Others | Net Weight | 1.98KG | ||
| Dimension | 284*109*48.5mm(L*W*H) | |||
| Packing | 380*305*160mm 5pcs /CTN | |||
| Notes | 1. 1.All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | |||
| 2. Under low input voltage, derating output is required to ensure a long life. | ||||

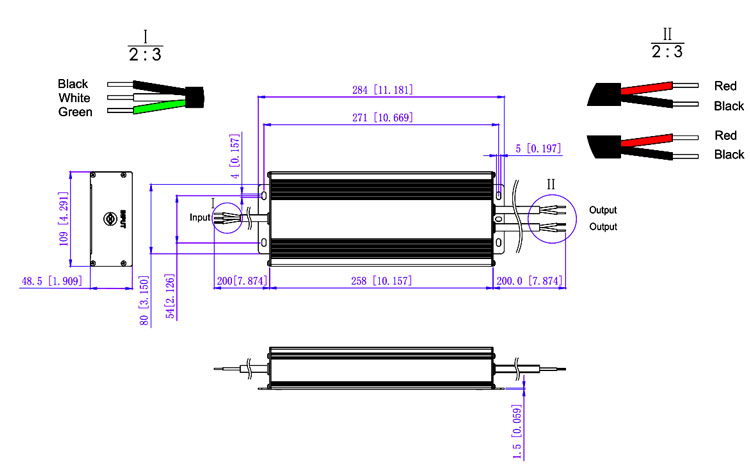

Mechanical Specification
| American wire gauge | |
| DT601 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire(24V&36V) |
Red(V+) Black(V-)(2*14AWG) Red(V+) Black(V-)(2*14AWG) |
| Output wire(48V) | Red(V+) Black(V-)(2*14AWG) |
| Remarks:Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged | |
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.

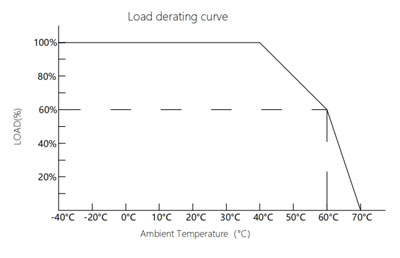

■ Derating Curve (output load vs TEMP.)
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.

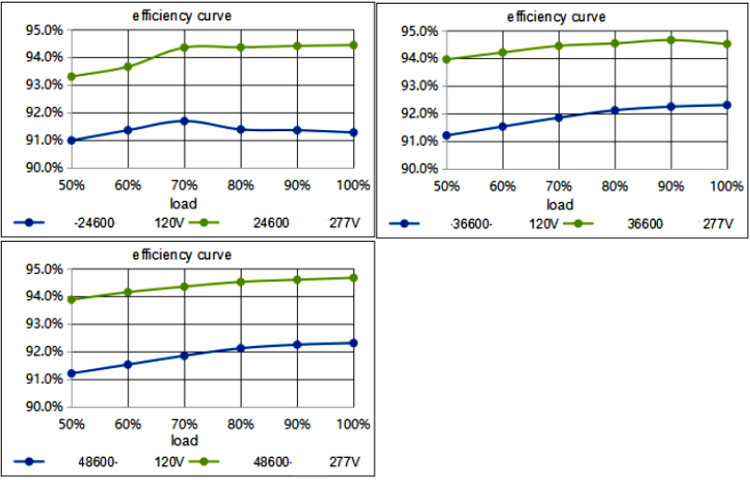

■ Efficiency Curve (efficiency vs output load)

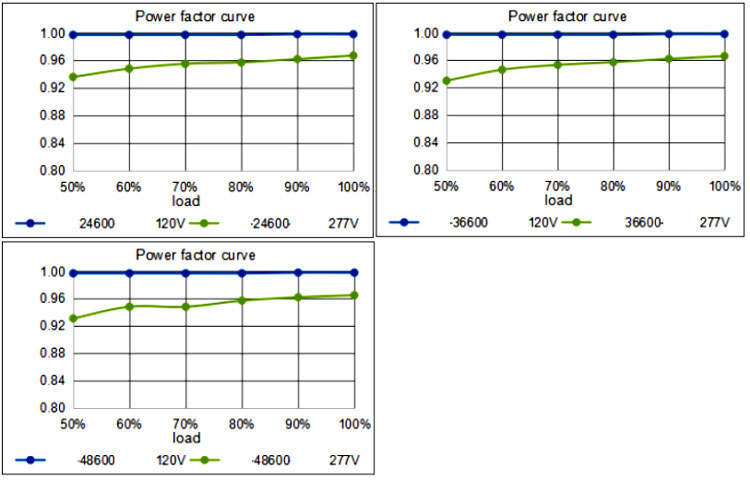

■ Power factor curve

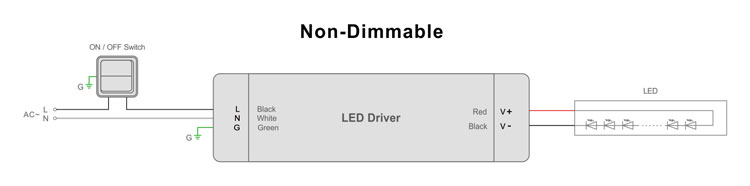

Connecting Diagramn
■ Instruction:
1.Confirm if the rated input voltage of the power supply is within the range of market voltage before use.
2.Pay attention to the distinction between the input and output lines of the power supply to avoid power damage or unnecessary safety accidents caused by connecting the reverse line.
3.The power supply cannot be stacked for installation (placement), and the installation distance between the power supply and the power supply should be greater than 10cm. Multiple power
supplies should be installed in a narrow space, and the environmental temperature should be less than 55 ℃ during use; For example, distribution boxes, etc.
4.In order to extend the service life of the power supply, the power supply should be installed in an environment that is conducive to heat dissipation as much as possible;
5.As the ambient temperature increases, the power used by the power supply gradually decreases, and the lifespan of the power supply also gradually shortens.
6.Do not use under abnormal loads: Overloading can cause damage to the power supply, and extremely light loads can cause the power supply to malfunction.
7.To ensure safety and reduce interference, please ensure that the grounding wire is reliably grounded
8. If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phone call: 0086-595-27256889
Related Products
|

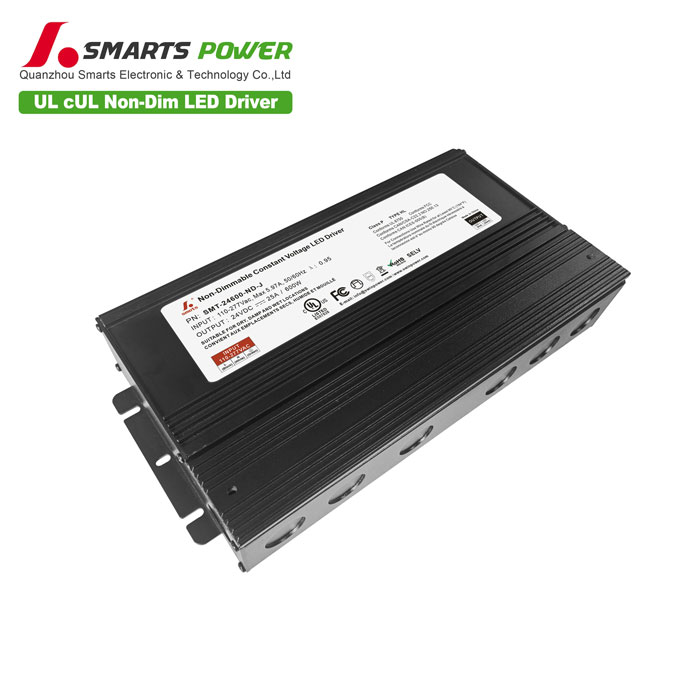

This non dimmable 600W LED driver is integrated with the junction box and has multiple protection functions such as short circuit, over temperature and overload. It has a constant voltage working mode and built-in active PFC function. It is suitable for installation in large supermarkets and residential lighting projects and has a 7-year warranty.
Mode：SMT-24600-ND-J intput voltage：100-277vac
Size : 280*140.2*50.2MM |
