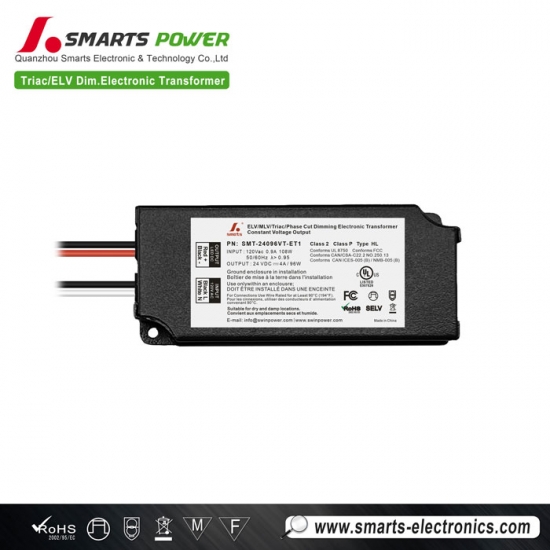

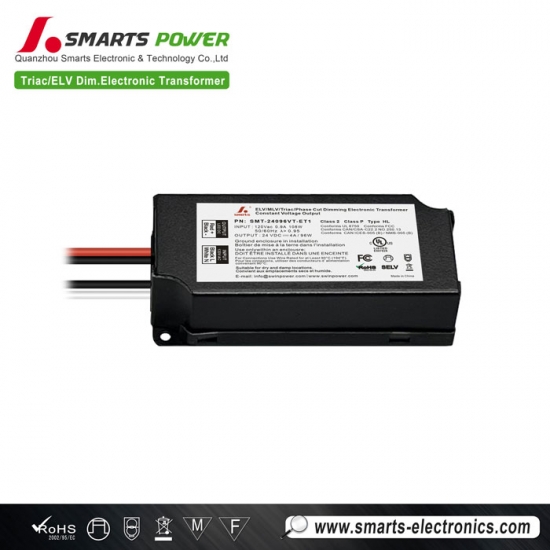

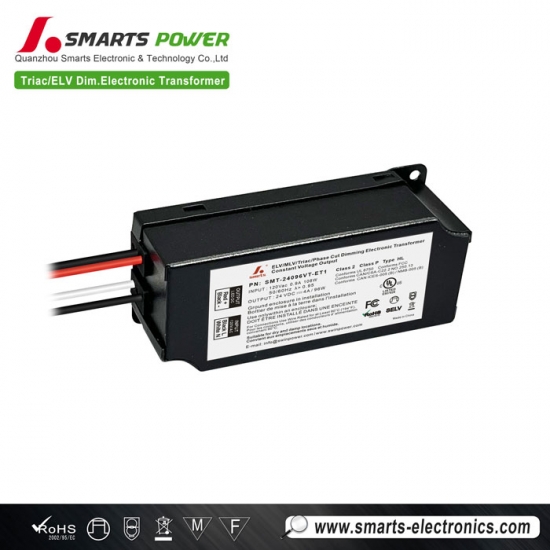

ul listed 96w 24v triac dimmable led Electronic Transformer for led lighting
This constant-voltage, TRIAC-dimmable LED electronic transformer features ultra-low minimum load requirements, operates flawlessly across a 20–100% load range, and is compatible with most TRIAC dimmers on the market, such as Lutron dimmers.
Specification
| Model | SMT-24096VT-ET1 | |
| Certificate | UL / FCC / ICES-005 / Class P / Class 2 / TYPE HL / SELV / ROHS / REACH | |
| Output | DC Voltage | 24V |
| Voltage Tolerance | ±1.5V | |
| Rated current | 4A | |
| Rated power | 96W | |
| Input | Voltage Range | 120VAC |
| Frequency Range | 50 / 60Hz | |
| Power Factor(typ.) | >0.95 | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Efficiency(Typ.) | 88%@120VAC | |
| AC Current(Typ.) | 0.9A | |
| Leakage Current | <0.5mA/120VAC | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| EMC Immunity | FCC/ICES do not request this test. | |
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ICES-005 Issue 5; ANSI C63.4a-2017 | |
| Others | Weight | 0.17KG |
| Dimension | 88.4*38.2*26.2mm(L*W*H) | |
| Packing | 240*230*200mm 50pcs/CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
| 2. Under the condition of low input voltage, the output must be derated to ensure long life. | ||
 |
 |
 |
 |
Mechanical Specification
1. Input with terminals Live Black(L) and Neutral White (N) wires to be connected AC;
2. Output LED SEC output Positive Red(LED+) , output negative Black(LED-). Connected to LED light.
Warm tips:
1. Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
2. Any other requests for, we can customize.
Dimming Operation
■ Instruction:
1. Confirm if the rated input voltage of the power supply is within the range of market voltage before use.
2. Pay attention to the distinction between the input and output lines of the power supply to avoid power damage or unnecessary safety accidents caused by connecting the reverse line.
3. The power supply cannot be stacked for installation (placement), and the installation distance between the power supply and the power supply should be greater than 10cm. Multiple power supplies should be installed in a narrow space, and the environmental temperature should be less than 55 ℃ during use; For example, distribution boxes, etc.
4. In order to extend the service life of the power supply, the power supply should be installed in an environment that is conducive to heat dissipation as much as possible;
5. As the ambient temperature increases, the power used by the power supply gradually decreases, and the lifespan of the power supply also gradually shortens.
6. Do not use under abnormal loads: Overloading can cause damage to the power supply, and extremely light loads can cause the power supply to malfunction.
7. To ensure safety and reduce interference, please ensure that the grounding wire is reliably grounded
8. If the LED driver do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phone call: 0086-595-27256889
Related Products

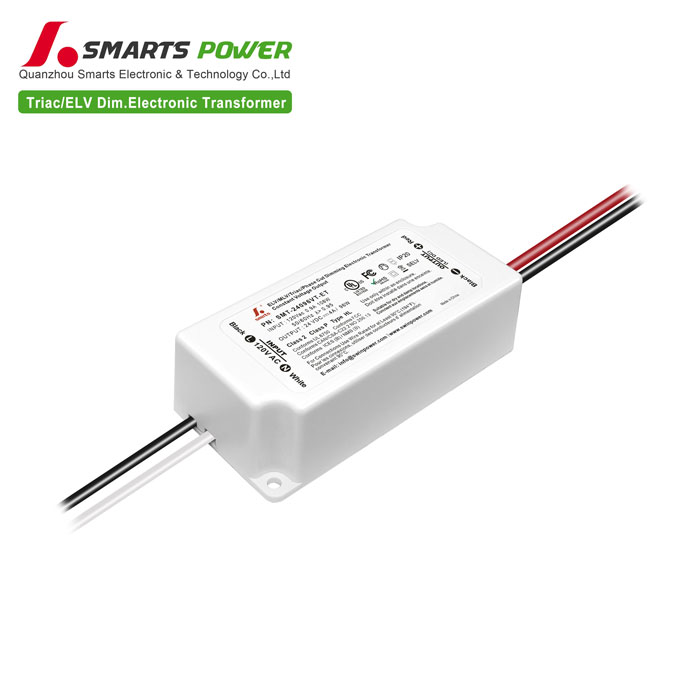

This TRIAC dimmable LED electronic transformer features a white plastic housing and an IP20 waterproof rating. With excellent heat dissipation, it is suitable for indoor LED lighting installations in confined spaces. It comes with a 5-year warranty.
Mode：SMT-24096VT-ET intput voltage：120vac
output voltage：24vdc |
