waterproof triac constant voltage dimmable electronic led driver power supply 12v 24v dv 180w for the outdoor
The new issued SMT-012-180VTHW2 is a dimmable constant voltage LED power supply with a waterproof rating of ip67 and a 7-year warranty，suitable for outdoor work in humid areas. It gets UL/CUL certification for use in Canada and USA.Our led light strip driver and flexfireleds led light strip have a very high degree of matching
Specifications
| model | SMT-012-180VTHW2 | SMT-024-192VTHW2 | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Rated current | 15.0A (3*5A) | 8.0A (2*4A) | |
| Rated power | 180W | 192W | |
| Voltage Tolerance | ±0.5V | ±0.5V | |
| Load Regulation | ±1% | ±1% | |
| Voltage Regulation | ±0.5% | ±0.5% | |
| Input | Voltage Range | 100~277V AC | |
| Frequency Range | 47~63HZ | ||
| THD(Typ.) @full load | <20% | ||
| Power Factor ( Typ.) | 0.98@120VAC 0.95@277VAC | 0.98@120VAC 0.95@277VAC | |
| FullLoadEfficiency(Typ.) | 86%@120V 88%@277VAC | 87%@120V 89%@277VAC | |
| AC Current(Typ.) | 2.2A@100VAC | 2.3A@100VAC | |
| Inrush Current (Typ.) | 19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC | ||
| Leakage current | ﹤0.50mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Over Loading | ≤120% constant current limiting, auto-recovery | ||
| Over voltage | ≦140VAC(90~135V) , ≦270VAC(170~265V) | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV) | ||
| Others | Net Weight | 1.7Kg | |

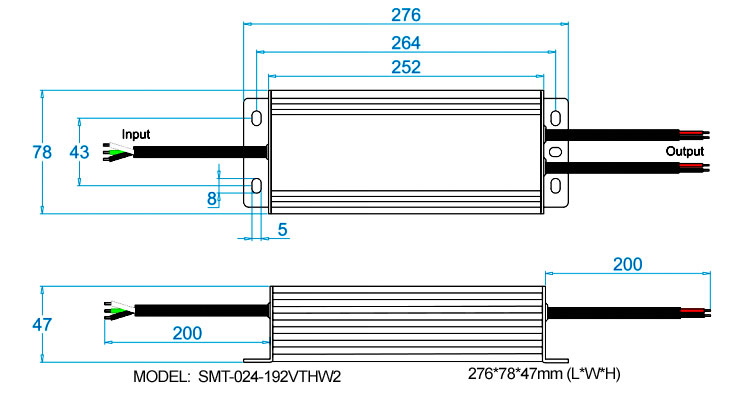

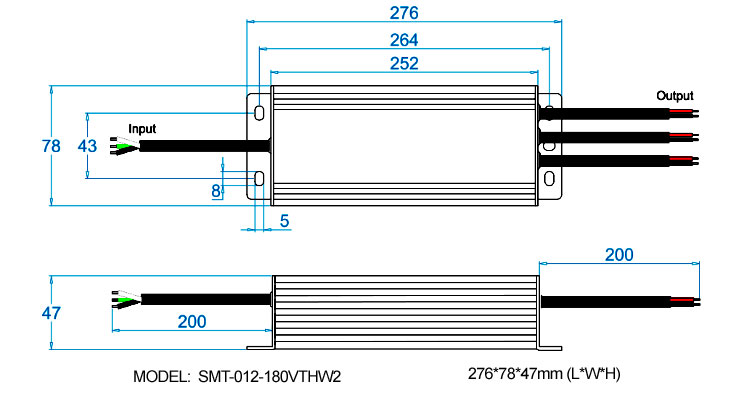

| Size | 276*78*47mm (L*W*H) | ||
| packing | 329*279*176mm , 10PCS/ctn | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
 |
 |
 |
 |
Mechanical Specification
Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-). Three groups output cables for SMT-012-180VTHW2 and two groups for SMT-024-192VTHW2
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■Dimming Operation
1) Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
2) The Pulse-Width Modulation (PWM) of output voltage can be adjusted by the input terminal of the AC phase line(L) by connection a phase/triac dimmer.
3) Compatible with Forward phase, leading edge, Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
4) please try to use the small power dimmers with power at least 1.5 times as the output power of the driver., which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.

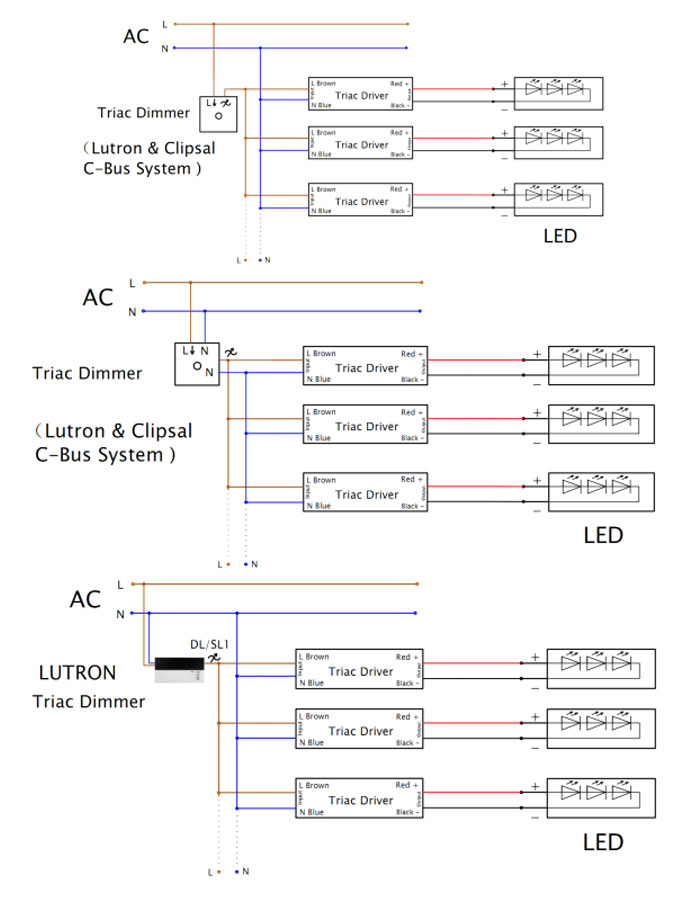

Dimming Operation and Connecting Diagram
Compatible Dimmer Type
12v 180w triac dimmable constant voltage led driver export to North America market with High reliability and save energy，Waterproof rating is IP67.Suitable for outdoor street lights/light strips/light strips
