Non-dimmable LED Driver

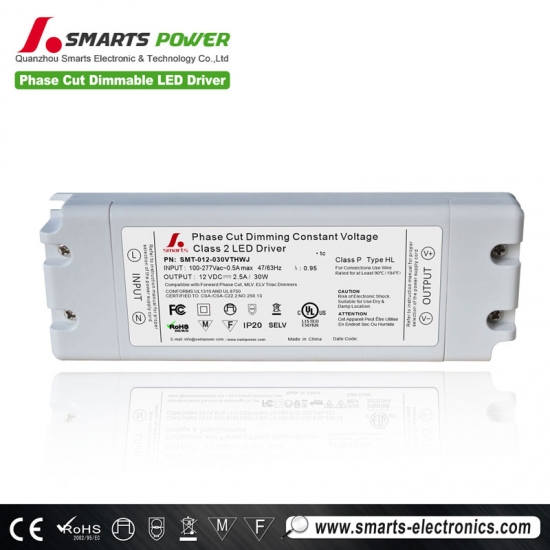

12v dc led driver triac dimmable power supply class 2 for led lighting

12V DC constant voltage hardwire driver, Class 2, Class P, Type HL 100-277V AC, 60Hz input, cULus Listed, damp locations, FCC compliant triac dimmable power supply, compatible with Forward phase, CRESTRON Reverse phase dimmer.CLW-DELVEX-P-W-S.


  • item no.:

    SMT-012-030VTHWJ
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12v
  • Output Current:

    2.5A
  • Working Mode:

    CV
  • Certification:

    UL, FCC, CE, ROHS
  • Warranty:

    7 years
inquiry now
product details

12v dc led driver triac dimmable power supply class 2 for led lighting


led strip power supply 12v 30w triac dimming is small and can be hidden under Asterisk Light;s cabinets, inside cabinets, behind the sofa, or under a desk. UL Listed ensures that it is a safe and long lasting product.


  Product parameters

model

SMT-012-030VTHWJ

SMT-024-030VTHWJ

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V

±0.5V



Adj. Voltage Range

10-13V

21.5-25.5V



Voltage Regulation

±0.5%



Rated current

2.50A

1.250A



Load Regulation

±1%



Rated power

30W

30W

Input

Voltage Range

100-277V AC



Frequency Range

4763HZ



Power Factor ( Typ.

0.[email protected]  0.[email protected]

0.[email protected]  0.[email protected]



Full Load EfficiencyTyp.

79%

79%



AC CurrentTyp.

0.5A/110VAC



Inrush Current Typ.

7.0A, 50%, 425us



Leakage current

<0.50mA

Protection

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:1.88KVac



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Weight

0.21Kg



Size

155*54*20mm (L*W*H)



packing

40PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

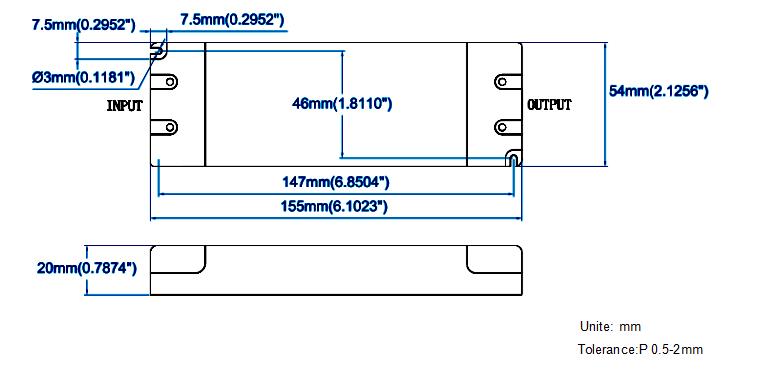

  Mechanical Specification

triac dimmable power supply

Input terminals "Black" and "White" to connect to AC L and N.

Output terminals "Red" to LED Positive side (+) , "Black"  to LED Negative side (-).

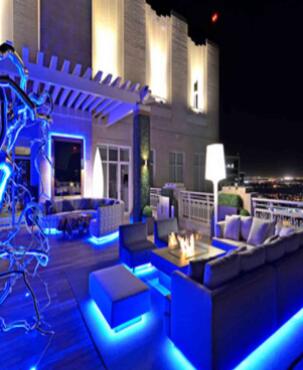

  Compatible Strip Lighting Type


LEDupdateds SMD high output led strips is to satisfy customers seeking a high brightness of the lighting and brilliant colors effects, the product characterized by the use of a three-chip TOP 3528 SMD LED as a light source work with led strip power supply 12v.

triac dimmable power supply


  Related Products

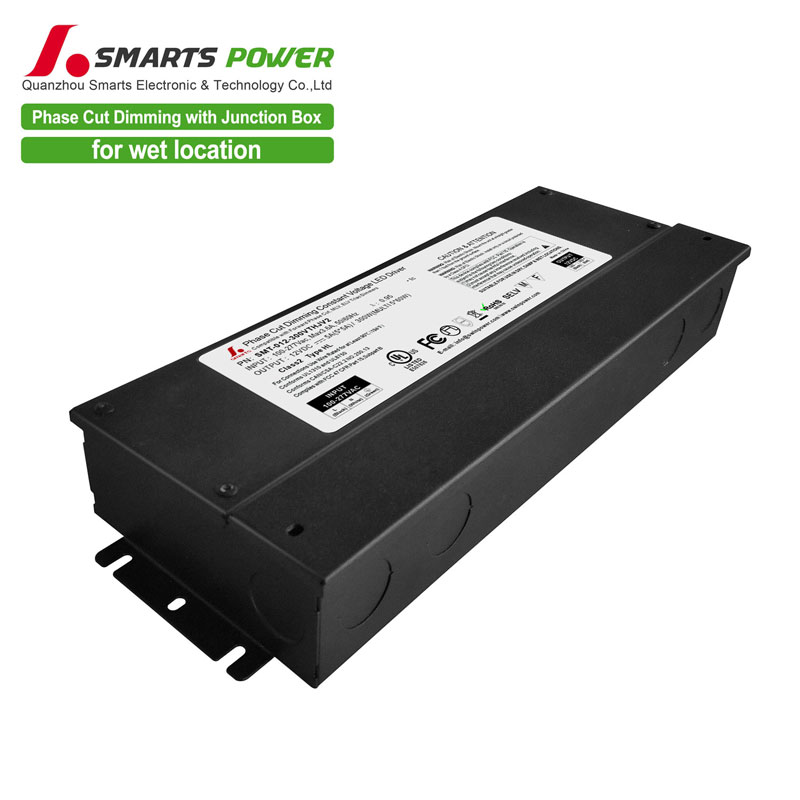

triac dimmable power supply12V triac dimmable power supply 300w with 5x 60W power outputs, suitable for powering a wide range of LED strip and linear lighting products
